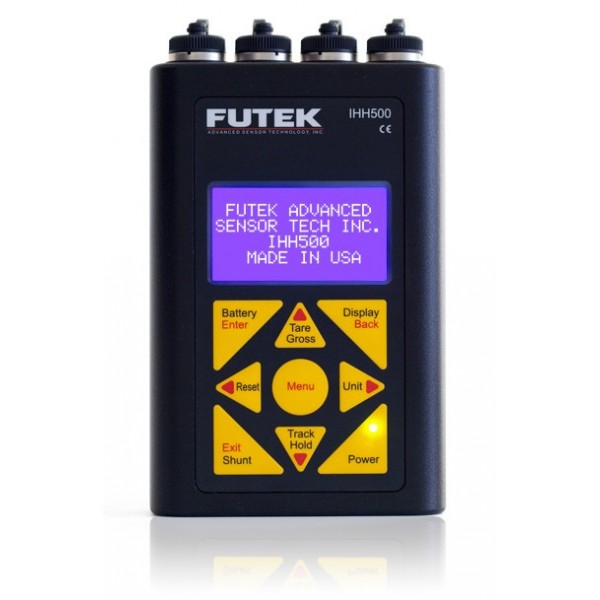

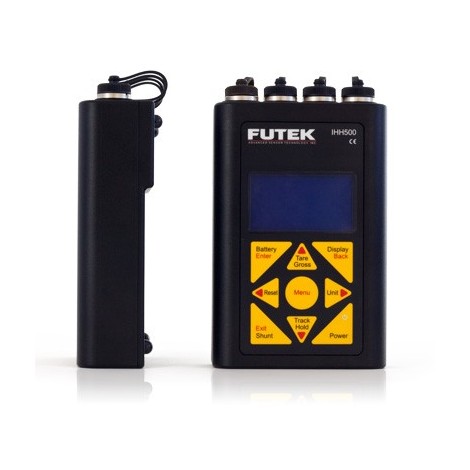

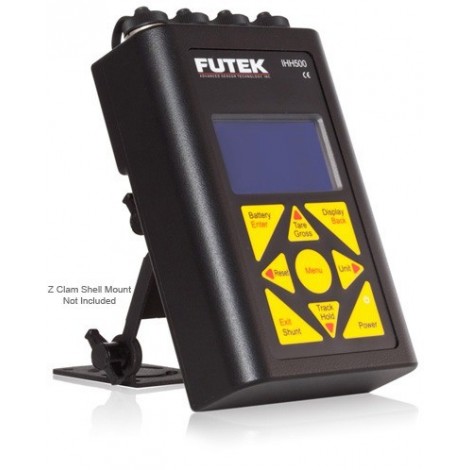

IHH500: Intelligent Digital Hand Held Display (USB output)
Intelligent Digital Handheld Display for Load Cells, Torque Sensors and Pressure Sensors.
5 to 4800 sample per second selectable rate.
Analog Voltage and Current Output.
14 Sensor Profile Storage.
TEDS & USB Output.
Dimension: 4” (101 mm ) X 1.7” (43 mm) X 6” (153 mm) - (L X W X H).
Log in to your account to display prices
Login
Login
Applications
> <
Automated Vertical Farming
What is Bolt Clamping Force?
Wire Crimp Pull Tester
Torsion / Axial Torque Testing
Press fit force determination of an assembly
Digital Bottle Cap Torque Tester
Precision Measurement Scale
Prone Stereotactic Biopsy
Shackle pin load cell
191 Engine Dynamometer Load Cell
Measuring mass flow with a load cell
Dual Tank Level Controller
Humanoid Robot Load Cell
341 Vise Clamping Force Test
342 Load Cell Torque Measurement
Agricultural Poultry Feeder
Dental Handpiece Torque Auditing
Bottle Dispensing and Weighing
Non-Magnetic Sensors Solutions
Vacuum Compatible Sensors
Fruit/Vegetable Penetrometer
Pill Press Force Verification
Sailing Ship Rigging Tension
UAV Launcher Force
Satellite Reaction Wheel Torque
Servo Motor Torque Control
Die-Attach Force Measurement
Ultrasonic Welding Clamp Force
Shark Bite Force Measurement
Reindeer Autopilot System
Exoskeleton for Paraplegics
Prosthetic Foot Emulator
Precision Wire Tensioner
Prosthetic Hip Fatigue Testing
Automotive Touchscreen Haptic Feedback
Medical Valve Sensors: TAVR Fatigue Testing
Rocket Engine Thrust Stand
Package Drop Test Machine
Hinge Fatigue Testing
Suspension System Performance Validation
Plastic Injection Molding Force Feedback
Stanford Solar Car Dyno
Bag Sealer Validation
OEM Torque Motor Test Stand
Valve Torque Testing
Robotic Leg Rehabilitation Device
Robotic Glove Rehabilitation Device
Industrial Automated Robotic Arm
Quadcopter Propellor Torque and Thrust Testing
USB Insertion/Extraction Motorized Test
Automotive Seat Durability Testing
Medical Guidewire Test
Wire Bond Testing
Spring Testing System
Wind Tunnel Testing
Catheter Torque Test
Trackpad / Touchpad Test Stand
Power Window Pinch Test
Laparoscopic Calibration
Catheter Force Measurement
Arbor Press Verification
Reliability Test Stand
Reliability Test Stand
Weighbridge Measurements
Landing Gear Drop Test
Catheter Track Force Test
Biomedical Research
Industrial Robotic Automation
Aircraft Control Column
Helicopter Cyclic Sensors
Batch Weighing
Medical Patient Lift
Multihead Weigher
Snow Shoes Testing
Automation Container Filling
Portable Crane Weighing
OEM Test Stand
Jet Parachute Deployment
Toggle Clamp
Syringe Test Stand
DNA Synthesis
Bite Force Measurement Study
Behavioral Phenotyping
Material Force Testing
Automated Capping Press
Tube Expansion Measurement
Tank Dispensing
Linear Test Stand
Silo Measurement
Hydraulic/Pneumatic Press Force
Medical Bag Weighing
Automotive Pedal Force Testing
Torque Verification/Calibration
Industrial Wire Tension Measurement
Helicopter Pedal Force Testing
Nut Runner Force/Torque
Bolt Fastening
Wire Tension Measurement
Motor Test Stand
Robotic Tactile Sensing
The IHH500 Hand Held Portable Digital Display is FUTEK’s solution that can be easily integrated to work with Load Cells, Torque Sensors and Pressure Sensors. The IHH500 has an input range of up to +/-500 mV/V. Beside the mV/V input, device accepts amplified output sensors in range of ± 12 VDC or up to 30 mA. It also has two individual relays and two Analog voltage and Analog current output. This device provides additional 24 VDC / 5VDC as power supply for sensors with built-in amplifier. FUTEK’s Hand Held display also supports TEDS which makes it easy to switch between different sensors. A high speed/ low noise/ high resolution (24 bits) ADC is integrated in the device to make it suitable for high accuracy measurements. The IHH500 uses rechargeable battery with long life time. This particular Digital Display also has the capability of displaying values onto a computer through a USB link.
IHH500
Intelligent Digital Handheld Display for Load Cells, Torque Sensors and Pressure Sensors.
5 to 4800 sample per second selectable rate.
Analog Voltage and Current Output.
14 Sensor Profile Storage.
TEDS & USB Output.
Dimension: 4” (101 mm ) X 1.7” (43 mm) X 6” (153 mm) - (L X W X H).
