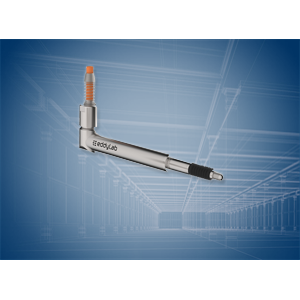

LVDT Position Sensor



Sensel Measurement  offers LVDT sensors with a measuring range from ± 1 mm (2 mm) up to ± 300 mm (600 mm). The eddylab product range comprises six different series. That ensures to have a suitable measuring system for every application.

Our areas of activity are automotive, military, medical, nuclear, aeronautic industries and laboratories.


The LVDTs are characterized by their exceptional ruggedness and reliability under harsh conditions, despite their high resolution and repeat accuracy.
Even demanding operating conditions as high temperature areas (up to 200° C), high pressures (up to 400 bar) or heavy vibration loads pose no problem for the LVDT sensors.

LVDT Linear Position Sensor

Active filters

SM-LVDT: Miniature Displacement Sensor

  • Micro-miniature LVDT is designed for high resolution position measurement in tight places (2.3 mm Diameter).
    Measuring range:     From 0 to 1, 2.5, 5, 7, 8.5 mm.
  • Input voltage: 2.3 Vrms max.
  • Linearity deviation error: 2%.
  • Input Frequency: 5 kHz (nominal).
  • Protection against electromagnetic and electrostatic shielding.



See more

SM-LVDT-SP: Micro-miniature spring-loaded LVDT

  • Micro-miniature spring-loaded LVDT  designed for high resolution position measurement in tight places (2.3 mm Diameter).
    Measuring range: +/-     1, 2.5, 5mm.
  • Input voltage: 2.3 Vrms max.
  • Linearity deviation error: 2%.
  • Input Frequency: 5 kHz (nominal).
  • Protection against electromagnetic and electrostatic shielding.



See more

SM - EDDYLAB : LVDT inductive sensors from 2, ..., 200mm.

Ranges : 2 - 200 mm.
Type : push rod guided, push rod unguided, spring loaded.
Linearity max.: ±0.30 %, opt. ±0.20 % / ±0,1 %.
Output : AC, 0...10 V, ±10 V, 0...5 V, ±5 V, 4...20 mA, 0...20 mA.
Protection class : IP67, (opt. IP68).
Operating temperature :-40 °C...+120 °C, opt. +150 °C / +200 °C.

See more

SL - EDDYLAB : LVDT inductive sensors from 10, ..., 600mm.

Ranges : 10 - 600 mm.
Type : free core, push rod guided/ unguided, rod end bearings
Linearity max.: ±0.30 %, opt. ±0.20 % / ±0,1 %.
Output : AC, 0...10 V, ±10 V, 0...5 V, ±5 V, 4...20 mA, 0...20 mA.
Protection class : IP67, (opt. IP68).
Operating temperature :-40 °C...+120 °C, opt. +150 °C / +200 °C.

See more

SLT - EDDYLAB : LVDT inductive sensors with spring loaded and air actuated versions from 10, ..., 300mm.

Ranges : 10 - 300 mm.
Type : spring loaded mechanism, pneumatic version PR1: pressurized air extends push rod, pneumatic version PR2: pressurized air retracts push rod.
Linearity max.: ±0.30 %, opt. ±0.20 % / ±0,1 %.
Output : AC, 0...10 V, ±10 V, 0...5 V, ±5 V, 4...20 mA, 0...20 mA.
Protection class : IP65, (opt. IP67).
Operating temperature :-40 °C...+120 °C, opt. +150 °C / +200 °C.

See more

SLX - EDDYLAB : LVDT inductive sensors from 10, ..., 300mm.

Adapted to the environmental conditions in pharmceutical, medical and food industry applications.
Ranges : 10 - 300 mm.
Type : free core, push rod guided/ unguided, rod end bearings.
Linearity max.: ±0.30 %, opt. ±0.20 % / ±0,1 %.
Output : AC, 0...10 V, ±10 V, 0...5 V, ±5 V, 4...20 mA, 0...20 mA.
Protection class : IP68 / IP69K.
Operating temperature :-40 °C...+150 °C / Opt. +200 °C.

See more

SM - HYD : LVDT inductive Position Transducer

Designed for integration into hydraulic and pneumatic cylinders or servo valves.
Ranges : 2 - 180 mm.
Pressure resistant up to 400 bar.
Screw flange M18x1,5 / M30x1,5 or plug-in flange Ø18.
Type : free core, push rod unguided.
Linearity up to ±0,1 %.
Output : AC, 0...10 V, 4...20 mA.
Protection class : IP67, (opt. IP68).
Operating temp. :-40 °C...+120 °C, opt. +150 °C

See more

SM - HYD-F18: Capteur pour vérins hydrauliques / pneumatiques, servo vannes.

Designed for integration into hydraulic and pneumatic cylinders or servo valves.
Ranges : 2 - 200 mm.
Pressure resistant up to 150 bar.
M18x1,5 mm integral thread.
Type : push rod guided, push rod unguided, spring loaded.
Linearity up to ±0,1 %.
Output : AC, 0...10 V, ±10 V, 0...5 V, ±5 V, 4...20 mA, 0...20 mA.
Protection class : IP67, (opt. IP68).
Operating temp. :-40 °C...+120 °C, opt. +150 °C.

See more

SM-F14 : LVDT inductive Position Transducer

Designed for integration into hydraulic and pneumatic cylinders or servo valves.
Ranges : 2 - 10 mm.
Pressure resistant up to 150 bar.
M14x1 mm thread or ø 12 mm clamping diameter.
Type : free core, push rod guided/ unguided, spring loaded.
Linearity up to ±0,1 %.
Output : AC, 0...10 V, 4...20 mA.
Protection class : IP67, (opt. IP68).
Operating temp. :-40 °C...+120 °C, opt. +200 °C.

See more
