Settlement Cell measures settlement and heave in soil and rockfill. Using measurement data from the settlement cell can help to control further displacement.
Settlement Cell/Transducer 15 metres 30 metres / Range 150kPa 300kPa
Material 316 Stainless Steel
Accuracy ±0.1% full scale
Linearity ±0.1% full scale
Resolution1 0.025% full scale
Over range 200% full scale
Diaphragm displacement <0.001cm³
Temperature range -20 to +80°C
Excitation method Pluck and sweep
Operating frequency 1600 to 3000Hz

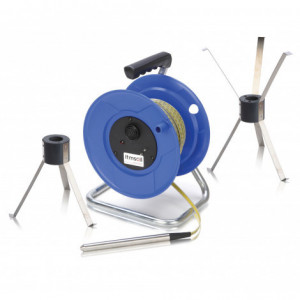

Digital Hydrostatic Profile Gauge
Range +1m to -3.5m
Resolution 1mm
Accuracy ±10mm
Repeatability 2 ±10mm
Operating temperature -10 to +50°C
Probe
Length 360mm
Diameter 28.5mm
Material Stainless Steel
Tubing
Tube lengths 50m | 100m | 200m
Tube diameter 12mm
Graduation interval 1m
Graduation marker material Stainless Steel
