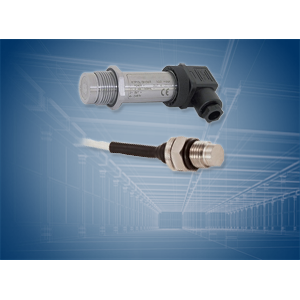

Flush diaphragm pressure transducer
Flush diaphragm pressure transmitters for relative, absolute and vacuum measures from 1 bar to 1000 bar.
Flush diaphragm pressure transmitters are born to solve problems in food industrial sectors, are now commonly used in those productive processes where pressure or level measurements of dense substances are required.
Protruding diaphragm enable to perform an accurate cleaning of the sensor and to prevent from forming of residuals on the measuring area.
The pressure transmitters of this series are characterized by high reliability and long-term stability. High mechanical strength, suitable for dynamic applications.
The sensitive part in contact with pressure, is entirely made of 17-4 PH stainless steel resistant to corrosion.
Ranges from: 0...50 bar to 0...1000 bar.
Accuracy: ±0.1%.
Complete range of voltage/current outputs.
Operating temperature range: -40...+105°C.
Protection rating: IP65 / IP67.
Stainless steel construction.
- Miniature Flush Mount Diaphragm.
- Capacities : 0 to 15, 50, 200, 500, 700 bars.
- Rated output : 2 mV/V.
- Non Linearity : 0.4%.
- Cable output: 1.5m.
- Weight: 10 gr (without cable).
Miniature Flush Mount Diaphragm Pressure transducers for relativen, absolute and vacuum measures.
Nominal pressures from 10 bar to 1000 bar.
Output 2mV/V.
Linearity and hysteresis 0,50%.
Protection IP65
Process coupling FLANGE
Cable Output.
High reliability and long-term stability.
Flush Mount Diaphragm Pressure transducers for relative, absolute and vacuum measures.
Nominal pressures from 1 bar to 50 bar.
Output 4-20mA, 10V or 5Volt.
Linearity and hysteresis 0,5%.
Protection IP65.
Process coupling 3/4" GAS Male.
