Multi-Axis Inclinometer
Sensel Measurement commercializes and designs a large range of dual axis inclinometers intended for a lot of applications.
We offer a large range of measurement from ±2° to ±80°, with linearity below 0.2% of the measurement range.
Our sensors are delivered with their calibration sheet, on which you will find linearity and the value of the output signal on the whole measuring range.
The housing cases include up to two single axis sensors from the SM-N and SM-NG series.
They are built up on request, allowing you to choice and calibrate the outgoing signal according to the tilt range needed by your application.
- Biaxial Wireless sensor measurement.
- Die-cast aluminium.
- IP 67 Protection.
- Accuracy: ±0.003° for ±2.5°, ±5.0°, and ±10° range; ±0.01° for ±15° range.
- High long term stability.

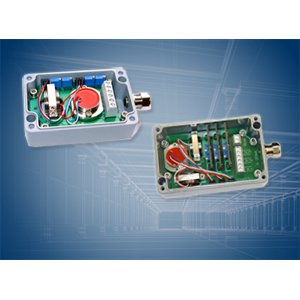

Pressure die cast aluminium sensor housing, 2-axis Inclinometer (SM-N or SM-B), for measuring inclinations and/or accelerations.
Output signal 4-20mA.
Degree of Protection IP 65.
Sensor and signal conditioner electrically isolated from housing.
Temperature drift compensation.
Insensitive of interference frequencies.
- 2-axis Inclinometer, for measuring inclinations with output signal 0-5V.
Robust pressure die cast aluminim housing compatible with SM-N series.
Degree of Protection IP 67. - Temperature drift compensation.
- Insensitive of interference frequencies.
Extra robust, pressure-, saltwater- and corrosion-proof stainless steel housing integrated sensor (SM-N & SM-NG, SM-B).
Measuring 2 axis of acceleration or inclination, Output signal 0-5V or 4..20mA.
Degree of Protection IP 68.
Sensor and signal conditioner electrically isolated from housing.
Measuring range : ±90°
Accuracy : ±0.05°
Resolution : 0.01°
Screen : LCD 40x32mm
Autonomy : 8h of continuous use for 3h of charge
Operating temperature : 10 to 70°C
Humidity resistance : 85%φ
Protection class : IP54
Weight : 125g
Dimensions : 83x53x19.2mm
Materials : Aluminum alloy
