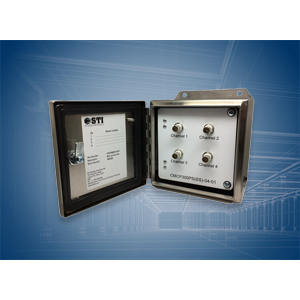

Junction Boxes

Wide variety of BNC and Switch Boxes offer a local access point for all of a machine's sensors. The BNC and Switch Boxes are typically installed within close proximity of the machine being monitored.
Individual BNC Junction Boxes provide a miniature quick connect connector (BNC) for each sensor, often accelerometers.
Switchable BNC Junction Boxes provide a BNC Output, a MS 5015 2-Pin Connector and a rotary switch for a set of up to twelve sensors.
Junction Boxes

Active filters

Connects up to 4 sensors
Compatible with 4 or 6-wire sensors
Connector: Screw Terminals, 14-22 AWG
Material: Aluminum
Dimensions: 98 x 125 x 57 mm
Weight : ~600g
Protection: IP65
Optional ATEX version available

See more
  • Connects up to 4 sensors
  • Individual BNC outputs
  • Maximum voltage: 240V
  • Maximum current: 5A
  • Input Connectors: Screw Terminals, 14-22 AWG
  • Output connectors: 4 insulated BNC port (female)
  • Operating temperature : -40 to +105°C (-40 to 221°F)
  • Material: Polyamide
  • Weight: 119g
  • Dimensions: 68x45x128mm
  • Din rail mounted (TS32/TS35)
See more
  • Connects up to 18 sensors
  • Individual BNC outputs
  • Compatible with dual output sensors
  • Engraved channel identification
  • Operating temperature : -55 to +85°C (-67 to 185°F)
  • Material :
    - Compression molded fiberglass (CMCP 300FG)
    - 14 AWG 304 Stainless Steel (CMCP 300SS)
    - 14 AWG Painted Steel ANSI 61 Polyester Powder Coating (CMCP 300PS)
  • Door closure :
    - Fiberglass : Quick lock
    - Steel: 3/4 turn twist lock
  • Connector: Screw Terminals, 14-22 AWG
  • Weight:
    - 1 to 4 channels: 2.27 kg
    - 5 to 8 channels: 3.63 kg
    - 9 to 12 channels: 4.54 kg
    - 13 to 18 channels: 8.62 kg
  • Protections: IP67, resistant to fluids and corrosion
See more
  • Connects up to 4 sensors
  • Individual BNC outputs
  • Indoor use only
  • Material: Polycarbonate
  • Connector: Screw Terminals, 14-22 AWG
  • Weight:
  • - 2 channels: 255g
  • - 4 channels: 312g
  • Protection: IP67, fluid and corrosion resistant
See more
  • Connects up to 48 sensors
  • Individual BNC outputs
  • Compatible with dual output sensors
  • Engraved channel identification
  • 1 button for 12 channels
  • Button type: Make before break
  • Operating temperature : -55 to +85°C (-67 to 185°F)
  • Material :
    - Compression molded fiberglass (CMCP 310FG)
    - 14 AWG 304 Stainless Steel (CMCP 310SS)
    - 14 AWG Steel painted ANSI 61 polyester powder coating (CMCP 310PS)
  • Door closure :
    - Fiberglass : Quick lock
    - Steel: 3/4 turn twist lock
  • Connector: Screw Terminals, 14-22 AWG
  • Handle (optional): Nylon / Galvanized steel (IP68)
  • Protection: IP66
See more
  • Connects up to 8 sensors
  • Individual BNC outputs
  • Compatible with dual output sensors
  • Engraved channel identification
  • Button type : Make before break
  • Operating temperature : -55 to +85°C (-67 to 185°F)
  • Material : Anodized aluminum
  • Connector :
    - BNC-F port (Output)
    - 8 BNC-F ports (Input model CMCP 310PSB-BNC)
    - 8 connection terminals (Input model CMCP 310PSB-TB)
  • Dimensions : 111.7 x 106.7 x 50.8mm
  • Weight : 227g
  • Protection : IP54
See more
  • Connects up to 6 triaxial sensors
  • Individual BNC outputs
  • Engraved channel identification
  • Input Connectors: Screw Terminals, 14-22 AWG
  • Output Connectors: 4-pin Quick-Lock Connector
  • Operating temperature : -50° to 82° C (-58° to 180° F)
  • Material :
    - Compression-molded fiberglass
    - 14 AWG 304 Stainless Steel
    - 14 AWG Steel painted ANSI 61 polyester powder coating
  • Door closure: Quick lock
  • Dimensions :
    - Model 2 to 4 outputs 19.05 x 17.78 x 10.16 cm
    - 6 outputs model 24.13 x 17.78 x 8.89 cm
See more
  • Connects up to 16 triaxial sensors
  • Engraved channel identification
  • 1 button for 4 channels
  • Button type: Make before break
  • Operating temperature : -55 to +85°C (-67 to 185°F)
  • Material :
    - Compression molded fiberglass (CMCP 315FG)
    - 14 AWG 304 Stainless Steel (CMCP 315SS)
    - 14 AWG Steel painted ANSI 61 polyester powder coating (CMCP 315PS)
  • Door closure :
    - Fiberglass : Quick lock
    - Steel: 3/4 turn twist lock
  • Connector: 3 jack ports (female) marked X, Y, Z
  • Clamps (optional): Nylon/ Galvanized steel
  • Protection: IP66
See more
  • Connects up to 12 sensors
  • Individual BNC outputs
  • Input Connectors: Screw Terminals, 14-22 AWG
  • Output Connectors: 12 insulated BNC port (female)
  • Working temperature : -40°C to +60°C (-40°F to 140°F)
  • Material: Polycarbonate
  • Dimensions: 52.5mm x 98.8mm x 79.2mm
  • Mounted on 35mm Din rail
See more
