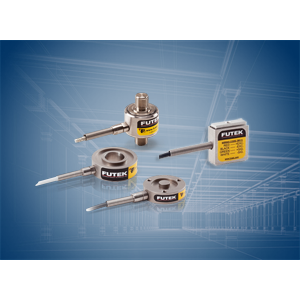

Miniature Load cell
Discover our large range of miniature compression load cells, allowing to measure load from ± 2Kg to ± 22 T with an excellent accuracy.
3 kinds of miniature compression Load cell :
- « Button » miniature Load cell.
- « Force washers » or « Donut Load cell ».
- « Column » Load cell.
Ultra light miniature tension copression load cell.
Capacities : +/- 1000g, 5, 10, 25 Lb.
Rated output : 1 or 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
Protection IP64.
Miniature S Beam Load Cell.
Capacities : +/-10g, 20g, 50g, 100 g, 250 g, 500 g, 2 Lb, 5 Lb, 10 L, 25 Lb, 50 Lb, 100 Lb.
Rated output : ± 2 mV/V.
Non Linearity : 0.1%.
Overload protection.
Material : Aluminium (Up to 10 Lb) then stainless steel.
Subminiature Load Cell Button.
Capacities : 0 to 5, 10, 25, 50 Lb.
Rated output : 1.5 - 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
Force Washer Load Cell.
Capacities : +/- 2000 Lb.
Rated output : 3 mV/V.
Central hole diameter : 1/4" [6.35 mm].
Weight : 30g.
Material : Stainless Steel.
Cable output.
Compression Donut Load Cell.
Capacities : 0 to 50,100, 250, 500, 1000 Lb.
Variable inside diameter to specify : 1/8, 3/16, 1/4, 5/16, 3/8''.
Rated output : 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
Teflon Cable output.
Miniature S Beam Load Cell.
Capacities : +/- 250 g, 500 g, 2 Lb, 5 Lb, 10 L, 25 Lb, 50 Lb, 100 Lb.
Rated output : ± 2 mV/V.
Non Linearity : 0.1%.
Overload protection.
Material : 17-4 PH stainless-steel body, anodized cover
Capacities : +/- 250 g, 500 g, 2 Lb, 5 Lb, 10 L, 25 Lb, 50 Lb, 100 Lb.
Rated output : ± 2 mV/V.
Non Linearity : 0.1%;
Overload protection.
Material : Stainless steel.
Detachable 7 Pin FUTEK Receptacle.
Integrated IEEE1451.4 TEDs chip and PT-1000 temperature sensor.
Heat treated stainless-steel flexure design for optimal fatigue life and off center loading capabilitie.
- Measuring range : 50 - 100 – 250 – 500 kg, 1000 - 2500 - 3500 - 5000 kg
- Sensitivity: 2 mV/V, 4..20 mA
- Linearity: 0.2%.
- Repeatability: 0.05%.
- Operating Temperature : -20 to +70°C
- Storage temperature: -20 to +80°C
- Protection: IP67
- Material: Stainless steel
Subminiature Threaded Load Button.
Capacities : 0 to 10, 25, 50 Lb.
Rated output : 1.5 - 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
Cable output.
- S-Beam tension compression Load Cell Submersible.
- Capacities : 100 g, 250 g, 1 Lb, 2 Lb, 5 Lb, 10 Lb, 25 Lb, 50 Lb, 100 Lb.
- Rated output : 2 mV/V.
- Non Linearity :1, 2, 3%.
- Material : Aluminium (Up to 10 Lb) then stainless steel.
-
- Miniature S Beam Load Cell. (male thread).
- Capacities : +/-100 g, 250 g, 500 g, 2 Lb, 5 Lb, 10 L, 25 Lb, 50 Lb, 100 Lb.
- Rated output : ± 2 mV/V.
- Non Linearity : 0.1%.
- Overload protection.
- Material : Aluminium (Up to 10 Lb) then stainless steel.
Subminiature Threaded Load Button.
Capacities : 0 to 10, 25, 50 Lb.
Rated output : 1.5 - 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
Cable output.
Capacities : 0 to 100, 150, 250 Lb.
Rated output : 1.5 - 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
Tension Compression Universal Load Cell.
Capacities : +/- 25, 50, 100, 250, 500 Lb.
Rated output : ± 1, 2 mV/V.
Non Linearity : < 0.25 %.
Material : Aluminum, Stainless Steel.
Connector output.
Tension & Compression Load Cell (Miniature/Inline Threaded).
Capacities : 50, 100, 250, 500, 1000, 3000, 4000, 5000, 10 000 Lb.
Rated output : 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
Conductor Braided Shielded Clear PVC
- Subminiature Load Cell Button.
- Capacities : 0 to 25, 50, 100, 250, 500, 1000 Lb.
- Rated output : 1.5 - 2 mV/V.
- Non Linearity : 0.5%.
Material : Stainless steel.
Low Profile Tension & Compression Load Cell.
Capacities : +/- 200, 300, 500, 1000 Lb.
Rated output : ± 2 mV/V.
Non Linearity : < 0.1%.
Material : Aluminum.
Connector output.
Compression Donut Load Cell.
Capacities : 0 to 100, 250, 500, 1000, 2000, 3000, 5000 Lb.
Variable inside diameter to specify : 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8''.
Rated output : 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
Teflon Cable output.
- Measuring range : 1, 2, 5, 10 kN
- Sensitivity: 2 mV/V ( Ouput +/-5V ou +/-10V in option)
- Linearity: 0.05%.
- Repeatability: 0.01%.
- Operating Temperature : -20 to +70°C
- Storage temperature: -20 to +80°C
- Protection: IP67
- Connection system: M12 5-pin
- Material: Stainless steel
- Thread diameter: M12 10.25mm
- Weight : 280g
- Measuring range : 1, 2.5, 5, 10 N
- Sensitivity: 2 mV/V (Option +/-5V or +/-10V)
- Linearity: 0.05%.
- Repeatability: 0.01%.
- Operating Temperature : -20 to +70°C
- Storage temperature: -20 to +80°C
- Protection: IP67
- Connection system: M12 5-pin
- Material: Stainless steel
- Thread: M12
- Weight : 280g
Ultra light miniature tension copression load cell.
Capacities : +/- 250, 250, 1000 Lb.
Rated output : 1 or 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
Rod End Tension/Compression Load Cell.
Capacities : +/- 1000, 2000, 3000 Lb.
Rated output : ± 2 mV/V.
Non Linearity : 0.5 %.
Material : Stainless steel.
Cable output.
Subminiature Load Cell Button.
Capacities : 0 to 25, 50, 100 Lb.
Rated output : 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
Cable output.
- Subminiature Load Cell Button.
- Capacities : 0 to 100, 250, 500, 1000, 2000, 2500 Lb.
- Rated output : 2 mV/V.
- Non Linearity : 0.5%.
Material : Stainless steel.
Conductor Braided Shielded Teflon Cable. - -
Load Button Load Cell.
Capacities : 0 to 5000, 10 000 Lb.
Rated output : 1.5 - 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
Conductor Braided Shielded Teflon Cable.
Capacities : 0 to 2, 3, 5, 7.5, 10, 20, 30 KLb.
Rated output : 2 mV/V.
Non Linearity : 1%.
Material : Stainless steel.
Teflon Cable output.
Tension & Compression Miniature Load Cell.
Capacities : +/- 0.25, 0.5, 1, 2, 5, 10, 25, 50, 100 Lb.
Rated output : ± 2 mV/V.
Non Linearity : < 0.05 %.
Material : Aluminum.
Connector output.
Bending Beam Load Cell.
Capacities : 0.25, 0.5, 1, 2, 5, 10, 25 Lb.
Rated output : 1 mV/V.
Non Linearity : 0.05%.
Tension & Compression Parallelogram Load Cell.
Capacities : +/- 10 Lb.
Rated output : ± 2 mV/V.
Non Linearity : 0.2%.
Safe Overload.
Material: Aluminum and Stainless Steel.
Tension & Compression Parallelogram Load Cell.
Capacities : +/- 0.25 ... 1 Lb.
Rated output : ± 2 mV/V.
Non Linearity : 0.05%.
Safe Overload.
Material: Aluminum and Stainless Steel.
Tension & Compression Parallelogram Load Cell.
Capacities : +/- 2 Lb, 5 Lb, 10 L, 25 Lb, 50 Lb, 100 Lb, 200 Lb, 500 Lb.
Rated output : ± 2 mV/V.
Non Linearity : 0.02% or 0.06%.
Safe Overload.
Material: Aluminum and Stainless Steel.
Mini Beam Load Cell (Single Point).
Capacities : +/- 5 Lb, 10 L, 50 Lb, 100, 150 Lb.
Rated output : ± 2 mV/V.
Non Linearity : 0.05%.
Safe Overload.
Material: Aluminum.
3 meters cable output.
Miniature Load cell for the measurement of static and dynamic loads in compression and tension.
Measuring Range: +/- 1, 2 5 10, 25, 50 Kg.
Overload protection (up to 5 Kg).
Overload protection (up to 5 Kg).
Rated Output: ± 2 mV/V.
Non linearity: 0.03%.
Degree of protection:
Degree of protection: IP20.
Material: Aluminum.
Cable output: 3 m.
Subminiature Load Cell Button.
Capacities : 0 to 100, 150, 250 Lb.
Rated output : 1.5 - 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
