LCM200: Miniature Tension and Compression Load Cell from +/- 250 Lb, ... , +/- 1000 Lb
Ultra light miniature tension copression load cell.
Capacities : +/- 250, 250, 1000 Lb.
Rated output : 1 or 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
Log in to your account to display prices
Login
Login
Applications
> <
Sensors used in 3D Printers
Orion Deployment Mechanism
Prone Stereotactic Biopsy
Gym Workout Training Weight Sensors
Sailing Ship Rigging Tension
Die-Attach Force Measurement
Prosthetic Foot Emulator
Precision Wire Tensioner
Suspension System Performance Validation
Robotic Glove Rehabilitation Device
Biomedical Research
Jet Parachute Deployment
Industrial Wire Tension Measurement

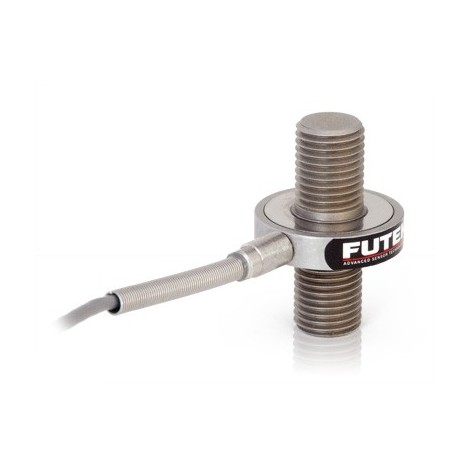

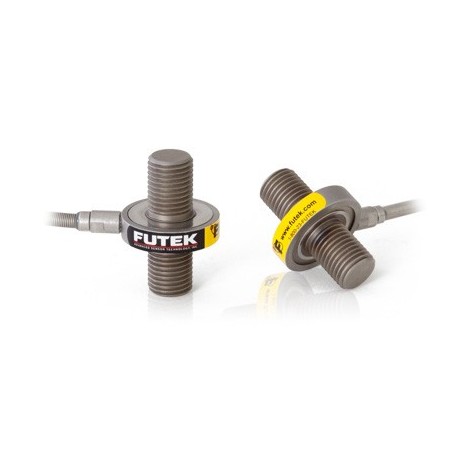

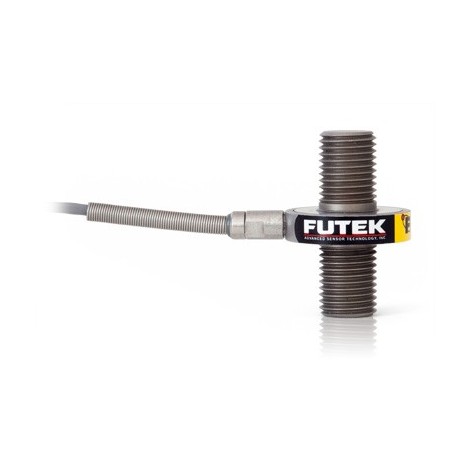

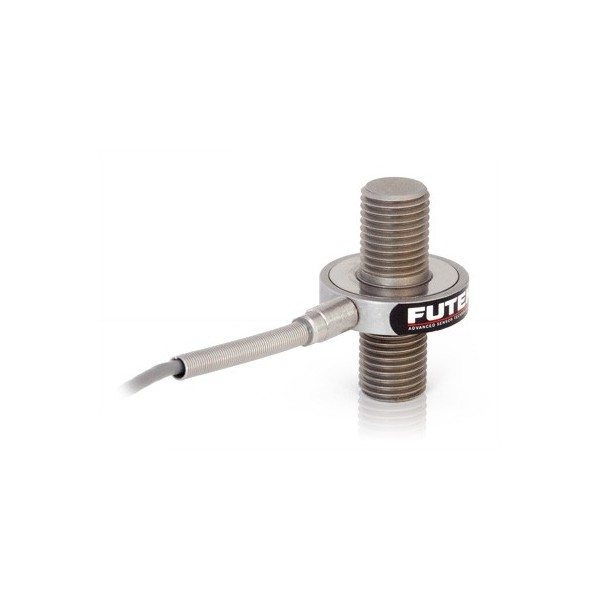

LCM200 is a Miniature Tension and Compression Load Cell built for Endurance or Inline Tension or Compression applications. The standard LCM200 Miniature Tension and Compression Load Cell model has a very robust construction available in 17-4 Stainless Steel, with male threads on both ends and a 10 feet long 29 AWG 4 conductor shielded Teflon cable. This product offers an exceptional weight of 0.6 oz (17 g).
The Miniature Tension and Compression Load Cell offers high accuracy. It has Nonlinearity of ±0.5% and Deflection of 0.002” nominal.
LCM200
Ultra light miniature tension copression load cell.
Capacities : +/- 250, 250, 1000 Lb.
Rated output : 1 or 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
