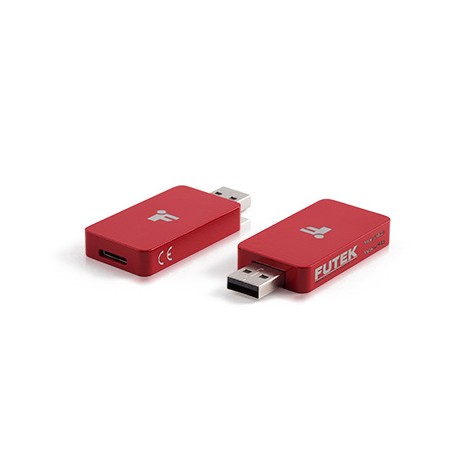

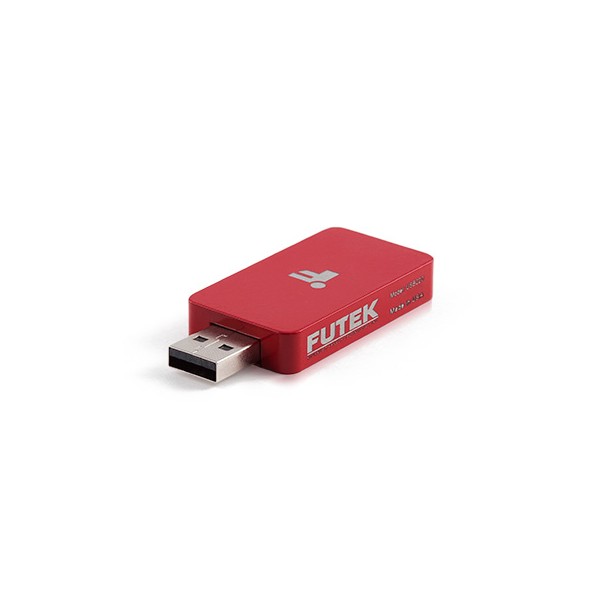

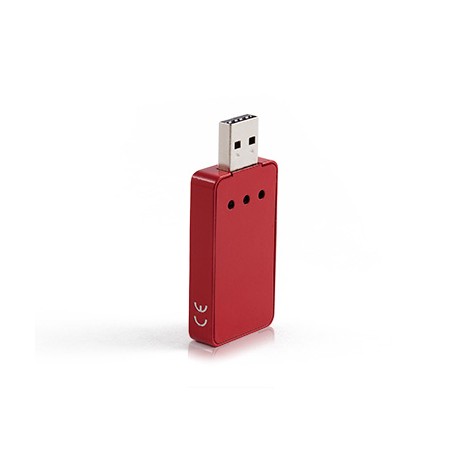

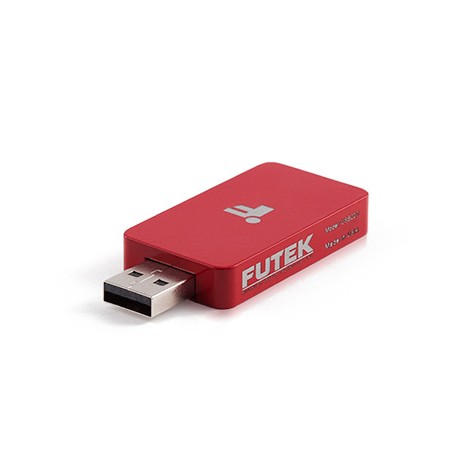

FUTEK USB220: External High Resolution/Speed USB Output Kit
- PC Data acquisition.
- USB 2.0 Communication Link.
- Sampling Rate: up to 4800 Samples Per Second.
- mV/V input (selectable up to ± 500 mV/V).
- High resolution, high accuracy and low non-linearity.
- Weight: 10 gr.
Log in to your account to display prices
Login
Login
Applications
> <
Impact Force Measurement
Drop Ball Test
Automated Vertical Farming
Center of gravity measurement
What is Bolt Clamping Force?
How To Measure Impact Force
High Precision Milligram Scale for the...
Breakaway Torque Measurement and Residual...
Press fit force determination of an assembly
Steer By Wire Sensor
TAVR Valve Durability Testing
Prone Stereotactic Biopsy
191 Engine Dynamometer Load Cell
Measuring mass flow with a load cell
Fly By Wire systems (FBW)
Steering Torque Sensor
Supersonic Tunnel Pressure
Multi-axis Sensor - Disc Tribometer
Robot Gripping Force Measurement
186 Bearing Load Measurement
342 Load Cell Torque Measurement
Agricultural Poultry Feeder
Dental Handpiece Torque Auditing
Rheometer Torque Measurement
Non-Magnetic Sensors Solutions
Desalination System Monitoring
UAV Launcher Force
Satellite Reaction Wheel Torque
Servo Motor Torque Control
Shark Bite Force Measurement
Reindeer Autopilot System
Exoskeleton for Paraplegics
Prosthetic Foot Emulator
Precision Wire Tensioner
Prosthetic Hip Fatigue Testing
Medical Valve Sensors: TAVR Fatigue Testing
Automotive Touchscreen Haptic Feedback
Package Drop Test Machine
Rocket Engine Thrust Stand
Hinge Fatigue Testing
Suspension System Performance Validation
Plastic Injection Molding Force Feedback
Stanford Solar Car Dyno
Bag Sealer Validation
OEM Torque Motor Test Stand
Valve Torque Testing
Robotic Leg Rehabilitation Device
Robotic Glove Rehabilitation Device
Industrial Automated Robotic Arm
Quadcopter Propellor Torque and Thrust Testing
USB Insertion/Extraction Motorized Test
Automotive Seat Durability Testing
Medical Guidewire Test
Wire Bond Testing
Spring Testing System
Wind Tunnel Testing
Trackpad / Touchpad Test Stand
Power Window Pinch Test
Laparoscopic Calibration
Catheter Force Measurement
Arbor Press Verification
Reliability Test Stand
Reliability Test Stand
Landing Gear Drop Test
Weighbridge Measurements
Catheter Track Force Test
Biomedical Research
Automation Container Filling
Industrial Robotic Automation
Batch Weighing
Medical Patient Lift
Snow Shoes Testing
Aircraft Control Column
Portable Crane Weighing
Helicopter Cyclic Sensors
Multihead Weigher
OEM Test Stand
Jet Parachute Deployment
Toggle Clamp
Syringe Test Stand
Bite Force Measurement Study
Material Force Testing
Linear Test Stand
Tube Expansion Measurement
Hydraulic/Pneumatic Press Force
Automotive Pedal Force Testing
Helicopter Pedal Force Testing
Wire Tension Measurement
DNA Synthesis
Behavioral Phenotyping
Tank Dispensing
Silo Measurement
Medical Bag Weighing
Industrial Wire Tension Measurement
Nut Runner Force/Torque
Bolt Fastening
Motor Test Stand
Robotic Tactile Sensing

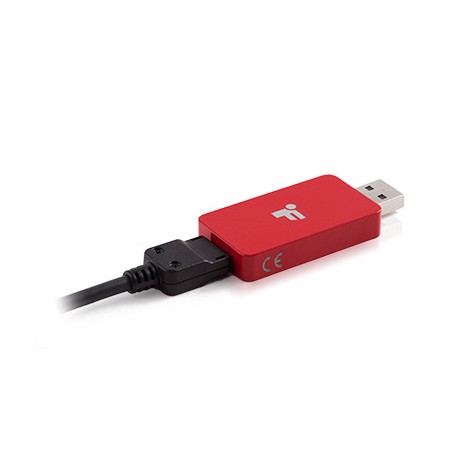

The new USB220 - External USB Kit module eliminates the need for an analog amplifier, power supply, and display equipment. The module is supplied by PC power through a USB Cable, providing excitation voltage for the sensor.
The analog output voltage of the sensor is then digitized and processed by a microprocessor using the integrated high resolution (24 bits) analogue to digital converter (ADC). The on-board USB transiver (transmitter and receiver) device allows the microprocessor to communicate with the PC by means of the USB link.
The USB integration works hand in hand with SENSIT Test and Measurement software, which allows users to monitor the actual output of the sensor in real time. This is calculated based on the calibration values stored inside the on-board memory. The easy plug and play gives you the power to monitor the sensor output and enjoy measurement that is less affected by noise, temperature variation and excitation.
FUTEK USB220
- PC Data acquisition.
- USB 2.0 Communication Link.
- Sampling Rate: up to 4800 Samples Per Second.
- mV/V input (selectable up to ± 500 mV/V).
- High resolution, high accuracy and low non-linearity.
- Weight: 10 gr.
