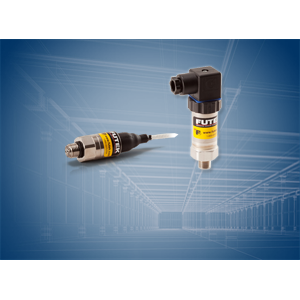

Pressure sensors
Designing and production of strain gauge pressure sensors with ranges from 100 mbar up to 2500 bar Version for RELATIVE, ABSOLUTE, VACUUM and DIFFERENTIAL measures.
With amplified or non-amplified output. Precision classes from 1.0% up to 0.05%. high reliability.
- Ranges: from: 0...1000 to 0...5000 bar.
- Protection: IP65/IP67.
- Wetted parts: 15-5PH / 17-4PH stainless steel.
- Measurement diaphragm with monolithic stainless steel structure.
- Digital Auto-Zero & Span function.
- Suitable for measuring static and dynamic pressure.
- Miniature Pressure Sensor (OEM).
- Capacities : 0 to 1, 2, 3, 7, 20, 20, 35, 70, 140, 200, 345, 700 bars.
- Rated output : 0-10 VDC.
- Non Linearity : 0.5%.
- Connector output.
Pressure Sensor (Industrial), 1/4-18-NPT Thread.
Capacities : 0 to 0.125, 0.35, 0.7, 1.7, 4, 7, 35, 70, 140, 200, 345, 700, 1000 bars.
Also available in Absolute version.
Rated output : 4-20 mA Output.
Non Linearity : 0.25%.
Material: Stainless Steel.
Connector output.
Pressure transducers for RELATIVE and ABSOLUTE measures.
Nominal pressures from 10 bar to 700 bar.
Linearity and hysteresis 0,2 or 0,50%.
Output 2mV/V, 0,5-5,5 Volt.
Protection IP67.
Process coupling 1/4" GAS Female.
- Pressure transducers for RELATIVE and ABSOLUTE measures.
- Nominal pressures from 5 bar to 2000 bar.
- Linearity and hysteresis 0,10%.
- Output 2mV/V.
- Protection class IP67.
- Process coupling 1/4" GAS Male.
Pressure transducers for RELATIVE and ABSOLUTE measures.
Nominal pressures from 0.5 bar to 2000 bar.
Linearity and hysteresis 1%.
AMPLIFIED outputs: 4-20mA, 0.5-10.5V and 0.5-5.5Volt.
Protection IP65.
Process coupling 1/4" GAS Female.
- Pressure transducers for RELATIVE and ABSOLUTE measures.
Nominal pressures from 5 bar to 2500 bar.
Linearity and hysteresis 0.2%. - HIGH TEMPERATURE max. 150 ° C.
AMPLIFIED outputs: 4-20mA, 5V, 10 Volt. - Protection IP65.
- Process coupling 1/2", 1/4" GAS Female.
- Pressure transducers for RELATIVE and ABSOLUTE measures.
Nominal pressures from 0.5 bar to 2000 bar.
Linearity and hysteresis 0.1%, 0.05%. - AMPLIFIED outputs: 4-20mA, 5V, 10 Volt.
- Protection IP65.
- Process coupling 1/2", 1/4" GAS Female.
Ranges: from 0...0.05 bar to 0...60 bar.
Complete range of voltage/current outputs.
Accuracy: ± 0.15%.
Operating temperature range -20...+85°C.
Protection rating: IP65/IP67.
Ranges from: 0...3 to 0...500 bar and ranges from -1...+1 to -1...+10 bar.
Output signal 4...20mA 2-wires / 0,1...5,1Vdc / 0,1...10,1Vdc / 0...5Vdc / 0...10Vdc / 1...5Vdc / 1...10Vd.
Available with a variety of process connections, both standard and custom.
Protection rating: IP65 / IP67.
Ranges from: 0...50 bar to 0...1000 bar.
Accuracy: ±0.1%.
Complete range of voltage/current outputs.
Operating temperature range: -40...+105°C.
Protection rating: IP65 / IP67.
Stainless steel construction.
