Ranges from: 0...3 to 0...500 bar and ranges from -1...+1 to -1...+10 bar.
Output signal 4...20mA 2-wires / 0,1...5,1Vdc / 0,1...10,1Vdc / 0...5Vdc / 0...10Vdc / 1...5Vdc / 1...10Vd.
Available with a variety of process connections, both standard and custom.
Protection rating: IP65 / IP67.

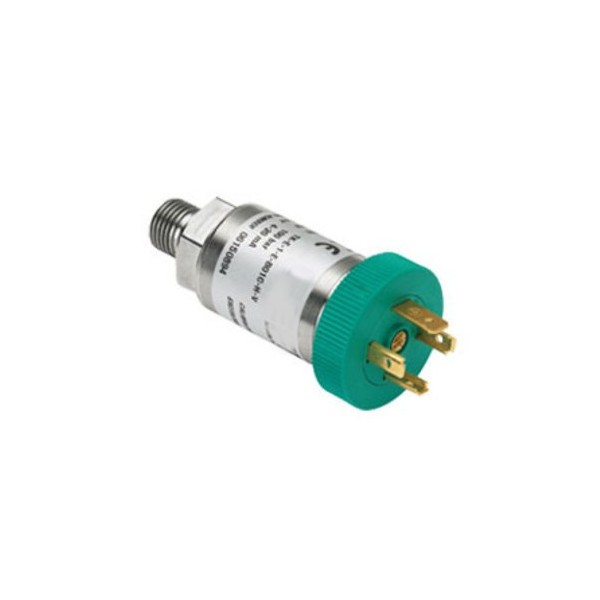

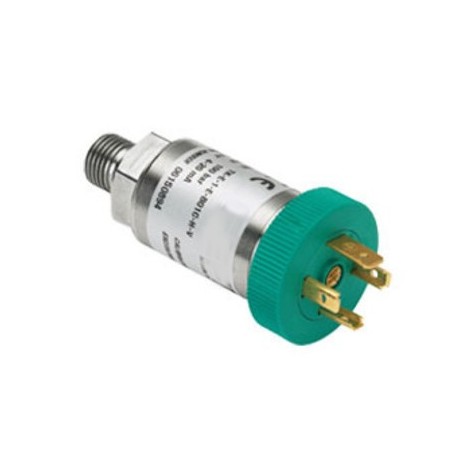

TK transmitters are based on the extensimetric thick film measuring principle.
Thanks to highly stable electronic components, these transmitters can be used in applications requiring longdistance signal transmission or in smart control systems.
