Laser Sensor

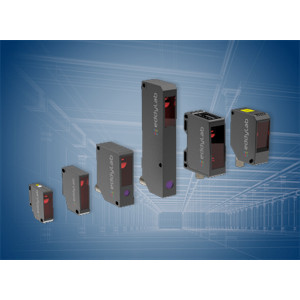

The digital laser sensors of the AXIS and HG-C series measure the distance or the position of an object in a highly reliable, non-contact and wear-free manner according to the triangulation principle.
The integrated microcontroller calculates the laser light intensity by color field correction and by the reflectance and adapts this to the object properties, such as for example color, roughness, reflectance or translucency.
Glossy metals are just as easily measurable as matt, dark materials (rubber, plastic).
The AXIS series sensors are available in two accuracy classes. The models AXIS-M and AXIS-MX achieve a resolution of up to 2 μm and offer an excellent price-performance ratio - ideal for OEM applications.
For demanding applications, the "High Performance"-model recommends itself with a resolution of 0.7 μm and higher accuracy.
The output signal can be configured as RS485 and RS232 as well as analog voltage and current signal like 0 ... 10 V or 4 ... 20 mA.
For demanding applications, the "High Performance"-model recommends itself with a resolution of 0.7 μm and higher accuracy.
The output signal can be configured as RS485 and RS232 as well as analog voltage and current signal like 0 ... 10 V or 4 ... 20 mA.
- Measuring range: ±5, ±15, ±35, ±80, ±200 mm.
- Measuring point distance: 30, 50, 100, 200, 400 mm.
- Repeatability: 10, 30, 70, 200, 300-800 µm.
- Linearity: ±0.1, ±0.2, ±0.2-0.3 %.
- Analog output : 0...5V or 4...20 mA.
- Control output NPN open-collector transistor.
- Radius diameter: 50.70, 120, 300, 500 µm.
- Response time: 1.5, 5, 10 ms.
- Operating Temperature : -10 - +45°C.
- Material: Aluminum, Acrylic.
- Dimensions: 20 x 44 x 25 mm.
- Protection: IP67.
- Measuring range : 10, 20, 104 mm
- Measuring point distance: 16-26 mm, 30-50 mm, 16-120 mm
- Resolution: 2-120 µm
- Linearity: 0.15%, 0.25%, 0.33%, 0.39%.
- Shape of the radius: Point
- Output 0...10 V / 4...20 mA / RS485
- Response time: 0.9 - 3 ms
- Operating temperature: 0 - +50°C
- Material: Zinc
- Fixation: 4 pins M8
- Dimensions: 12.4 × 37 × 34.5 mm
- Protection: IP67
- Measuring range : 10-500 mm
- Distance from the measuring point: 50-550 mm
- Resolution: 15-1150 µm
- Linearity: 0.30%, 0.40%, 0.45%, 0.70%.
- Output : 0...10 V / 4...20 mA / RS485 / RS232
- Radius shape: Point or Line
- Response time: 0.9 ms, 2 ms
- Operating temperature: 0 - +50°C
- Material: Aluminum
- Fixation: 4 pins M8
- Dimensions: 13.4 × 48.2 × 40 mm
- Protection: IP67
- Measuring range : 40-800 mm
- Distance from the measuring point: 30-1000 mm
- Resolution: 4-670 µm
- Linearity: 0.15%, 0.20%, 0.40%.
- Radius shape: Point or Line
- Output Signal 0...10 V / 4...20 mA
- Response time: 0.9 ms
- Operating temperature: 0 - +50°C
- Material: Zinc / Aluminium
- Mounting: 4 pins M8 / 8 pins M12
- Dimensions: 13.4 × 48.2 × 40 mm or 20.4 x 135 x 45 mm (P800 version)
- Protection: IP67
- Measuring range : 40-1350 mm
- Distance from the measuring point: 30-1500 mm
- Resolution: 0.7-125 µm
- Linearity: 0.06%, 0.07%, 0.09%, 0.12%, 0.19%, 0.32%
- Analog output : 0...10 V / 4...20 mA / RS485
- Radius shape: Point or Line
- Response time: 0.8 ms
- Operating Temperature : -10 to +50°C
- Material: Aluminum
- Mounting : 8 pins M12
- Dimensions: 26 × 74 × 55 mm
- Protection: IP67
- Measuring range : 3800-12800 mm
- Distance from the measuring point: 200-13000 mm
- Resolution: 1.3 - 5 mm
- Linearity: 0.11%, 0.49%.
- Output : 0..10V or 4...20 mA
- Shape of the radius: Point
- Response time: 20 ms
- Operating Temperature : -25 to +50°C
- Material: Aluminum
- Mounting: 5 pins M12
- Dimensions: 25.4 × 66 × 51 mm
- Protection: IP67
