Digital Rulers - Magnescale

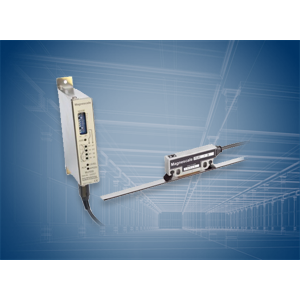

Digital magnetic tape measurement systems by Magnescale (formerly SONY Precision Technology) consist of a linear magnetic material and a reading head, which is fed without contact over the magnetic tape.
This measuring principle is permanently wear-free, very robust and enables the highest resolutions up to 0.2 microns.
- SL110: Profile scale, extreme robust
- SL130: flexible magnetic tape scale to glue on
- available ranges SL110: 200 to 2000 mm
- available ranges SL130: 200 to 30.000 mm
- Resolution 10 µm
- Linearity up to ±25 µm
- Output signal PL20C: A/B quadrature signal
- Displacement speed up to 300 m/min
- Working temperature 0...+45 °C
- Protection class PL20C: IP67
- resistant against dirt, water, oil, vibrations and shock
- Accuracy up to 52 µm (with FS 200 mm)
- Resolution 10, 20, 25, 50, 100 μm selectable
- Output signal PL81: open collector
- Output signal PL82: A/B TTL-output (RS422)
- Displacement speed up to 300 m/min
- Protection class IP67 (Reading head)
- Working temperature 0...+45°C
- Interpolator integrated in reading head
- resistant against dirt, water, oil, vibrations and shock
- SL110: Profile, extremely robust, up to 2000 mm length
- SL130: flexible magnetic tape scale to glue on, up to 30.000 mm length
- Measurement ranges: 200 - 8000 mm
- Resolution up to 2 µm
- MJ100/110: A/B TTL output signal or HTL open
collector output
- Resistant against dirt, water, oil, vibrations and shock
- Protection class PL60: IP65
- High displacement speed
- Working temperature 0...+45 °C
- Easy mounting
- Measurement ranges: SL110 200 - 8000 mm, SL130 200 - 30000 mm.
- Resolution up to 5, 10, 25, 50, 125 μm adjustable
- MJ100/110: A/B TTL output signal or HTL open collector output
- Resistant against dirt, water, oil, vibrations and shock
- Protection class PL60: IP65
- Displacement speed : 300mm/min
- Working temperature 0...+45 °C
- Easy mounting
- Magnetic scale : SL700
- Measurement ranges: 50 - 100000 mm
- Resolution up to 0,2 µm
- Analogue output signal (1V p-p), or with interpolator MJ623 A/B quadrature output signal (TTL, RS422)
- Resistant against dirt, water, oil, vibrations and shock
- Protection class PL101: IP67
- High displacement speed
- Working temperature 0...+45 °C
- Easy mounting
