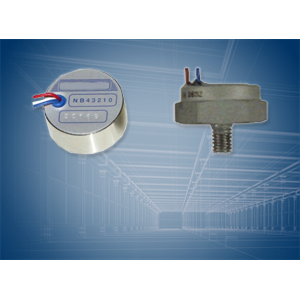

Single Axis Accelerometer
Sensel Measurement commercializes and designs a large range of mono axis accelerometer intended for a lot of applications.
We offer a large range of measurement from ±1g to ±100g, with linearity below 0.2% of the measurement range.
The housing cases include single axis sensors from the SM-B and SM-BDK series.
They are built up on request, allowing you to choice and calibrate the outgoing signal (0...5V or 4...20 mA) according to the capacity needed by your application.
- Capacitive spring-mass accelerometer with integrated electronics.
- Measuring Range: ±3g ±10g ±100g.
- High accuracy.
- Degree of protection IP 65.
- Frequency range up to 1500 Hz.
- High long-term stability.
- Insensitive of interference frequencies.
Capacitive spring-mass accelerometer with integrated electronics.
Measuring Range: ±3g ±10g ±50g.
High accuracy.
Degree of protection IP 65.
Frequency range up to 550 Hz.
Mechanical overload resistance in direction of measurement: 10 000 g.
Insensitive of interference frequencies.
Robust pressure die cast aluminium with an integrated sensor (SM-B).
Measuring uniaxial acceleration
Output signal 0-5V.
Degree of Protection IP 67.
Sensor and signal conditioner electrically isolated from housing.
Temperature drift compensation.
Insensitive of interference frequencies.
- Pressure die cast aluminium sensor housing with an integrated sensor (SM-B).
- Measuring uniaxial acceleration
- Output signal 4-20mA.
- Degree of Protection IP 67.
- Sensor and signal conditioner electrically isolated from housing.
- Temperature drift compensation.
- Insensitive of interference frequencies.
- Extra robust, pressure-, saltwater- and corrosion-proof stainless steel housing integrated sensor (SM-B).
- Measuring uniaxial acceleration , Output signal 0-5V or 4..20mA.
Degree of Protection IP 68. - Sensor and signal conditioner electrically isolated from housing.
