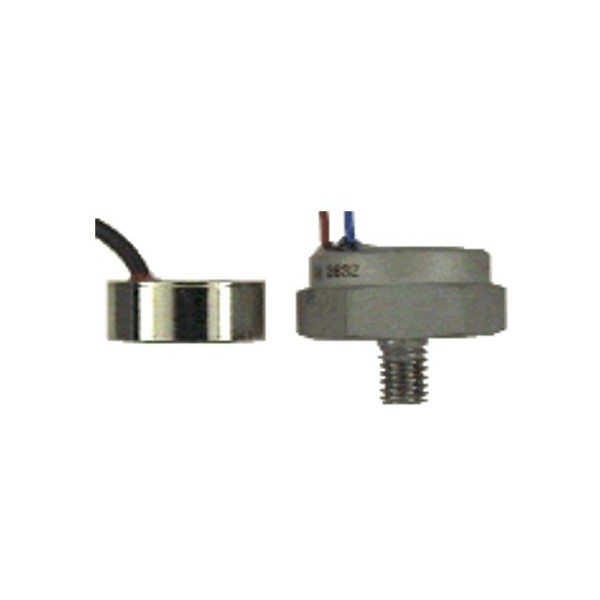

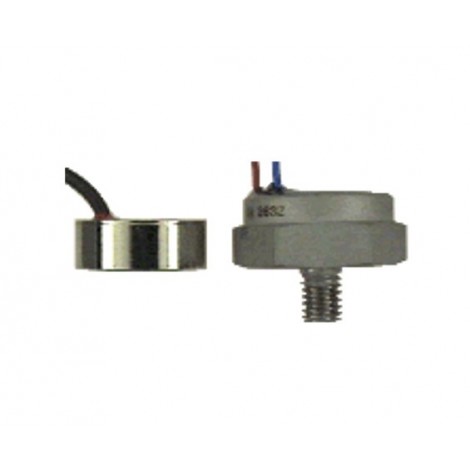

SM-BDK: Accelerometer with integrated electronic - +/- 3, 10, 100 g

  • Capacitive spring-mass accelerometer with integrated electronics.
  • Measuring Range: ±3g ±10g ±100g.
  • High accuracy.
  • Degree of protection IP 65.
  • Frequency range up to 1500 Hz.
  • High long-term stability.
  • Insensitive of interference frequencies.
Log in to your account to display prices
account_circleSend to a friend
SM-BDK: Accelerometer with integrated electronic - +/- 3, 10, 100 g

SM-BDK: Accelerometer with integrated electronic - +/- 3, 10, 100 g

  • Capacitive spring-mass accelerometer with integrated electronics.
  • Measuring Range: ±3g ±10g ±100g.
  • High accuracy.
  • Degree of protection IP 65.
  • Frequency range up to 1500 Hz.
  • High long-term stability.
  • Insensitive of interference frequencies.



Applications

> <

The dynamic accelerometers SM-BDK are capacitive spring-mass accelerometers with integrated sensor electronics. Resonant peaks are minimized by dynamic gas damping in the primary transformer.
The sensor electronics require only minimal power and are in conjunction with the capacitive primary transformer characterized by low error and high long-term stability.

SM-BDK
