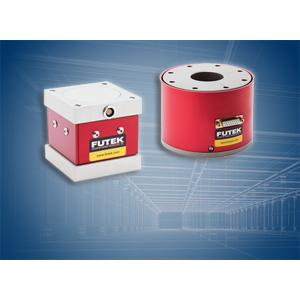

Multi-Axis Load cell
Sensel Measurement Multi Axis Load Cell are designed to measure a multiple of forces and moments simultaneously with a single Load Cell.
Multi Axis Load Cells can accurately measure up to six components (3 forces and 3 moments) of load.
Multi-Component Bi-Axial Load Arm. (Fx & Fy).
Capacities : +/- 50, 200 Lb.
Rated output : ± 2 mV/V.
Non Linearity : < 0.2%.
Material : Stainless steel.
Connectors outputs.
Torque and Thrust Biaxial Sensor (Measure Fz and Mz).
Fz: 50, 100, 200, 500 Lb.
Mz: 5, 10, 15, 20, 55 Nm.
Non Linearity : < 0.5%.
Material : Aluminum.
Cable Output.
Multi-Axis Sensor that measures up to 6 different forces and torque, in 3 spatial directions and converts it into an electrical output signal.
Capacities : Ch Fx/Fy/Fz - 15 N, Ch Mx/My/Mz - 1 Nm.
Overload Protection.
Rated output : From 0.5 mV/V to 2.4 mV/V.
Non Linearity : 0.25 %.
Operating Temperature : -60 to 200°F (-51 to 93°C).
Dimensions : 1.96 in [50 mm OD] x 0.38 in [9.5 mm] ID x 0.43 in [10.8 mm] H.
Material : Aluminum.

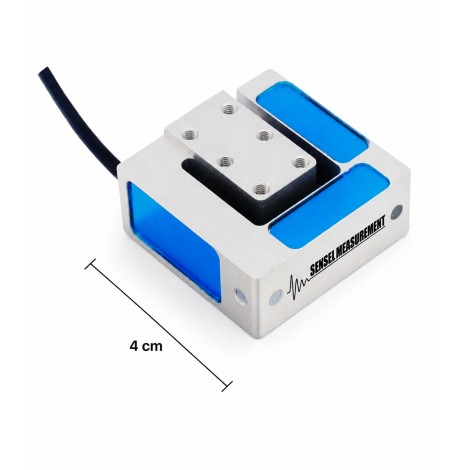

Tri-Axial Load Cell ( Measure Fx, Fy, and Fz Loads).
Fx & Fy : +/- 250 Lb.
Fz : +/- 500 Lb.
Rated output Fx & Fy : ± 1.5 mV/V.
Rated output Fz : ± 0.75 mV/V.
High Capacity
Material : Aluminum.
Connectors outputs.
Connectors outputs.
Tri-Axial Load Cell (Fz, Mx, and My Loads).
Mx & My : from +/- 100 to 400 in-Lb.
Fz : from +/- 250 à 1 000 Lb ou 5 000 Lb (à vérifier la doc me donne un doute).
Rated output Mx & My : ± 0.75 mV/V.
Rated output Fz : ± 1 mV/V (250, 500, 1 000 Lb), 2 mV/V (1 000 ou 5 000 Lb).
High Capacity.
Material : Stainless steel, Anodized Aluminum.
Connectors outputs 6 Pin Bendix Receptacle, PT02A-10-6P.
Tri-Axial Load Cell (Fz, Mx, and My Loads).
Mx & My : from 2 000 to 10 000 in-Lb.
Fz : from 10 000 to 25 000 Lb.
Rated output Mx & My : ± 0.5 mV/V, ± 2 mV/V
Rated output Fz : ± 2.5 mV/V, 4 mV/V.
High Capacity.
Material : Stainless steel, Anodized Aluminum.
Connectors outputs 6 Pin Bendix Receptacle, PT02A-10-6P.

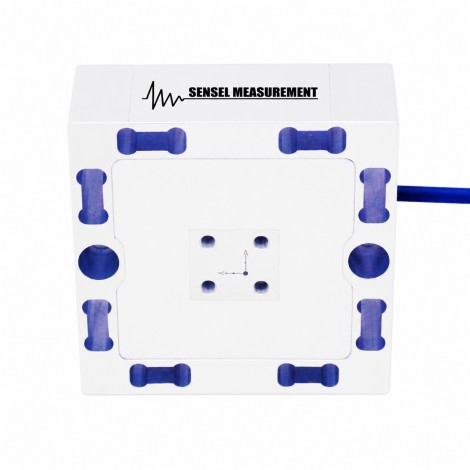

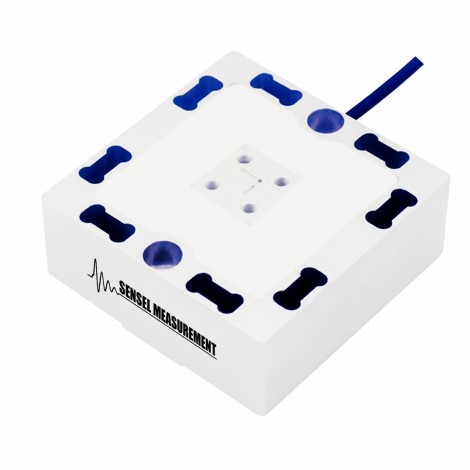

Tri-Axial Load Cell (Fx, Fy, and Fz Loads).
Fx & Fy : +/- 2500 Lb.
Fz : +/- 5000 Lb.
Rated output Fx & Fy : ± 1.5 mV/V.
Rated output Fz : ± 0.75 mV/V.
High Capacity.
Material : Stainless steel.
Connectors outputs.
Custom Low Profile Torque & Thrust Sensor.
Capacities : Fz - 200 Lb, Mz - 200 in-Lb.
Rated output : Fz 1 mV/V, Mz 2 mV/V.
Non Linearity : 0.5 %.
Operating Temperature : -60 to 200°F (-51 to 93°C).
Material : Anodized Aluminum.
Cable Output.
Stick Shift Long/Gear Shift Long Knob Load Cell for the automotive industry.
Channel Fx & Fy: 100, 200 Lb.
Material: Aluminum.
Compact design.
Cable output.
Inline 3 DOF/Axis Load Cell.
Fx, Fy & Fz : +/- 10 Lb.
Fx, Fy & Fz output : ± 2 mV/V.
33.8 mm OD x 64.8 mm H , M4x0.7-Threads.
Material - 2024-T4 Aluminum.
3x 4 Pin Micro Receptacle.
