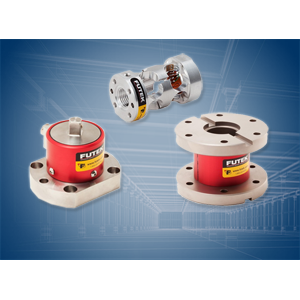

Static Torque sensor
Discover our large range of strain gage static torquemeters, allowing to measure in the two directions from ± 0.04 Nm up to ± 5000 Nm with high accuracies (1%,0.25%).
This torque sensors are usually used for measuring tightening torques, verify and calibrate screw driving systems and dynamometric torque wrenches.
Mini Screw Driver Reaction Torque Sensor.
Capacities : 0.71 Nm.
Rated output : 1-2 mV/V.
Non Linearity : 0.2%.
Material : Aluminum.
Cable output.
Custom Micro Thru Hole Reaction Torque Sensor.
Capacities : +/- 1 Nm, 1.5 Nm.
Rated output : 1.6 mV/V [1 Nm], 1.4 mV/V nom [2 Nm].
Non Linearity : 0.5%.
Dimensions : 10 mm x 22 mm x 10 mm.
Options for 1.5 Nm version : +/- 0.125% NL & +/- 0.2% Hys., + / - 10 VDC Analog Output.
Material : Aluminum.
Cable output.
RoHS Compliant.
Strain gage, Reaction Torque Sensor with Square Drive.
Capacities : 0.04, 0.08, 0.15, 0.35, 1.2, 3, 7, 12, 23, 60 Nm.
Rated output : 1-2 mV/V.
Non Linearity : 0.2%.
Material : Aluminum.
Connector output.
Reaction Torque with Flange to Square with strain gauge technology.
Capacities TDF600: +/- 135, 270, 680 Nm.
Capacities TDF650 : +/- 1350 Nm.
Capacities TDF675 : +/- 2 700 Nm.
Rated output : 2 mV/V.
Non Linearity : 0.2%.
Material : Aluminum.
Connector output.
Strain gage Reaction Torque Sensor with Square Drive coupling.
Capacities : 0.5, 2.5, 5, 10, 25, 50, 100, 250, 500, 1000 Nm.
Rated output : 2 mV/V.
Non Linearity : 0.2%.
Material : stainless steel.
Cable output 5 m.
Reaction Torque Sensor with strain gauge technology.
Capacities : 0.15, 0.35, 1.35, 5, 12 Nm.
Rated output : 2 mV/V.
Non Linearity : 0.2%.
Material : Aluminum.
Strain gage, Reaction Torque Sensor with Flange to Flange mounting.
Capacities : 0.04, 0.08, 0.15, 0.35, 1.2, 3, 7, 12, 23, 56 Nm.
Rated output : 1-2 mV/V.
Non Linearity : 0.2%.
Material : Aluminum.
Connector output.
Strain gage technology Reaction Torque sensor with Flanges.
Capacities TFF425 : +/-0.04, 0.08, 0.37, 1.2, 3, 7.5, 12, 24, 60 Nm.
Capacities TFF600: +/- 200, 1000 Nm.
Rated output : 2 mV/V.
Non Linearity : 0.2%.
Strain gage Reaction Torque Sensor with Flanges.
Capacities : 50, 100, 250, 500, 1000, 2000, 3000, 5000 Nm.
Rated output : 1 mV/V.
Non Linearity : 0.03%.
Protection IP67.
Material : stainless steel.
Cable output 5 m.
Reaction miniature Torque Sensor with Shafts.
Capacities : 0.04, 0.08, 0.15, 0.35, 1.2, 3, 7, 12, 23, 60 Nm.
Rated output : 1-2 mV/V.
Non Linearity : 0.2%.
Material : Aluminum.
Cable output.
