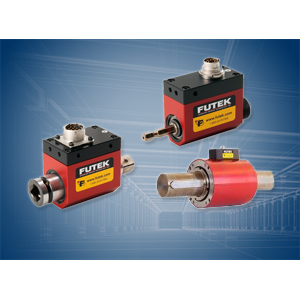

Rotary Torque sensor
Discover our large range of rotary torque sensors, allowing to measure in the two directions of rotation torque from ± 0.2 Nm up to ± 5000 Nm with high accuracies (1%,0.5%, 0.2%,0.1%) adapted to your needs and your budget.
Rotary Torque Sensor without contact, itegrated electronic.
Measuring Range: +/- 2.5, 7.5, 17.5, 75, 175, 250, 500 Nm.
Rated Output: +/- 2V (From 0.5 to 4.5 V).
Non linearity: 1%.
Torque measurement: Shaft ends: Rounds or Square.
Degree of protection: IP50.
Rotary Torque Sensor without contact, integrated electronic.
Measuring Range: +/- 0.5, 1, 2.5, 10, 20, 50, 1000 Nm.
Output signals: 0-10 V/4-20 mA/CAN-Bus/USB
Rotational speed: ≤ 10.000 rpm
Non linearity: 0.5%.
Integrated encoder 360 PPR (Optionnal, contact us).
Torque measurement: Shaft ends: Rounds or Square.
Degree of protection: IP50. (option IP65)
Series 3000 disposes of integrated 2 kHz-electronics.
Integrated encoder 360 PPR (Optionnal, contact us).
Measuring Range: +/- 50, 100, 250, 500, 1000, 2000 Nm.
Rated Output: 0...10V, 4...20 mA.
Non linearity: 0.2%.
Supply voltage: 11-28 VDC.
Torque measurement: Shaft ends: Rounds or Square.
Degree of protection: IP50.
Integrated encoder 360 PPR (Optionnal, contact us).
Measuring Range: +/- 50, 100, 250, 500, 1000 Nm.
Rated Output: 0...10V, 4...20 mA.
Non linearity: 0.1%.
Supply voltage: 11-28 VDC / 150 mA.
Rational speed: Up to 10,000 upm.
Supply voltage: 11-28 VDC / 150 mA.
Rational speed: Up to 10,000 upm.
Degree of protection: IP50.

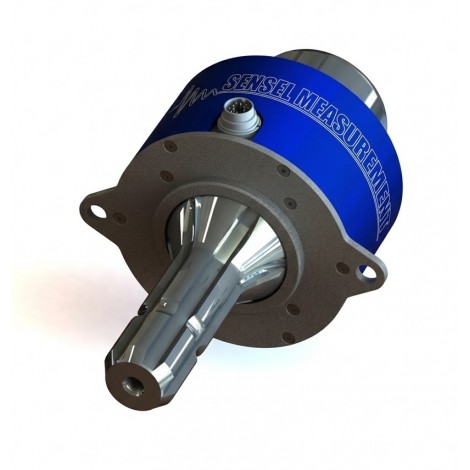

- Measuring range : +/- 3000, 5000 Nm
- Frequency range: 2.5 kHz
- Rotation speed: < 3.600 RPM
- encoder in option for speed or angle measurement
- Linearity: < ±0.5
- Output signal: 0...10 V, 4...20 mA, CAN-Bus or USB
- Operating Temperature : -40°C to +85°C
- Protection: IP50, IP65
- Measuring range : +/-10.000 Nm bidirectional
- Frequency range: 2.5 kHz
- Rotation speed : < 2.500 RPM
- Speed sensor 60CPR in option
- Linearity: < ±0.5
- Output signal: 0...10 V, 4...20 mA, CAN-Bus or USB
- Operating Temperature : -30°C to +85°C
- Protection: IP50, IP65
ROTATING torque transducers for the measurement in clockwise and anticlockwise direction
CYLINDRICAL or SQUARE coupling
Nominal torque from 0.5 N•m to 5000 N•m
Linearity and Hysteresis 0,20%
Nominal speed of rotation 4000 rpm
Contact transmission
Versions with ENCODER integrated reading ANGLE and SPEED
RT2 standard outut ±2mV/V
RT2A standard output ±10Volt
Custom Micro Rotary Torque Sensor with Integrated TEDS.
Capacities : +/- 1 Nm.
Rated output : 2 mV/V.
Non Linearity : 0.1%.
Operating Temperature : Up to 185 °C
Material : Aluminum & Stainless Steel.
7 Pin Quick Disconnect Nano Receptacle output.
RoHS Compliant.
Square Drive Rotary Torque Sensor with Encoder.
Capacities : 6, 12, 25, 63, 160, 500, 1000 Nm.
Rated output : 2 mV/V.
Non Linearity : 0.2%.
Material : Stainless steel.
Encoder output: TTL.
Safe overload: 150%.
Excitation: 5 to 11 VDC.
Encoder excitation: 5 VDC.
Rotational Speed: 3000 RPM.
Temperature Range: 5 à 55 °C.
Non-Contact Square Drive Rotary Torque Sensor with Encoder.
Capacities : 12, 18, 50, 100, 160, 250, 300, 500, 1000 Nm.
Rated output : +/- 5 mV/V.
Non Linearity : 0.2%.
Material : Stainless steel.
Encoder output: TTL.
Safe overload: 150%.
Excitation: 11 to 26 VDC.
Encoder excitation: 5 VDC.
Rotational Speed: 7000 RPM.
Temperature Range: 5 à 55 °C.
Shaft to Shaft Rotary Torque sensor.
Capacities : 10, 20, 50, 100, 200, 500, 1000 Nm.
Rated output : 2 mV/V.
Non Linearity : 0.2%.
Safe overload: 150%.
Excitation: 5 to 11 VDC.
Rotational Speed: 3000 RPM.
BINDER connector output.
Non-Contact Shaft to Shaft Rotary Torque Sensor.
Capacities : 1, 2, 5, 10, 20, 50, 100 Nm.
Rated output : +/- 5 mV/V.
Non Linearity : 0.2%.
Safe overload: 150%.
Excitation: 11 to 26 VDC.
Rotational Speed: 12000 RPM.
Temperature Range: -25 to 80 °C.
12 Pin BINDER Receptacle.
12 Pin BINDER Receptacle.
- Non-Contact Shaft to Shaft Rotary Torque Sensor with Encoder.
- Capacities : 1, 2, 5, 10, 20, 50, 100, 200, 500, 1000 Nm.
- Rated output : 2 mV/V.
- Non Linearity : 0.2%.
- Encoder output: TTL.
- Safe overload: 150%.
- Excitation: 5 VDC.
- Rotational Speed: 7000 RPM
Non-Contact Shaft to Shaft Rotary Torque Sensor with Encoder.
Capacities : 1, 2, 5, 10, 20, 50, 100, 200, 500, 1000 Nm.
Non Linearity : 0.2%.
Encoder output: TTL.
Safe overload: 150%.
Excitation: 5 VDC.
Encoder excitation: 5 VDC.
Rotational Speed: 7000 RPM.
Non-Contact Hex Drive Rotary Torque Sensor with Encoder.
Capacities : 0.5, 1, 2, 6, 12, 18 Nm.
Rated output : +/- 5 mV/V.
Encoder excitation: 5 VDC.
Encoder excitation: 5 VDC.
Non Linearity : 0.2%.
Encoder output: TTL.
Rotational Speed: 7000 RPM.
- Hex Drive Rotary Torque Sensor.
- Capacities : 2, 6, 12, 20 Nm.
- Rated output : 1 mV/V (2Nm) & 2mV/V (6-20Nm).
- Non Linearity : 0.2%.
- Excitation: 5 to 11 VDC.
- Rotational Speed: 3000 RPM
