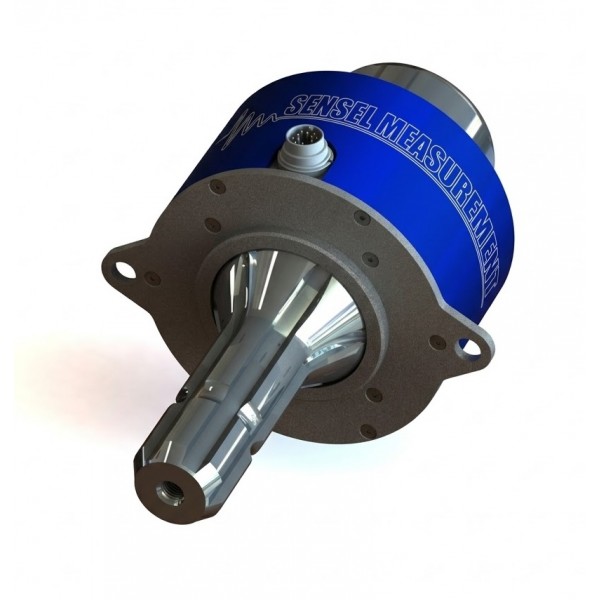

SM7300 : High Performance PTO Sensor +/- 3000 Nm

  • Measuring range : +/- 3000 Nm
  • Frequency range: 2.5 kHz
  • Shaft 1 3/8“ 6-teeth (m/f)
  • Rotation speed: < 1200 RPM
  • encoder in option for speed or angle measurement
  • Linearity: < ±0.75
  • Output signal: 0...10 V, 4...20 mA, CAN-Bus or USB
  • Operating Temperature : -40°C to +85°C
  • Protection: IP65
Log in to your account to display prices
account_circleSend to a friend
SM7300 : High Performance PTO Sensor +/- 3000 Nm

SM7300 : High Performance PTO Sensor +/- 3000 Nm

  • Measuring range : +/- 3000 Nm
  • Frequency range: 2.5 kHz
  • Shaft 1 3/8“ 6-teeth (m/f)
  • Rotation speed: < 1200 RPM
  • encoder in option for speed or angle measurement
  • Linearity: < ±0.75
  • Output signal: 0...10 V, 4...20 mA, CAN-Bus or USB
  • Operating Temperature : -40°C to +85°C
  • Protection: IP65



With the new High Performance PTO Sensor 7300, we offer a new and innovative solution in the area of torque measurement for the agriculture

industry. The sensor is characterized by a high accuracy of 0,5% and a torque range of up to 3000 Nm.

The greatest challenge for sensors in agriculture is the working environment. The contactless measurement and the compact design with

protection class IP65 make the PTO sensor extremely robust against environmental conditions such as vibration, dirt and liquids.

Its compact design has the dimensions 238mm and 120mm and needs less mounting space.

The sensor is so easy to install and lock without tools between the PTO shaft and cardan shaft that one person can operate it alone. High performance made easy.
