Signal conditioning
SENSEL Measurement is a specialist in the design and the commercialization of conditioning amplifiers for all types of sensors and signals.
The conditioning amplifiers for sensors are measuring devices allowing to have an analogical signal in tension or current (0-10V or 4-20mA).

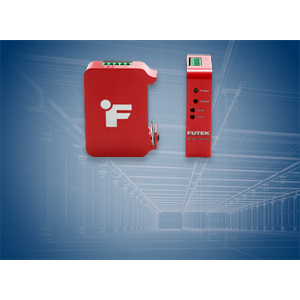

Full Bridge Strain Gage Signal Conditioning Voltage Amplifier.
Output ±5, ±10V.
Bridge Excitation: 5, 10 VDC (DIP Switch).
Selectable 1 KHz,10 KHz, 25 KHz Bandwidth.
Internal Span and Offset Potentiometers.
Full Bridge Strain Gage Signal Conditioning Current 4-20 mA Output.
High accuracy.
Bridge Excitation: 5, 10 VDC (DIP Switch).
Selectable 1 KHz,10 KHz, 25 KHz Bandwidth.
Internal Span and Offset Potentiometers.
Ultra Low Noise Signal Conditioning Differential Strain Gauge Voltage Amplifier.
+/-5 VDC , +/-10 VDC Output.
High accuracy.
Bridge Excitation: 5, 10 VDC (DIP Switch).
Selectable 1 KHz,10 KHz, 25 KHz, 50 KHz Bandwidth.
Internal Span and Offset Potentiometers.
Amplifier conditioner for strain gage sensors (load cells, torquemeter, pressure transmitter...).
Ouput : +/-10V, 0/4...20mA.
Bridge excitation 5 or 10V.
Sensitivity from 0.1 to 30mV/V.
Selectable Bandwith : 2 KHZ or 20 KHz.
Bridge resistance from 120 to 10k Ω.
Possibility to set up 4 x 350Ω sensors in bridge.
Power supply 24V.
- Amplifier conditioner for potentiometric transducers.
- Ouput : +/-10V, 0/4...20mA.
- Cable break detection and alarm output
- Selectable Bandwith : 2 KHZ or 20 KHz.
- Power supply 9...36VDC
Output 0…10 V, 0…5 V, ±5 V, ±10 V, 4…20 mA, 0…20 mA
Function Cable break detection, alarm-output
Adjustable setting offset, gain, frequency, amplitude, phase shift
Max. frequency 300 Hz/ optionally 1kHz
Mounting DIN EN-rail
Output 0…10 V, 0…5 V, ±5 V, ±10 V, 4…20 mA, 0…20 mA
Function Cable break detection
Adjustable setting Offset, gain, frequency, amplitude, phase shift
Max. frequency 300 Hz
Mounting Hole ø5,5
- Amplifier conditioner for LVDT displacement sensors.
- Demodulation type (A-B)/ (A+B) ou A/B.
- Sensor excitation from 1 to 7 V RMS.
- Sensor sensitivity 50 to 1000 mV/V.
- Ouput : +/-10V, 0/4...20mA.
- Accuracy 0.01%.
- Isolated Power supply 24V. 24V DC ±10 %
- Conditioner for incremental encoder analog output (linear displacement, angular displacement).
- Sensor excitation 5 Vdc/10 mA.
- Signal Ouput : +/-10V, 0/4...20mA.
- Frequency 1 MHz.
- 16 bits converter.
- Accuracy 0.01%.
- Power supply 24V DC.
- Sensitivity: 100 mV/g or 4, 20 mV/mM/Sec.
- Output: 4-20 mA proportional
- Frequency response: 2 Hz to 20 kHz
- Available ranges :
- 5, 10, 15, 20, 25g (Acceleration version)
- 12.7, 25.4, 38.1, 50.8, 63.5 mm/sec (Speed version)
- 127, 254, 381, 508, 635 µm (Displacement version) - Signal detection: RMS or peak value
- Filters (optional): Plug-in high-pass and low-pass filters
- Amplified outputs: BNC output and terminals
- Connector: Screw terminal block 12 - 24 AWG
- Operating Temperature : -20°C to +80°C
- Storage temperature : -40°C to +95°C
- Din rail mountable (TS32/TS35)
- Dimensions :
- Transmitter : 25.27 x 78.99 x 96.67 mm
- With monitor: 42.3 x 78.99 x 96.67 mm - Weight :
- Transmitter : 95g
- With monitor: 180g
- Sensitivity: 100mV/g
- Temperature sensitivity: 10 mV/°C
- Low-pass filter: 1kHz or 10kHz
- High-pass filter: 10 Hz
- Output n°1 :
- Vibration: 4-20mA proportional to full scale
- Acceleration: 5, 10, 20, 40 g
- Speed: 12.5, 25, 50 or 100 mM/Sec. - Output n°2: 0 - 150°C
- Output n°3: Same value as input
- Units: English or Metric
- LED: Two-color, red = Error, green = OK
- Operating Temperature : -20 - 80°C
- Material: Polycarbonate
- Weight: 85g
- Mounting on Din Rails
