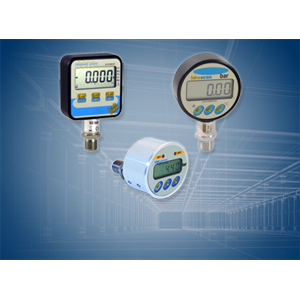

Digital manometer
Design and production of digital manometer from 0.1 up to 2500 bar.
Version for RELATIVE, ABSOLUTE, VACUUM and DIFFERENTIAL measures.
Precision from 0.5% up to 0.05%. high resolutions Internal batteries.
- Measurement ranges : 700, 2000, 3000 bar
- Operating temperature: 0 - 40°C
- Material: Anodized aluminum and stainless steel structure
- Dimensions :
- 347 x 200 x 112 mm (GPM700)
- 429 x 200 x 158 mm (GMP2000, GPM3000) - Weight :
- 6.3 kg (GPM700)
- 14.6 kg (GPM2000, GPM3000) - Ball valve for depressurization
- Transportation :
- Briefcase
- Sealing caps for the hydraulic system
Digital manometers for RELATIVE, ABSOLUTE and VACCUM measures.
Capacities from 100 mbar to 2000 bar..
Linearity and hysteresis 0,20%.
Connection 1/2" GAS Male.
Recharge internal batteries.
Measurement of the temperature of the fluid.
Suitable for dynamic and static applications.
Programmable DATA LOGGER.
Record PRESSURE and TEMPERATURE.
Digital manometers for RELATIVE and VACCUM measures.
Capacities from 100 mbar to 2000 bar.
Linearity and hysteresis 0,05%.
Connection 1/2" GAS Male.
Internal batteries included.
Suitable for dynamic and static applications.
Protection class IP65.
Functions: ZERO, FILTER, PEAK, AUTO POWER OFF.
Calibration certificate included.
Digital manometers for RELATIVE and VACCUM measures.
Capacities from 1 to 2000 bar.
Linearity and hysteresis 0,2%.
Connection 1/2" GAS Male.
Measurement of the temperature of the fluid.
Programmable DATA LOGGER
Record PRESSURE and TEMPERATURE.
Internal batteries included.
Suitable for dynamic and static applications.
Protection class IP65.
Digital manometers for RELATIVE, ABSOLUTE and VACCUM measures.
Capacities from 1 bar to 2000 bar.
Linearity and hysteresis 0,2%.
Measurement of the temperature of the fluid.
Connection 1/2" GAS Male.
Internal batteries included.
Suitable for dynamic and static applications.
Protection class IP65.
Functions: ZERO, FILTER, PEAK, AUTO POWER OFF.
Calibration certificate on resquest.
Digital manometers for RELATIVE, VACCUM measures.
Capacities from 1 bar to 2000 bar.
Linearity and hysteresis 0,5%.
Measurement of the temperature of the fluid.
Connection 1/2" GAS Male.
Internal batteries included.
Protection class IP65.
Functions: ZERO, FILTER, PEAK, AUTO POWER OFF.
Calibration certificate on resquest.
Digital manometers for RELATIVE, ABSOLUTE, DIFFERENTIAL, VACCUM measures.
Capacities from 1 bar to 2500 bar.
2 SET POINT programmable with relays output.
Measurement of the temperature of the fluid.
Linearity and hysteresis 0,15%.
Connection 1/2" GAS Male.
Options : USB, RS232, analog independant outputs
Digital manometers for RELATIVE, ABSOLUTE measures.
Capacities from 1 bar to 2000 bar.
2 SET POINT programmable with relays output.
Linearity and hysteresis 0,2%.
Connection 1/2" GAS Male.
External Power supply 12 or 24Vdc.
