Standard Load cell
Discover our large range of strain gage force sensors In traction and compression, allowing to measure load from ± 10kg to ± 500 tons with a high accuracy.

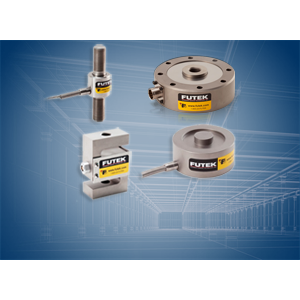

3 kinds of tension compression Load cell :
- “Pancake”' type.
- “S” type.
- "In line" Load cell.
Tension & compression S Beam Load Cell.
Capacities : +/- 50, 100, 200, 500, 1000, 2000, 5000, 10000 Lb.
Rated output : ± 2 mV/V.
Non Linearity <0.1%.
Material: Aluminium, stainless steel.
Connector or cable output.
Tension & compression S Beam Load Cell.
Capacities : +/- 25, 50, 100, 300 Lb.
Rated output : ± 2 mV/V.
Non Linearity <0.05%.
Overload Protection.
Material: Anodized Aluminum.
Connector or cable output.
- High capacity Compression Load Button Load Cell.
- Capacities : 0 to 15000, 20000, 30000, 50000 Lb.
- Rated output : 2 mV/V.
- Non Linearity : 0.5%.
- Material : Stainless steel.
Teflon Cable output.
- Tension and Compression Pancake Load Cell.
- Capacities :
- - LCF450 : +/- 250, 300, 500, 1000, 2000, 3000, 5000, 10 000 Lb.
- - LCF500 : +/- 20 000, 30 000, 50 000 Lb.
- - LCF550 : +/- 100 000 Lb.
- Rated output : ± 2 mV/V, ± 4 mV/V.
- Non Linearity : 0.1%, 0.2%.
- Material : Aluminium and Stainless steel.
- Connnector output.
- Compression Donut Load Cell.
- Capacities : 0 to 10 000 Lb.
Variable inside diameter to specify : 3/8, 1/2, 5/8''. . - Rated output : 2 mV/V.
- Non Linearity : 0.5%.
- Material : Stainless steel.
Teflon Cable output.
Capacities : 0 to 2, 3, 5, 7.5, 10, 15, 20, 30, 50 KLb.
Variable inside diameter to specify : 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8', 3/4, 7/8, 1 1/4 ''.
Rated output : 2 mV/V.
Overload : 150% of capacity.
Non Linearity : 0.5%.
Material : Stainless steel.
Teflon Cable output.
Force Washer Load Cell.
Capacities : +/- 2000 Lb.
Rated output : 0.8 mV/V.
Non Linearity : 1 %.
Central hole diameter : 1 3/4" [44.5 mm].
Operating Temperature : -60 to 212 °F (-50 to 100 °C).
Material : Anodized Aluminum.
Cable output.
Tension and Compression Threaded Rod Load Cell.
Capacities : +/- 20000, 50000 Lb.
Rated output : 2 mV/V.
Non Linearity : 0.2%.
Material : 17-4 PH stainless steel.
Cable output.
Tension & compression S Beam Load Cell.
Capacities : +/- 10, ..., 1000 daN.
Rated output : ± 2 mV/V.
Non Linearity : 0.1, 0.03, 0.02 %.
Protection IP65.
Material: Anodized aluminium alloy.
Available options : integrated amplifier output 10V or 4...20 mA, ATEX, high service temperature (150 °C).
Low profil compression load cell design for press control, Silos, tanks, hoppers, Reactors weighing.
Measuring Range: 0 to 0.3 - 0.5 - 0.75 - 1 - 1.5 - 2 - 3 – 5 – 7.5 – 10 – 15 - 20 Tonnes.
Rated Output: ± 1.5 mV/V.
Non linearity: 0.25%, 0.1%.
Degree of protection: IP67.
Material: Stainless Steel.
Available options : integrated amplifier output , ATEX, high service temperature (150 °C).
Tension & compression In line Load Cell.
Capacities : +/- 10 KN to +/- 30MN.
Rated output : ± 2 mV/V.
Non Linearity < 0.1%.
Protection IP66.
Material: Stainless steel, Nickel plated steel.
Available options : integrated amplifier output 10V or 4...20 mA, ATEX, high service temperature (180 °C).
Force transducers for the measurement of static and dynamic loads in compression and tension.
Measuring Range: 0.5, 1, 2.5, 5, 10, 20, 30, 50, 100, 200, 300, 500 Tonnes.
Rated Output: ± 2 mV/V.
Non linearity: 0.1%.
Degree of protection:
Degree of protection: IP67.
Material:
Material: Stainless Steel.
Cable output: 5 m.
Option WIRELESS avalaible
Force transducer suitable for material testing machines and test benches in general.
Measuring Range: 0.5, 1, 2.5, 5, 10, 20, 30, 50, 100 Tonnes.
High mechanical resistance.
Completely made of stainless steel.
Completely LASER welded.
Non linearity: 0.1%.
Degree of protection IP40.
Long term stability.
Serial output RS232C on request.
Force transducers for the measurement of static and dynamic loads in compression and tension.
Measuring Range: +/- 3, 5, 7.5,10, 50,100,150, 200, 300,... , 3000 kN.
Rated Output: ± 2 mV/V.
Non linearity: 0.1%, 0.2%.
Degree of protection: IP66.
Material: Aluminium, Stainless Steel.
Available options : integrated amplifier output , ATEX, high service temperature (150 °C).
Fatigue Rated Low Profile Universal Pancake Load Cell.
LCF451 : +/- 250, 500, 1000, 2500, 5000 Lb.
LCF501 : +/- 12 500, 25 000 Lb.
LCF551 : +/- 50 000 Lb.
Rated output : ± 2 mV/V.
Non Linearity : 0.1%, 0.2%.
Material : Aluminium and Stainless steel.
Connector output.
Tension and Compression Pancake Load Cell.
Capacities : +/- 250, 500, 1000, 2500, 5000 Lb.
Rated output : ± 2 mV/V.
Non Linearity : < 0.1%.
Material : Stainless steel.
Connector output.
Tension/Compression Load Cell with Male Center Stud.
Capacities : +/- 100, 200, 500, 1000, 2000, 3000, 5000 Lb.
Rated output : ± 1.5 mV/V.
Non Linearity : 0.25 %.
Material : Aluminium, stainless steel.
Capacities : +/- 1000, 3000, 10000 Lb.
Rated output : ± 2 mV/V.
Non Linearity : 0.5 %.
Material : Aluminium, stainless steel
