SMDNA - Compact Dynamometer for COMPRESSION and TENSION measurements
Compact Dynamometer for COMPRESSION and TENSION measurements
Nominal Loads from 100kg to 5t
Accuracy: 0.05% Class (ISO 376) 1
Autonomy 50 hours
Rechargeable battery
Functions of: ZERO, PEAK, FILTER
Programmable units: kg, t, N, daN, kN
Automatic shutdown
Sensor: stainless steel
Metal case
Log in to your account to display prices
Login
Login

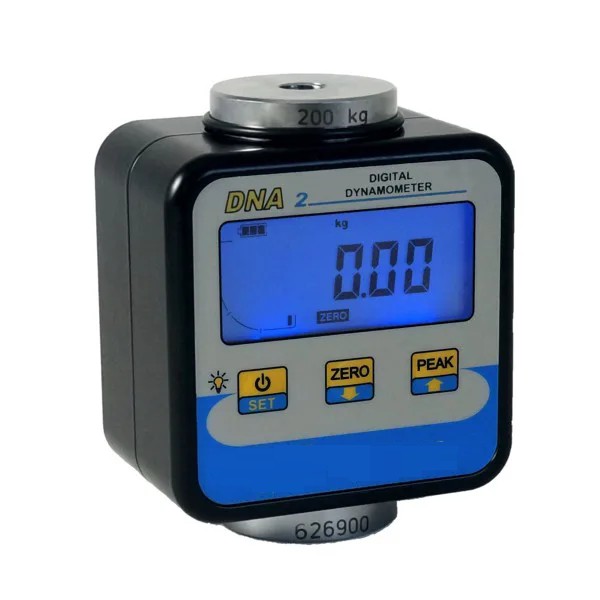

The SMDNA2 is a compact digital dynamometer featuring a strain‑gauge load cell and a next‑gen microprocessor.
-
Display: 5‑digit (13 mm) backlit LCD + load‑percentage bar graph
-
Power: Li‑Ion battery (50 h runtime), USB recharge (5 V DC adapter or PC), continuous USB operation
-
Units: kg, t, lb, kN, daN, N
-
Features: digital filter, adjustable resolution, auto‑off, peak hold in compression/traction
All settings are programmable via the onboard keypad.
SMDNA
Compact Dynamometer for COMPRESSION and TENSION measurements
Nominal Loads from 100kg to 5t
Accuracy: 0.05% Class (ISO 376) 1
Autonomy 50 hours
Rechargeable battery
Functions of: ZERO, PEAK, FILTER
Programmable units: kg, t, N, daN, kN
Automatic shutdown
Sensor: stainless steel
Metal case
