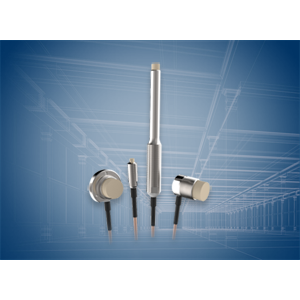

Eddy current probe
Eddy current sensors detect the distance or the change to metal objects without contact, dynamically and extremely accurately.
The TX electronics which are specially adapted to the respective sensor calculate an analogue output signal proportional to the distance.
In addition, there is a USB and CAN interface for reading the data.
Range 0.5 - 10 mm
Linearity max. ±0.15 %
Resolution 0.03 µm
Dynamic 124 kS/s
Protection class max. IP68
Operating temperature up to +185 °C
Range 0.3, 0.5, 1, 2 mm
Linearity max. ±0.15 %
Pressure resistance 200 bar.
Resolution 0.03 µm
Protection class IP68
Operating temperature up to +185 °C
Range 0.3, 0.5, 1, 2 mm
Linearity max. ±0.15 %
Pressure resistance 200 bar.
Resolution 0.03 µm
Protection class IP68
Operating temperature up to +185 °C
