Digital Magnetique Scale - Magnescale

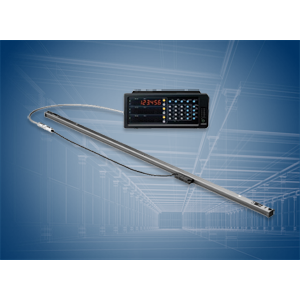

Magnescale (formerly SONY Precision Technology) scales consist of a rigid profile with integrated magnetic tape on which a movable reading head is mounted.
When shifting from registered magnetic pulses, this high precision sensor generates an incremental output signal which corresponds to the RS422 standard.
These digital length measuring devices are ideal for mounting on multi-axis systems, such as lathes and milling machines, or robot systems.
- Measurement ranges: 150 - 1600 mm
- Linearity : 10 µm
- Resolution : up to 5 µm
- Output signal : TTL Linedriver (RS422), AB / Quadrature Signal, Z
- Resistant against water, oil and vibrations
- Protection class : IP54
- Displacement speed : 60 mm/min
- Working temperature 0...+40 °C
- Easy mounting
- Measurement ranges: 70 - 3,640 mm
- Linearity : 3,21 µm
- Resolution : up to 0.01 µm
- Resistant against water, oil and vibrations
- Protection class : IP54, IP65
- Displacement speed : 50,200 mm/min
- Working temperature 0...+50 °C
- Easy mounting
- Measurement ranges: 150 - 1600 mm
- Linearity : 5 µm
- Resolution : up to 0.5 µm
- Output signal A/ B/ reference point, TTL-Linedriver according to EIA-422
- Resistant against water, oil and vibrations
- integrated reference point
- Protection class : IP54
- Displacement speed : 60 mm/min
- Working temperature 0...+40 °C
- Easy mounting
