Digital Magnetic Scale Series SR27A, SR67A, SR74, SR84 and Angular Encoders RS97, RU97, RU77- MAGNESCALE
- Measurement ranges: 70 - 3,640 mm
- Linearity : 3,21 µm
- Resolution : up to 0.01 µm
- Resistant against water, oil and vibrations
- Protection class : IP54, IP65
- Displacement speed : 50,200 mm/min
- Working temperature 0...+50 °C
- Easy mounting
Log in to your account to display prices
Login
Login
Applications

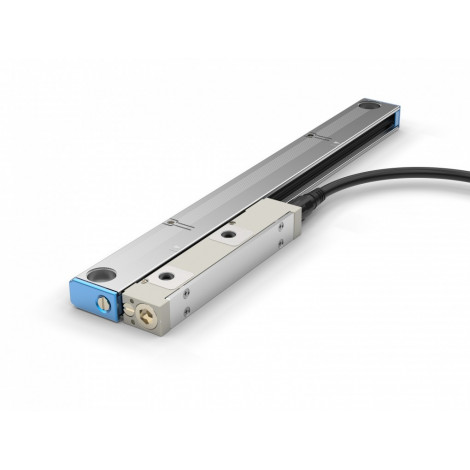

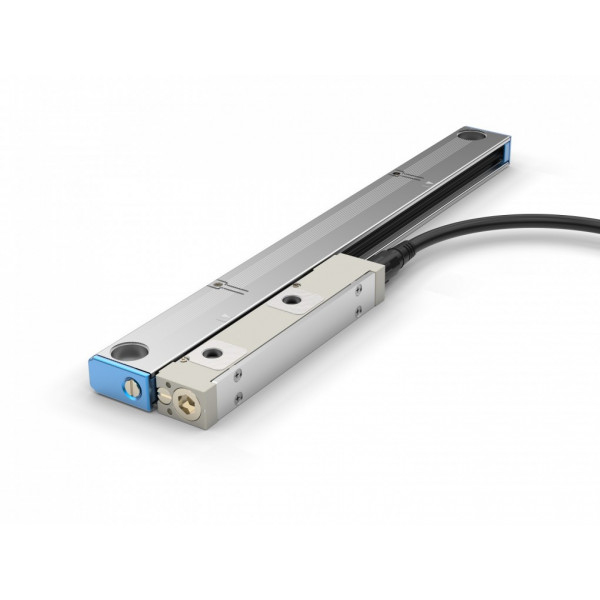

> <The absolute linear magnetic scale SR27A series of the MagneScale series has a measuring range of 70 to 2.040 mm with a resolution of 0.005 µm and a speed of 200 mm/min.
The SR67A series absolute linear magnetic scale has a measuring range of 140 to 3.640 mm with a resolution of 0.005 µm and a speed of 200 mm/min.
The incremental linear magnetic scale SR74 series of the MagneScale series has a measuring range of 70 to 2.040 mm with a resolution of 0.05 µm and a speed of 50 mm/min.
The SR84 series incremental linear magnetic scale measures in the range 140 to 3.040 mm with a resolution of 0.05 µm and a speed of 50 mm/min.
The RS97 E series absolute circular encoder of the MagneScale series has a 96 mm diameter center hole, with an accuracy of ±2.5° and a resolution of 23 bits for a maximum speed of 5,000 rpm.
The RS97 N series absolute circular encoder has a central hole of 180mm diameter, with an accuracy of ±2.5° and a resolution of 23 bits for a maximum speed of 5,000 rpm.
The RU97 series absolute circular encoder has a central hole of 20mm (model A) or 22mm (model B) diameter, with an accuracy of ±2.5° and a resolution of 25 bits for a maximum speed of 2,000 rpm.
The RU77 series absolute circular encoder has a central hole of 20mm diameter, with an accuracy of ±2.5° and a resolution of 25 bits at a maximum speed of 2,000 rpm.
- Measurement ranges: 70 - 3,640 mm
- Linearity : 3,21 µm
- Resolution : up to 0.01 µm
- Resistant against water, oil and vibrations
- Protection class : IP54, IP65
- Displacement speed : 50,200 mm/min
- Working temperature 0...+50 °C
- Easy mounting
