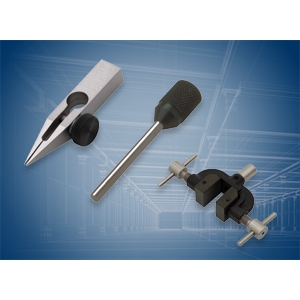

Attachments & Accessories
Find all the fixings and Accessories compatible with our solutions of dynamometers and test benches adapted for all your applications:
Compression and traction measurement, Cable lug crimping test bench, Cable and wire tension measurement, Peeling test, friction coefficient measurement ...
Our solutions are used in a large number of sectors and industries: Automotive, Aeronautics, Manufacturing plant, food industry, medical, textile, cosmetics ...
You will also find videos featuring our test benches equipped with various accessories.
Complete catalog of test bench fixings and accessories for all your applications.
Find all the Fixings and Accessories in the tab below "Attached documents".
Urethane finger simulates the size and feel of a finger. Not suitable for touch screens
- 50N capacity
- 16mm diameter
Attachment of different shapes and sizes, for various types of compression tests.
- PC-5040 Φ40mm, PC-5060 Φ60mm,PC-5100 Φ100 mm
- SQ-5030 30x20mm, SQ-5075 75x50mm, SQ-5150 150x100mm
- SP-5010 Φ10 mm, SP-5020 Φ20mm, SP-5030 Φ30mm
SC-3/8 is small grip with 150N capacity. It is ideal for tension testing of small samples such as fiber and hair where space is limited. (the Max. opening width 1mm)
- SC-3 (3mm wide, 22 Lb capacity)
- SC-8 (8mm wide, 35 Lb capacity)
Fine Point Chucks for low force tensile tests of wires within a confined space, Fine Point Chucks are ideal. The jaws have a maximum opening width of 0.5mm.
- FP-50 (0.5mm open)
- 22 Lb capacity
PG-2/3/4/5 is pin gauge for compression testing with 200N capacity. It is ideal for penetration and puncture testing for evaluating stiffness of sponge and similar. It can also be used for low capacity compression testing in narrow space due to its thin and compact design.
- PG-2 (2 mm)
- PG-3 (3 mm)
- PG-4 (4 mm)
- PG-5 (5 mm)
- Capacity 200N
CP-150N is pin gauge with 150N capacity. It is designed to grip wire-shaped samples up to diameter of 3.2mm.
Designed to grip wire-shaped samples up to diameter of 3.2mm.
Suitable for low capacity measurement in narrow space due to compact and light-weight design
Thin Film Grips are designed for tensile testing of thin substrates up to 2mm thick (film, paper) . 20 and 40 mm wide variations.
U version features urethane teeth to reduce likelihood of tearing on very thin samples.
- FC-20 (20mm wide)
- FC-21U (with urethane teeth)
- FC-40 (40mm wide)
Heavy duty flat chucks, square serrated face. Different sizes available. Ideal for pulling thin, flat objects.
- GC-1100 (10mm open, 220 Lb capacity, M6 thd)
- GC-1200 (20mm open, 220 Lb capacity, M6 thd)
- GC-5000 (30mm open, 1100 Lb capacity, M10 thd)
Pincer Wedge Grips are all purpose serrated jaw grips for tensile testing.
Pincer design allows the jaws to open wider than standard wedge grips.
- PGC-0510 (110 Lb capacity)
- Jaw face width: 10mm
- Opening width: 0-15mm
PGC-0505 is pantograph ｇrip with 500N capacity. Its wide opening and clothespin shaped designIt makes it easy to grip samples. It is ideal for tension testing of a wide range of samples such as film, rubber, paper, and lead wire for electronic components.
High Capacity Pincer Wedge Grips are all purpose, spring-loaded, serrated jaw grips for tensile testing. High capacity pincer jaws have a capacity of 550 Lb and an M10 mounting thread.
KC-100/1001/5000 is wedge grip with 5000N capacity. It performs measurement accurately and easily due to its self-tightening wedge design.
It is ideal for tension testing of wire and cables.
- KC-100 (110 Lb capacity)
- KC-1001 (220 Lb capacity)
- KC-5000 (1100 Lb capacity)
Check up to 2 AWG with these test mounts. The top mount accommodates 4, 6, 8, 10, and 12 mm diameters ferrule terminals. The lower fixture can accommodate wire up to 30 mm diameter.
- CH-5000N Wire crimp terminal grip (6-12mm diameter)
- CW-5000N Wire fixture table (30mm diameter)
Tape grips with a self-tightening “buckle-type” mechanism. This design ensures slip free operation during testing.
- TG-30 (30mm wide)
- TG-50 (50mm wide)
- capacity 500N
GR-30/2000 is cam grip with 2000N capacity. It enhances measurement efficiency by easy one-touch clamping of sample. It is ideal for tension testing of thin rectangular-shaped sample such as paper and rubber sheet.
- GR-30 (for samples up to 30mm wide and 2mm thick) 110 Lb capacity
- GR-2000 (for samples up to 50mm wide and 4mm thick) 440 Lb capacity
FW-12/PW-4 is rotary wire terminal fixture with 1000N capacity. It enhances measurement efficiency by simply rotating the wheel to set samples of different sizes. It is designed for tension strength testing of crimped terminal.
GP-15/30 is knurled cam grip with 1000N capacity. It reduces breakage of sample due to cam mechanism. It is ideal for tension testing of soft and extensible samples such as wire and plastic.
Ideal for tension testing of soft and extensible samples such as wire and plastic
Reduces breakage of sample due to cam mechanism
2 models available; for force gauge (GP-15) and for test stand (GP-30)
CH-500N is terminal clamp jig with 500N capacity. It enables quick and easy sample setting by simply turning its knob to open the jaws and hooking the sample. It is designed to perform wire crimp pull test.
Spring-loaded wire wedge grip automatically grips a wire sample at a consistent gripping force.
The wedge design tightens the jaws as the wire is pulled.
Opening width: 5mm.
Capacity 500 N.
WC-30 : 500 N (110 lbf) capacity
WC-2000 : 2000 (440 lbf) capacity
GTW-50L/50R is self-centering vise grip with 1000N capacity. Its self-centering design makes sample alignment easy. It is mountable to a vertical test stand for fixing samples.
GTW-2500N is self-centering vise grip with 2500N capacity for the vertical type test stand. It enables to fix the samples at the center due to self-centering design
XY-500N is XY-table with 1000N capacity. It is ideal for tension and compression testing of small samples such as PCB due to the ability to adjust sample position finely (every 0.8mm).
Travel on X, y: +/- 30mm
P45-50N is 45 degree peel test fixture with 50N capacity. It is ideal for peel test of packaging film especially in food and medical industries.
- Sample height: 10 to 90mm
- Sample diameter: 20-140mm
P90-200N is 90 degree peel test fixture with 200N capacity. It is ideal for 90 degree peel test of adhesives such as tapes, glue, stickers etc. It enables testings complying with the corresponding part of IEC, ISO, ASTM, JIS, etc. (only for P90-200N)
P180-200N is 180 degree peel test fixture with 200N capacity. It is ideal for 180 degree peel test of adhesives such as tapes, glue, stickers
PR-500N/2500N is press test fixture with 2500N capacity. It is ideal for durability test of retort pouch or heat sealing packaging.
- PR-500N (500 N capacity)
- PR-2500N (2500N capacity)
TKS-20N/250N is film puncture testing fixture with 250N capacity. It designed for puncture strength testing of thin samples including film with included table to fix the sample and pin to stick the sample.
Designed for puncture strength testing of thin samples including film
Contains table to fix the sample and pin to stick the sample for easy testing
Simple affordable type for low force and standard type available to meet your testing requirements
Custom-made solutions to suit your testing samples and requirements by changing material, size and capacity
BT-500N/5000N/5000N-CB is 3-point bending test fixture with 500N/5000N capacity. It is suitable for 3-point bend test of flexural, rigid, semi-rigid samples such as metal plate or round bar form materials samples.
The MED-NPT-200N series is an accessory for measuring needle bonding forces for capacities up to 200N. It is designed to evaluate the pull-out force required to separate the needle from its hub. It allows testing in accordance with the relevant part of the ISO and JIS standards.
The MED-ACU accessory is intended for strength and sharpness testing of acupuncture needles for 2N capacities. It is designed to measure the strength and sharpness of acupuncture needles in accordance with the relevant parts of the ISO and JIS standards.
SJS-100N-L/S is alignment stage with 100N capacity for solder joint strength test of QFP lead (lead free solder) or IC chips.
It allows easy and fine position adjustment of tiny parts.
The stage angle is switchable to 45 or 90 degrees.
▪ Pinching and opening (spreading) action-force measurement jig for small size objects.
▪ Designed to measure a variety of industrial, medical, and daily use products such as: - Pinch and Double handle tools - Forceps, Nippers, Pliers, Clamps, Pincer and Tongs.
▪ The scale attached helps easy measuring widths adjustment.
▪ Measurement with simple steps of only mounting a force gauge, and lightweight to carry.
