Digital Display

IPM650 Intelligent Panel Mount, for Load Cells, Torque Sensors and Pressure Sensors.
NEW: USB2 output for Data acquisition.
High accuracy (±0.001%).
5 to 4800 sample per second selectable rate.
Analog Output, TEDS and USB Output.
14 Sensor Profile Storage.
Dimension: 3.8” (96 mm ) X 3.8” (96 mm) X 6.5” (32.6 mm) - (L X W X D).

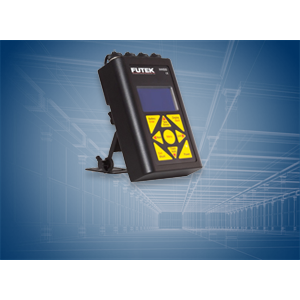

Intelligent Digital Handheld Display for Load Cells, Torque Sensors and Pressure Sensors.
5 to 4800 sample per second selectable rate.
Analog Voltage and Current Output.
14 Sensor Profile Storage.
TEDS & USB Output.
Dimension: 4” (101 mm ) X 1.7” (43 mm) X 6” (153 mm) - (L X W X H).

• Professional Digital Indicator with 1 (standard)or 2 (option) inputs, suitable for receiving signals from strain gauge sensors, transmitters with voltage or current output, PT100, potentiometer, ENCODER and LVDT.
• High accuracy (±0.005%).
• 2.55 to 4800 sample per second selectable rate.
• OPTIONS : One or two Analog Outputs programmable,  serial RS232, serial RS485 line with protocol MODBUS RTU, WIRELESS transmission, A DATALOGGER.

• Professional Digital Indicator with 1 (standard)or 2 (option) inputs, suitable for receiving signals from strain gauge sensors, transmitters with voltage or current output, PT100, potentiometer, ENCODER and LVDT.
• Function standard :  DATALOGGER & USB ouput.
• High accuracy (±0.005%).
• 2.55 to 4800 sample per second selectable rate.
• OPTIONS : One or two Analog Outputs programmable,  serial RS232, serial RS485 line with protocol MODBUS RTU, WIRELESS transmission.

Load Cell, Pressure and Torque Bridge Inputs.
Selectable range Input  : +/- 24 mV or +/- 240 mV.
Power supply 85 ... 250 Vac (Option 10-30 VDC and 24 VAC, PAXS0010).
Dimension : 1/8 DIN (50 mm x 97 mm), 5 Digit, 0.56" (14 mm) LED.
Sensor excitation : 5 or 10 VDC.
Protection : IP65.

Display for force, torque, pressure sensor.
5 digit LED display: -19999 to +99999.
Input signals: mA, V - mV/V mV.
Communication: RS2 Serial RS232C, RS4 Serial RS485, ETH Ethernet.
Three-color LED to display the measurement status.

• Analog Input : 0...10V; ±10V; 0...5mA; 4...20mA
• Sensor excitation 5...24 Vdc
• Digits: 4 or 6
• Character size: 100 or 125 mm (or 53mm 6-digit model only)
• Display :
• - 999 to 9999 or -99999 to 999999
• - High brightness red or green LED
• - Tricolor LED
• Speed: Up to 40 measurements per second
• Units of measurement: Can be displayed on the last 2 digits of model 6
• Programming: Infrared remote control
• Alarm signal: LED + relay
• Operating Temperature : -20 to 60°C
• Storage temperature: -20°C to 85°C
• Material: Black anodized aluminum
• Protection: IP64

• Digital display for torque sensors SM2000, 3000 and 4000.
• Torque, angle and speed measurement.
  SD flash memory card and USB output.
• Power supply  15 ... 30V.
• Two individual relays - 1 A / 125 V AC or 2 A / 30 V DC.
  Windows Software included.
• Temperature range from +5°C to +50°C.

• Display : 7-inch LCD touch screen
• Display settings: 2 to 16 channels displayed
• Features: Measurement mode, Bar graph measurement, Alarm display, Reset, Preset.
• Measurement Modes: Current, Max, Min, P-P
• Connectable modules: Up to 4 MG80-MA
• Calculations: Up to 16 addition/subtraction combinations per connected MG80-MA module

- Counter for milling machines and lathes

- Display resolution switching

- Connectable measuring units Series GB-ER, SJ300, SJ700A, reading head PL20C, DK digital gauge series (with cable CE29)

- Input signal: A/B quadrature

- Machine error compensation

- Models with 1, 2, or 3 axis

- Reset, Preset, Restart

- Data storage

- Scaling function (only LH71)

- Detecting reference point of measuring unit

- Program function

- Selectable display resolution

- Input signal: A/B quadrature (according to RS422)-

- Connectable measuring unit Series GB-ER, Series SJ300, Series SJ700A, Reading head PL20C

- Machine error compensation

- Models with 1, 2, or 3 axis

- up to 3 preset values per axis

- Flicker control

- Data storage

- For digital gauge series DK and DK800S

- LT10A: maximum resolution 5 µm

- LT11A: maximum resolution 1 µm

- LT30: maximum resolution 0.1 µm

- Current, maximum/minimum and

 P-P value measuring function

- Comparator function

- Models with 1 or 2 axis

- 2 axis ADD/SUB function

- Models with BNC or RS232 interface

- Data storage

Univeral DC Input digital display.
4 Voltage (300 VDC Max) and 5 Current (2A DC Max) Ranges.
3 Resistance Ranges - 10K ohm max.
Power supply 85 ... 250 Vac (Option 10-30 VDC and 24 VAC, PAXS0010).
Dimension : 1/8 DIN (50 mm x 97 mm), 5 Digit, 0.56" (14 mm) LED.
Protection : IP65.

Process meter for sensors with amplified current or tension output.
Selectable range Input  : 20 mA or 10 VDC.
Power supply 85 ... 250 Vac (Option 10-30 VDC and 24 VAC, PAXS0010).
Dimension : 1/8 DIN (50 mm x 97 mm), 5 Digit, 0.56" (14 mm) LED.
Protection : IP65.

• Input :
  - 0-5VDC (CMCP 505)
  - 4-20mA (CMCP 510-511)
• Supply current : 5 - 40VDC
• Supply voltage : 15mA (max)
• Accuracy : ± 0.05% of full scale
• Display type :
  - 9.4 mm, 3.5 Digit, bright red LED
  - 9.4 mm, 3.5 Digits, LCD
• Sampling rate : 2.5 readings per second
• Operating Temperature : 0°C to 60°C (32°F to 160°F)
• Storage temperature : -40°C to 75°C (-40°F to 167°F)
• Weight : 17g
• Dimensions : 35.1 x 24.1 x 22.4 mm
• Material : Polycarbonate

• Measuring range: Programmable from 0 to 9999 with the decimal point setting
• Accuracy: 1% of full scale
• Display Type: 10mm, 4 Digit
• Response time: 20ms
• Relay states: selectable with or without latching
• Alarm indicator: LED indicator on the front panel
• Alarm reset: Push button on the front panel or remote control
• Signal output: 4-20 mA for retransmission
• Operating temperature : -40°C to +71°C
• Weight: 198g
• Dimensions: 100 x 88 x 86 mm
• Material :
  - UV resistant polycarbonate
  - Cast aluminum with epoxy finish (explosion-proof model)
• Protection: IP68
• NEMA 4X certified (explosion-proof model only)
