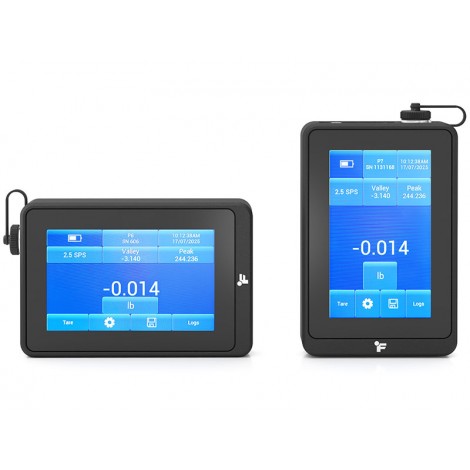

IHH505: Touchscreen handheld display and logger (usb output)
Battery-powered Touchscreen and Logger for High-Precision Measurements from mV/V, VDC, and mA Sensor
5 to 4800 sample per second selectable rate.
13 Sensor Profile Storage.
TEDS & USB Output.
High-resolution 6-digit 5” display with selectable decimal point
Log up to 16 sessions with more than 2.7 million points each
Provides 12 selectable ADC sampling rates ranging from 2.5 to 4800 SPS
ASCII Streaming for system integration

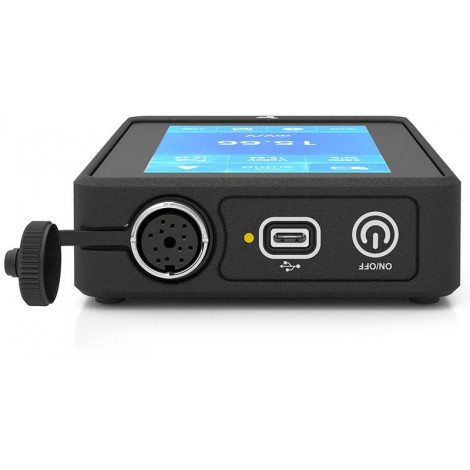

Rechargeable battery with extended runtime and USB-C Charging
Log in to your account to display prices
Login
Login
Applications
> <
Automatic Capping Machine
Automated Vertical Farming
What is Bolt Clamping Force?
Wire Crimp Pull Tester
Torsion / Axial Torque Testing
Press fit force determination of an assembly
Digital Bottle Cap Torque Tester
Precision Measurement Scale
Prone Stereotactic Biopsy
Shackle pin load cell
191 Engine Dynamometer Load Cell
Measuring mass flow with a load cell
Dual Tank Level Controller
Humanoid Robot Load Cell
341 Vise Clamping Force Test
342 Load Cell Torque Measurement
Agricultural Poultry Feeder
Dental Handpiece Torque Auditing
Bottle Dispensing and Weighing
Non-Magnetic Sensors Solutions
Vacuum Compatible Sensors
Fruit/Vegetable Penetrometer
Pill Press Force Verification
Sailing Ship Rigging Tension
UAV Launcher Force
Satellite Reaction Wheel Torque
Servo Motor Torque Control
Die-Attach Force Measurement
Ultrasonic Welding Clamp Force
Shark Bite Force Measurement
Reindeer Autopilot System
Exoskeleton for Paraplegics
Prosthetic Foot Emulator
Precision Wire Tensioner
Prosthetic Hip Fatigue Testing
Automotive Touchscreen Haptic Feedback
Medical Valve Sensors: TAVR Fatigue Testing
Package Drop Test Machine
Rocket Engine Thrust Stand
Hinge Fatigue Testing
Suspension System Performance Validation
Plastic Injection Molding Force Feedback
Stanford Solar Car Dyno
Bag Sealer Validation
Valve Torque Testing
OEM Torque Motor Test Stand
Robotic Leg Rehabilitation Device
Robotic Glove Rehabilitation Device
Industrial Automated Robotic Arm
Quadcopter Propellor Torque and Thrust Testing
USB Insertion/Extraction Motorized Test
Automotive Seat Durability Testing
Medical Guidewire Test
Wire Bond Testing
Spring Testing System
Wind Tunnel Testing
Catheter Torque Test
Trackpad / Touchpad Test Stand
Power Window Pinch Test
Laparoscopic Calibration
Catheter Force Measurement
Arbor Press Verification
Reliability Test Stand
Reliability Test Stand
Weighbridge Measurements
Landing Gear Drop Test
Catheter Track Force Test
Biomedical Research
Batch Weighing
Medical Patient Lift
Multihead Weigher
Snow Shoes Testing
Automation Container Filling
Portable Crane Weighing
Industrial Robotic Automation
Aircraft Control Column
Helicopter Cyclic Sensors
OEM Test Stand
Jet Parachute Deployment
Toggle Clamp
Syringe Test Stand
Tank Dispensing
Linear Test Stand
Silo Measurement
Hydraulic/Pneumatic Press Force
Medical Bag Weighing
Automotive Pedal Force Testing
Torque Verification/Calibration
Industrial Wire Tension Measurement
Helicopter Pedal Force Testing
Nut Runner Force/Torque
Bolt Fastening
Wire Tension Measurement
Motor Test Stand
Robotic Tactile Sensing
DNA Synthesis
Bite Force Measurement Study
Behavioral Phenotyping
Material Force Testing
Automated Capping Press
Tube Expansion Measurement

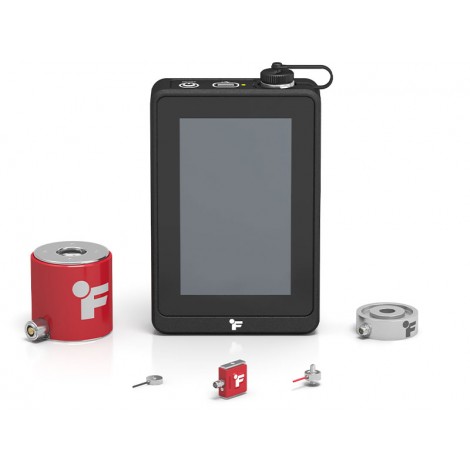

The SensLog is the latest advancement in FUTEK’s IHH line—a high-performance,battery-powered handheld display engineered for precise measurement and supports multiple input types for broad sensor compatibility (mV/V, mA, and VDC). Its large internal memory of up to 40 million storage points allows for extended data logging and in-depth post-process analysis. Built for demanding environments, the SensLog delivers reliable performance in research, testing, and industrial applications.
FUTEK’s ISO-certified calibration lab ensures precision and compatibility across a range of sensors. The IHH505 Pro supports 3 fixed and 13 user-definable calibration profiles, along with universal unit conversion for load, torque, pressure, temperature, and displacement—offering flexibility, accuracy, and simplified data interpretation.
Features
- Wide Range of Sensor Inputs: Up to ±16 mV/V, up to ±12 VDC, and up to 30 mA.
- High-Speed Sampling Rate: Up to 4,800 SPS for static and dynamic measurement.
- Noise-Free Resolution: Up to 20 bits (±5 mV/V), up to 18.8 bits (16 mA), and up to 21.4 bits (±10 VDC).
- Large Storage Capacity: Stores up to 40 million data points across 16 logs.
- Fault-Detection Capabilities: Open/short circuit detection, temperature out-of-range warnings, low memory warnings, and 24V on-board supply warning with automatic cutoff to protect the device.
- Protection Features: Built-in ESD and active over-voltage/over-current protection.
- High-Visibility, Durable Display: Optically bonded 5” Gorilla Glass capacitive touch IPS display (800 × 480 px).
IHH500
Battery-powered Touchscreen and Logger for High-Precision Measurements from mV/V, VDC, and mA Sensor
5 to 4800 sample per second selectable rate.
13 Sensor Profile Storage.
TEDS & USB Output.
High-resolution 6-digit 5” display with selectable decimal point
Log up to 16 sessions with more than 2.7 million points each
Provides 12 selectable ADC sampling rates ranging from 2.5 to 4800 SPS
ASCII Streaming for system integration
Rechargeable battery with extended runtime and USB-C Charging
