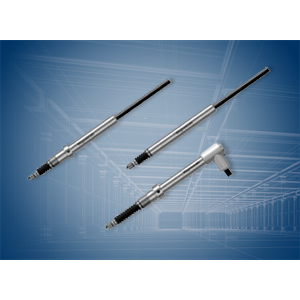

Digital Gauges - Magnescale
Magnescale gauges are high-precision sensors which, through their unique magnetic measuring principle, permanently achieve a resolving power of up to 0.1 microns and an accuracy of up to 1 micron, even under difficult conditions.
The newly developed shaft keyway bearing of the DK800S series guarantees a lifespan of more than 130 million strokes.
With their RS422 compatible output signal, digital gauges are the ideal sensors for automated manufacturing.
Ranges 12 mm, 30 mm, 60 mm
Resolution max. 1 µm
Linearity max. ±3 µm
Pneumatic version yes
Output signal TTL linedriver compliant with EIA-422, with MT
Voltage rating +5 VDC ±5 %, 9-26.4 VDC
Protection class max. IP64
- Available measurement ranges: 5, 12 and 30 mm
- Resolution up to 0.1 µm
- Linearity up to ±0.5 µm
- Output signal A/ B/ reference point, TTL- Linedriver according to EIA-422
- Integrated reference point
- Displacement speed up to 250 m/min
- Working temperature 0...+50 °C
- Protection class up to IP67
- Pneumatic versions available
- Easy installation
- Resistant against water and oil
- Life cycle up to 130 million strokes 30 mm, 60 mm
- Available measurement ranges:10, 25, 50, 100, 155 and 205 mm
- Resolution up to 0.5 µm
- Linearity up to ±2 µm
- Output signal A/ B/ reference point, TTL- Linedriver according to EIA-422
- Integrated reference point
- Displacement speed up to 250 m/min
- Working temperature 0...+50 °C
- Protection class ip50, IP64
- Easy installation
- Resistant against water and oil
- Spring loaded versions up to 100 mm range
- Available measurement ranges 5; 12 mm
- Resolution up to 0,1 µm
- Accuracy up to 1,0 µm
- USB (2.0FS) interface - free evaluation software for download
- Protection class up to IP67
- Spring loaded and pneumatic versions available
- Resistant against water and oil
- Life cycle up to 30 million strokes
