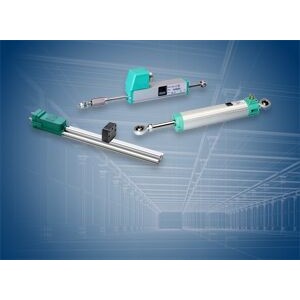

Angular and Linear position sensors
Sensel Measurement commercializes and designs a large range of linear potentiometer displacement sensors from +/-10mm up to 1m.
A linear displacement transducer converts a measured linear displacement in proportional electric signal.
Measuring Range : 5, 20, 50, 100, 250 mm.
Power supply : 2.5-5.25V, or 12-24V.
Signal output : 4-20mA,0-5V,0-10V, RS-232, or RS-485.
Accuracy 0.5% of Full Scale.
Misalignment and overstroke tolerant.
Water-proof and submersible (IP68).
Built-in environmental compensation.
- Industrial anlog angular position sensor
- Range : 90°/180°/340°/1080°/1800°/3600°
- Output =: 0...10V, 0...5V, 4..20 mA (2 ou 3 fils), potentiomètre 1kOHM
- Linéarity 0.25% (others on demand).
- Shock resistance < 300 m/s2 (11 ms)
- Vibration resistance <100 m/s2 (100...500 Hz)
- Nominal displacement : 3 mm
- Sensitivity: 0.3 - 1.8V
- Linearity: ± 1%.
- Operating temperature : -10 - 70°C
- Storage temperature: -20 - 80°C
- Material: Aluminum and Stainless Steel
- Weight : 150g
- Dimensions: 20Ø x 40 mm
- Protection: IP40
- Quantities 10 pieces.
- Measuring range: 12.5, 50, 75, 100, 125, 150, 175 mm.
- Material: Aluminium & Stainless steel.
- Repeatability: ≤0.01mm.
- Independent Linearity: ≤ +/- 0.5%.
- Mechanical Life: > 25 Million Cycles.
- Customs Options Available: Flange Mount, IP65 & IP67.
Measuring range: 25, 50, 75, 100, 125, 150, 175, 200 mm.
Material: Aluminium & Stainless steel.
Repeatability: ≤0.01mm.
Independent Linearity: ≤ +/- 0.5%.
Mechanical Life: > 25 Million Cycles.
Customs Options Available: Dual Output, Flange Mount, Return Spring, IP65 & IP67.
Measuring range: 25, 50, 75, 100, 125, 150, 175, 200, 250, 300 mm.
Material: Aluminium & Stainless steel.
Repeatability: ≤0.01mm.
Independent Linearity: ≤ +/- 0.5%.
Mechanical Life: > 25 Million Cycles.
Customs Options Available: Dual Output, Flange Mount, Return Spring, IP65 & IP67.
- Measuring range : 5, 10, 25, 50, 100, 200 mm
- Sensitivity: 2 mV/V (0.5 - 5.5V optional)
- Linearity: ≤ ± 0.10 %.
- Spring force: 2 to 4N
- Material: Stainless steel
- Connector: M12 4-pin
- Operating temperature : -10 to 70°C
- Storage temperature: -20 to 80°C
- Protection: IP40
- Measuring range from 0 to 25, 50, 75, 100, 150 mm.
- Mechanical linkage using joint with take up of play, M4 thread.
- Independent linearity up to ± 0.05%.
- Infinite resolution.
- Displacement speed up to 10 m/s.
- Protection IP40.
- Measuring range form 0 to 10, 25, 50, 75, 100 mm.
- Double support of the control rod and return spring.
- Tip with M2.5 thread and stainless steel ball.
- Independent linearity up to ± 0.1%.
- Infinite resolution.
- Protection IP40.
- Measuring range from 0 to 10, 25, 50 mm.
- Double support of the control rod and return spring.
- Tip with M2.5 thread and stainless steel precision bearing.
- Independent linearity up to ± 0.1%.
- Infinite resolution.
- Degré de protection IP40.
- Measuring range 0 to 25, 50, 100, 150, 200, 250 mm.
- Brackets, joints or flange fixation.
- Independent linearity up to ± 0.05%.
- Infinite resolution.
- Protection IP60.
- Measuring range from 0 to 25, 50, 100, 150, 200, 250, 300 mm.
- Mechanical fixing using brackets, selfaligning ball-joints or flange.
- Independent linearity up to ± 0.05%.
- Infinite resolution.
- Grade of protection IP60.
- Measuring range from 0 to 25, 50, 75, 100, 150 mm.
- Mechanical linkage using joint with take-up of play, M4 thread.
- Independent linearity up to ± 0.05%.
- Infinite resolution.
- Protection IP40.
- Measuring range from 0 to 50, 100, 150, 200, 300, 500, 750 mm.
- Mechanical fixing and selfaligning linkage using 2 ball-joints.
- Maximum angular movement up to ± 30°.
Independent linearity ± 0.05%. - Infinite resolution.
- Grade of protection IP65.
