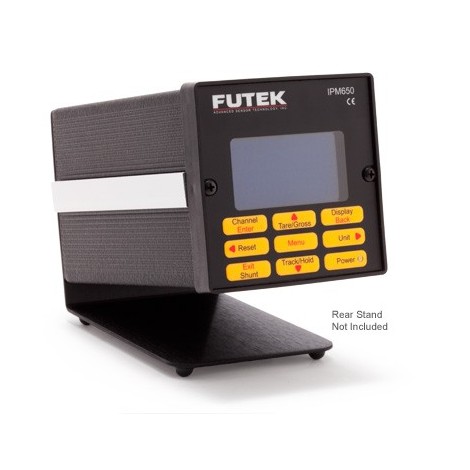

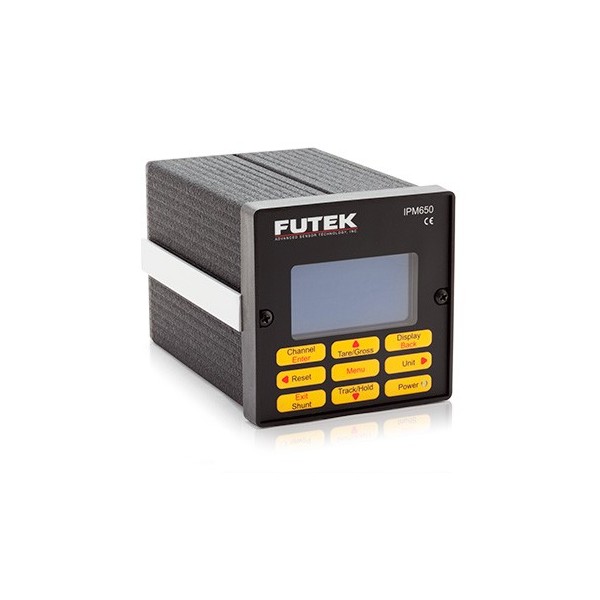

IPM650: Intelligent Panel Mount - USB Output
IPM650 Intelligent Panel Mount, for Load Cells, Torque Sensors and Pressure Sensors.
NEW: USB2 output for Data acquisition.
High accuracy (±0.001%).
5 to 4800 sample per second selectable rate.
Analog Output, TEDS and USB Output.
14 Sensor Profile Storage.
Dimension: 3.8” (96 mm ) X 3.8” (96 mm) X 6.5” (32.6 mm) - (L X W X D).
Log in to your account to display prices
Login
Login
Applications
> <
Automated Vertical Farming
What is Bolt Clamping Force?
Bearing Torque Tester
Breakaway Torque Measurement and Residual...
Wire Crimp Pull Tester
Torsion / Axial Torque Testing
Press fit force determination of an assembly
Digital Bottle Cap Torque Tester
Linear Actuator with Force Sensor
Precision Measurement Scale
Prone Stereotactic Biopsy
Shackle pin load cell
Measuring mass flow with a load cell
Dual Tank Level Controller
189 Crane Load Cell
341 Vise Clamping Force Test
342 Load Cell Torque Measurement
Agricultural Poultry Feeder
Bottle Dispensing and Weighing
Non-Magnetic Sensors Solutions
Vacuum Compatible Sensors
Fruit/Vegetable Penetrometer
Pill Press Force Verification
UAV Launcher Force
Satellite Reaction Wheel Torque
Servo Motor Torque Control
Die-Attach Force Measurement
Ultrasonic Welding Clamp Force
Shark Bite Force Measurement
Reindeer Autopilot System
Exoskeleton for Paraplegics
Prosthetic Foot Emulator
Precision Wire Tensioner
Prosthetic Hip Fatigue Testing
Automotive Touchscreen Haptic Feedback
Medical Valve Sensors: TAVR Fatigue Testing
Rocket Engine Thrust Stand
Package Drop Test Machine
Hinge Fatigue Testing
Suspension System Performance Validation
Plastic Injection Molding Force Feedback
Stanford Solar Car Dyno
Bag Sealer Validation
OEM Torque Motor Test Stand
Valve Torque Testing
Robotic Leg Rehabilitation Device
Robotic Glove Rehabilitation Device
Industrial Automated Robotic Arm
Quadcopter Propellor Torque and Thrust Testing
USB Insertion/Extraction Motorized Test
Automotive Seat Durability Testing
Medical Guidewire Test
Wire Bond Testing
Spring Testing System
Wind Tunnel Testing
Catheter Torque Test
Trackpad / Touchpad Test Stand
Power Window Pinch Test
Laparoscopic Calibration
Catheter Force Measurement
Arbor Press Verification
Reliability Test Stand
Reliability Test Stand
Weighbridge Measurements
Landing Gear Drop Test
Catheter Track Force Test
Biomedical Research
Aircraft Control Column
Helicopter Cyclic Sensors
Industrial Robotic Automation
Batch Weighing
Medical Patient Lift
Snow Shoes Testing
Multihead Weigher
Portable Crane Weighing
Automation Container Filling
OEM Test Stand
Jet Parachute Deployment
Toggle Clamp
Syringe Test Stand
Helicopter Pedal Force Testing
Nut Runner Force/Torque
Robotic Tactile Sensing
Wire Tension Measurement
Motor Test Stand
Bite Force Measurement Study
DNA Synthesis
Material Force Testing
Behavioral Phenotyping
Tube Expansion Measurement
Automated Capping Press
Tank Dispensing
Silo Measurement
Linear Test Stand
Medical Bag Weighing
Hydraulic/Pneumatic Press Force
Industrial Wire Tension Measurement
Automotive Pedal Force Testing
Torque Verification/Calibration
Bolt Fastening
The IPM650 Intelligent Panel Mount is FUTEK’s solution that can be easily integrated to work with Load Cells, Torque Sensors and Pressure Sensors. The IPM650 has an input range of up to +/-500 mV/V. Beside the mV/V input, device accepts amplified output sensors in range of ± 12 VDC or up to 30 mA.

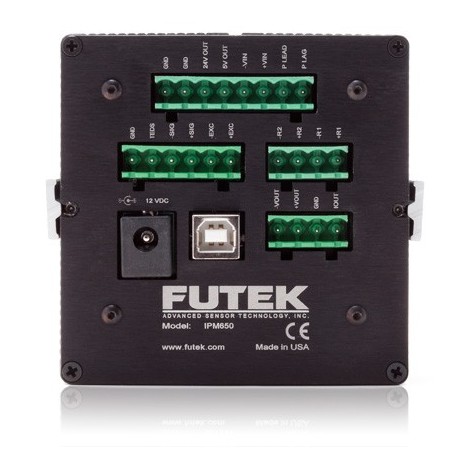

It also has two individual relays and two Analog voltage and Analog current output. This device provides additional 24 VDC / 5VDC as power supply for sensors with built-in amplifier. FUTEK’s Panel Mount also supports TEDS which makes it easy to switch between different sensors.
A high speed/ low noise/ high resolution (24 bits) ADC is integrated in the device to make it suitable for high accuracy measurements. This particular Panel Mount also has the capability of displaying values onto a computer through a USB link.
IPM650
IPM650 Intelligent Panel Mount, for Load Cells, Torque Sensors and Pressure Sensors.
NEW: USB2 output for Data acquisition.
High accuracy (±0.001%).
5 to 4800 sample per second selectable rate.
Analog Output, TEDS and USB Output.
14 Sensor Profile Storage.
Dimension: 3.8” (96 mm ) X 3.8” (96 mm) X 6.5” (32.6 mm) - (L X W X D).
