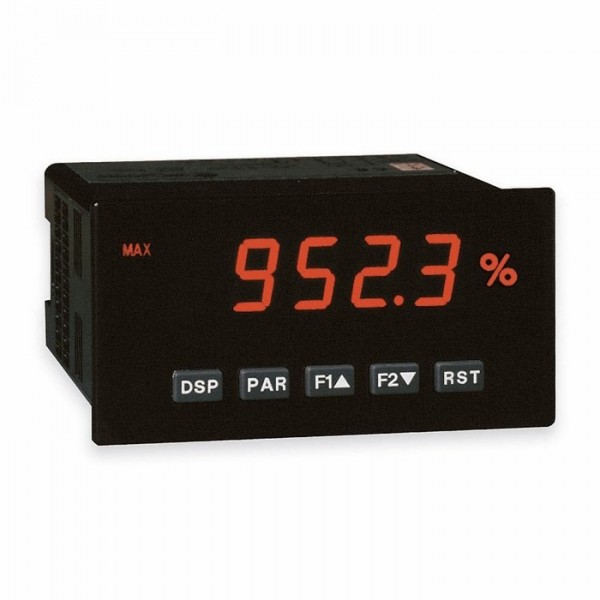

PAXS : Digital display for strain gage sensors
Load Cell, Pressure and Torque Bridge Inputs.
Selectable range Input : +/- 24 mV or +/- 240 mV.
Power supply 85 ... 250 Vac (Option 10-30 VDC and 24 VAC, PAXS0010).
Dimension : 1/8 DIN (50 mm x 97 mm), 5 Digit, 0.56" (14 mm) LED.
Sensor excitation : 5 or 10 VDC.
Protection : IP65.
