SM4: Tension and Compression Pancake Load Cell - Up to 500T
Force transducers for the measurement of static and dynamic loads in compression and tension.
Measuring Range: 0.5, 1, 2.5, 5, 10, 20, 30, 50, 100, 200, 300, 500 Tonnes.
Rated Output: ± 2 mV/V.
Non linearity: 0.1%.
Degree of protection:
Degree of protection: IP67.
Material:
Material: Stainless Steel.
Cable output: 5 m.

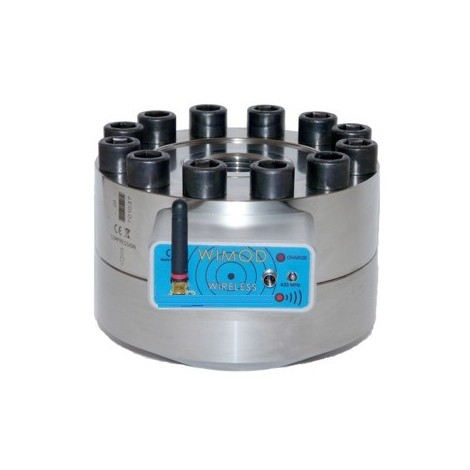

Option WIRELESS avalaible
Log in to your account to display prices
Login
Login
Applications
> <
342 Load Cell Torque Measurement
Pill Press Force Verification
Ultrasonic Welding Clamp Force
Prosthetic Hip Fatigue Testing
Package Drop Test Machine
Plastic Injection Molding Force Feedback
Automotive Seat Durability Testing
Automation Container Filling
Medical Patient Lift
Portable Crane Weighing
Tank Dispensing
Silo Measurement
Material Force Testing

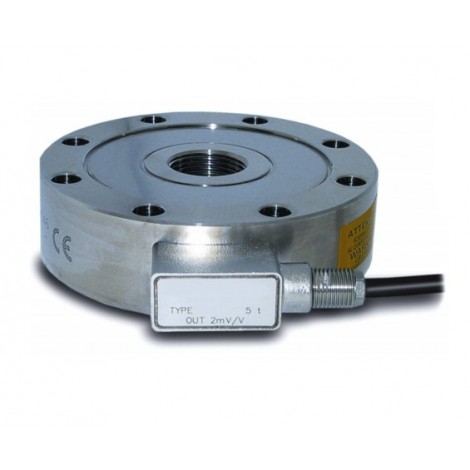

SM4 is a tension and compression "Pancake" load cell, with strain gage technology.
Force transducer suitable for material testing machines and test benches in general.
SM4 offers high accuracy, and long term stability thanks to is degree of protection IP67.
SM4
Force transducers for the measurement of static and dynamic loads in compression and tension.
Measuring Range: 0.5, 1, 2.5, 5, 10, 20, 30, 50, 100, 200, 300, 500 Tonnes.
Rated Output: ± 2 mV/V.
Non linearity: 0.1%.
Degree of protection:
Degree of protection: IP67.
Material:
Material: Stainless Steel.
Cable output: 5 m.
Option WIRELESS avalaible
