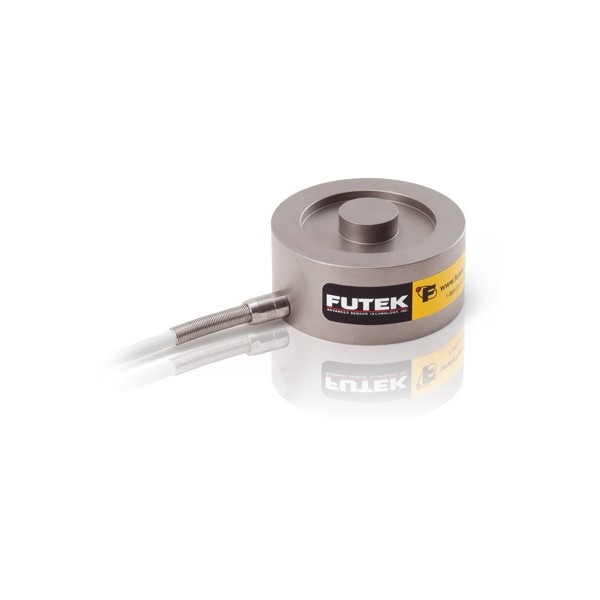

LLB500: Compression Load Button Load Cell from 0 to 15000, ..., 50000 Lb
- High capacity Compression Load Button Load Cell.
- Capacities : 0 to 15000, 20000, 30000, 50000 Lb.
- Rated output : 2 mV/V.
- Non Linearity : 0.5%.
- Material : Stainless steel.
Teflon Cable output.
Log in to your account to display prices
Login
Login
Applications
> <
What Sensors Do Humanoid Robots Have ?
Impact Force Measurement
Drop Ball Test
How To Measure Impact Force
Sensors used in 3D Printers
Battery Manufacturing Automation and Force Sensors
186 Bearing Load Measurement
341 Vise Clamping Force Test
Bag Sealer Validation
Laparoscopic Calibration
Arbor Press Verification
Reliability Test Stand
Waste Load Measurement
Batch Weighing
Snow Shoes Testing
OEM Test Stand
Robotic Tactile Sensing
Bite Force Measurement Study
Tube Expansion Measurement
LLB500 is a Load Button Load Cell used for Press, or Inline compression applications. The LLB500 model has a robust construction in Stainless Steel, with 4 conductor shielded Teflon cable.
Although Load Button force sensors are traditionally not known for their high accuracy, LLB500 offers a Nonlinearity of ±0.5% and low Deflection of 0.003” nominal. The standard LLB500 can be modified to meet your requirements.
LLB500
- High capacity Compression Load Button Load Cell.
- Capacities : 0 to 15000, 20000, 30000, 50000 Lb.
- Rated output : 2 mV/V.
- Non Linearity : 0.5%.
- Material : Stainless steel.
Teflon Cable output.
