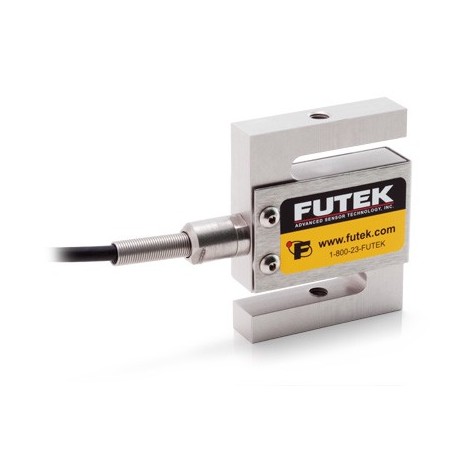

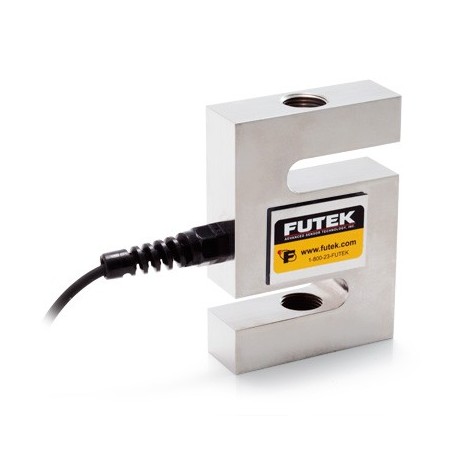

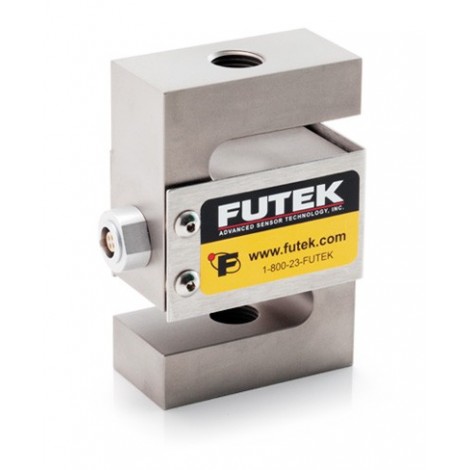

LSB350 -- LSB400 : S Beam Load Cell from +/- 50 Lb to 10000 Lb

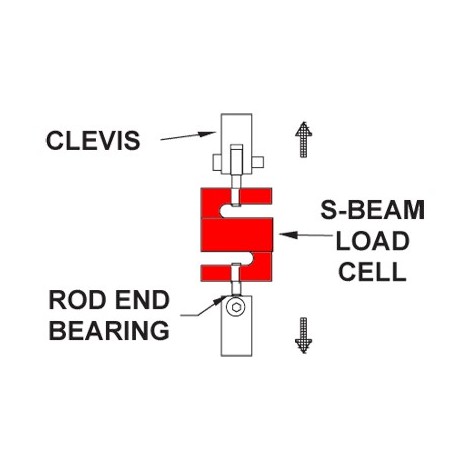

Tension & compression S Beam Load Cell.
Capacities : +/- 50, 100, 200, 500, 1000, 2000, 5000, 10000 Lb.
Rated output : ± 2 mV/V.
Non Linearity <0.1%.
Material: Aluminium, stainless steel.
Connector or cable output.
Log in to your account to display prices
Login
Login
Applications
> <
TAVR Valve Durability Testing
342 Load Cell Torque Measurement
Sailing Ship Rigging Tension
Fluid Flow Rate Measurement
Automotive Touchscreen Haptic Feedback
Medical Valve Sensors: TAVR Fatigue Testing
Robotic Leg Rehabilitation Device
USB Insertion/Extraction Motorized Test
Medical Guidewire Test
Wire Bond Testing
Spring Testing System
Trackpad / Touchpad Test Stand
Catheter Force Measurement
Reliability Test Stand
Catheter Track Force Test
Multihead Weigher
Automation Container Filling
OEM Test Stand
Syringe Test Stand
Linear Test Stand
Wire Tension Measurement
DNA Synthesis
Behavioral Phenotyping
Medical Bag Weighing
The S Beam Load Cell LSB300--LSB400 series is designed for use in silos, platforms, or scales. The S Beam Load Cell model has Female/Female threads, comes in Anodized Aluminum or Stainless Steel construction, and utilizes strain gauge technology. It is also available in metric threads.
The LSB serie has a high accuracy, low deflection and a wide operating temperature. This Load Cell can be customized to meet your requirements nd your application.(overload protetion, better accuracy, degre of protection, specific temperature range, ...)
LSB300 / LSB400
Tension & compression S Beam Load Cell.
Capacities : +/- 50, 100, 200, 500, 1000, 2000, 5000, 10000 Lb.
Rated output : ± 2 mV/V.
Non Linearity <0.1%.
Material: Aluminium, stainless steel.
Connector or cable output.
