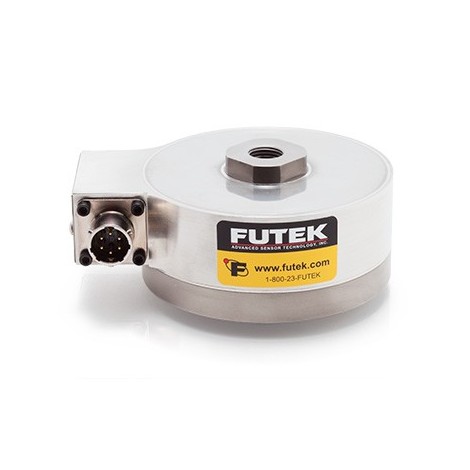

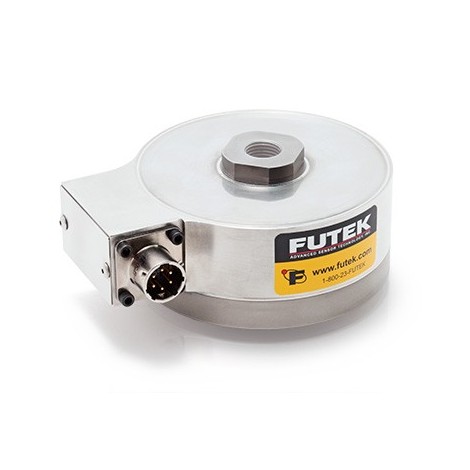

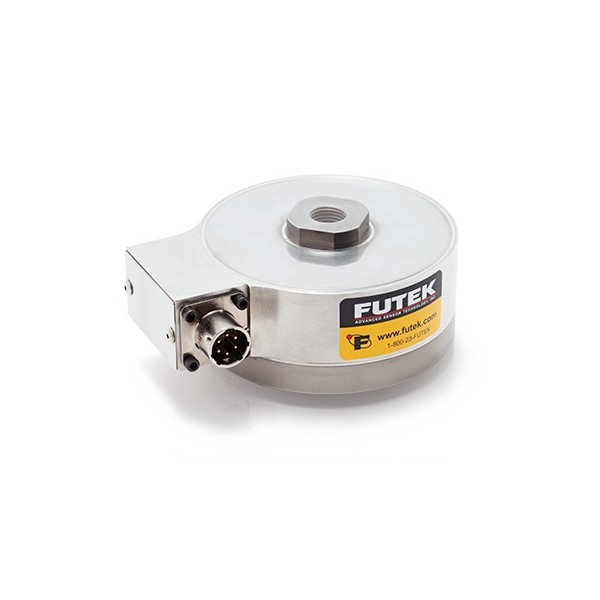

LCF400: Tension Compression Pancake Load Cell +/-250 Lb to +/-5000Lb
Tension and Compression Pancake Load Cell.
Capacities : +/- 250, 500, 1000, 2500, 5000 Lb.
Rated output : ± 2 mV/V.
Non Linearity : < 0.1%.
Material : Stainless steel.
Connector output.
Log in to your account to display prices
Login
Login
Applications
> <
Aircraft Structural Testing
Press fit force determination of an assembly
What is the clamping force in injection molding?
191 Engine Dynamometer Load Cell
Dual Tank Level Controller
189 Crane Load Cell
342 Load Cell Torque Measurement
Pill Press Force Verification
Ultrasonic Welding Clamp Force
Prosthetic Hip Fatigue Testing
Package Drop Test Machine
Rocket Engine Thrust Stand
Plastic Injection Molding Force Feedback
Automotive Seat Durability Testing
Portable Crane Weighing
Automation Container Filling
Medical Patient Lift
Tank Dispensing
Silo Measurement
Material Force Testing
Model LCF400 is a Pancake Load Cell that has an specific flexure design to resist high extraneous loads. This load cell is manufactured in one-piece . LCF400 load cell is the ideal solution for Fatigue and Endurance Testing where long performance cycles are required. The standard LCF400 Pancake Load Cell model is design with F/F metric threads, is made of Stainless Steel and offer a large capacity ranging from 250 lbs to 5,000 lbs.
The LCF400 utilizes strain gauge technology that offers the highest accuracy (±0.10% Nonlinearity), and low Deflection of 0.002 to 0.005” nominal. The LCF400 Pancake Load Cell can be customize to meet your requirements.
LCF400
Tension and Compression Pancake Load Cell.
Capacities : +/- 250, 500, 1000, 2500, 5000 Lb.
Rated output : ± 2 mV/V.
Non Linearity : < 0.1%.
Material : Stainless steel.
Connector output.
