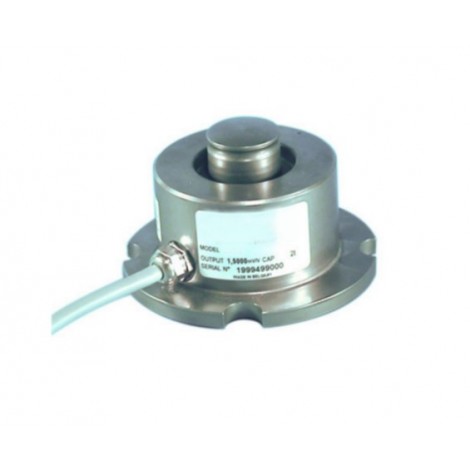

SM1182 : Low profil compression load cell from 0 to 300 Kg, ..., 20 Tonnes
Low profil compression load cell design for press control, Silos, tanks, hoppers, Reactors weighing.
Measuring Range: 0 to 0.3 - 0.5 - 0.75 - 1 - 1.5 - 2 - 3 – 5 – 7.5 – 10 – 15 - 20 Tonnes.
Rated Output: ± 1.5 mV/V.
Non linearity: 0.25%, 0.1%.
Degree of protection: IP67.
Material: Stainless Steel.
Available options : integrated amplifier output , ATEX, high service temperature (150 °C).
Log in to your account to display prices
Login
Login
Applications
> <
Bag Sealer Validation
Arbor Press Verification
Waste Load Measurement
Batch Weighing
Snow Shoes Testing
Robotic Tactile Sensing
Bite Force Measurement Study
SM1182 is a Load Button Load Cell used for Press, or Inline compression applications. The SM1182 model has a robust construction in Stainless Steel, and IP67 protection.
Although Load Button force sensors are traditionally not known for their high accuracy, sm1182 offers a Nonlinearity (up to ±0.25% F.S) and low Deflection.
This Load cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for quick delivery.

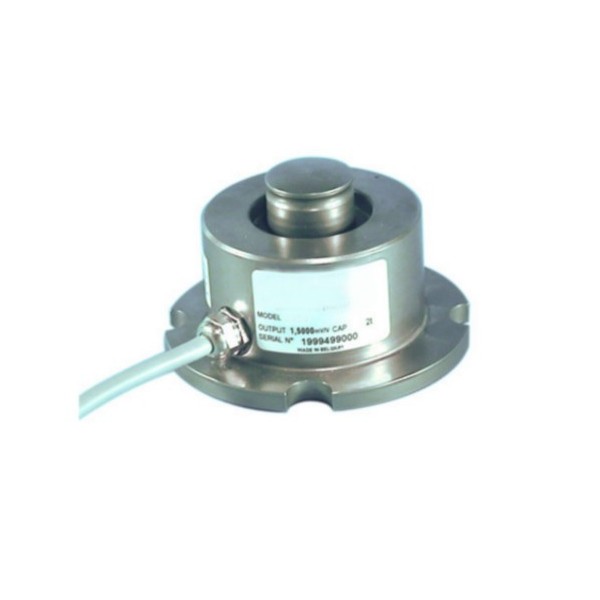

SM1182
Low profil compression load cell design for press control, Silos, tanks, hoppers, Reactors weighing.
Measuring Range: 0 to 0.3 - 0.5 - 0.75 - 1 - 1.5 - 2 - 3 – 5 – 7.5 – 10 – 15 - 20 Tonnes.
Rated Output: ± 1.5 mV/V.
Non linearity: 0.25%, 0.1%.
Degree of protection: IP67.
Material: Stainless Steel.
Available options : integrated amplifier output , ATEX, high service temperature (150 °C).
