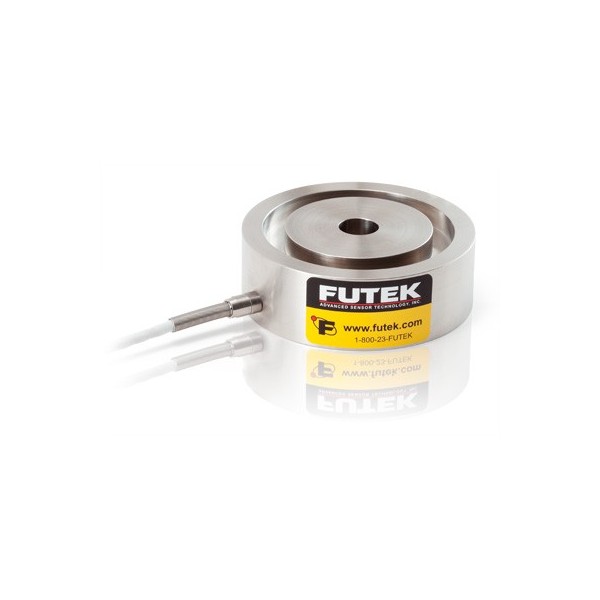

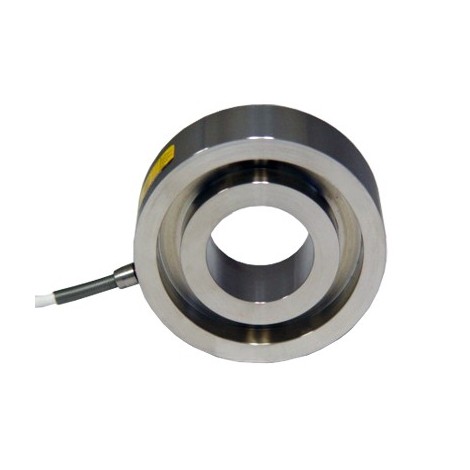

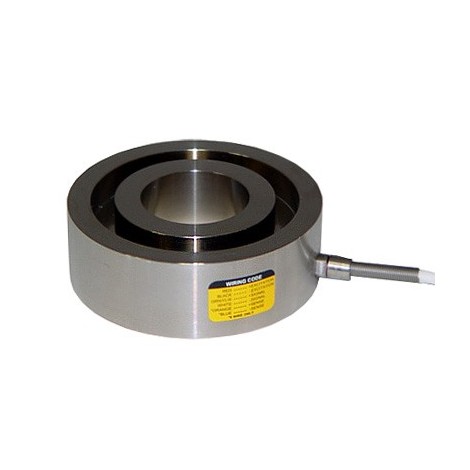

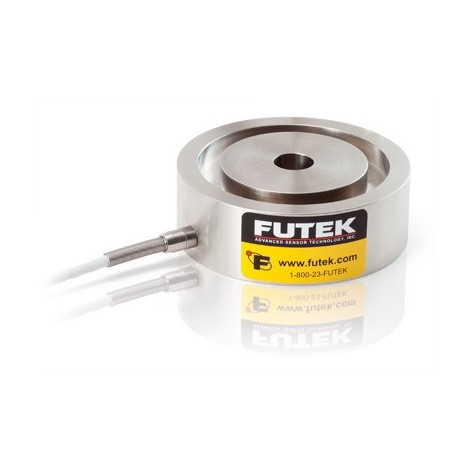

LTH500: Compression Donut Load Cell - 2000 ... 50000 Lb

Capacities : 0 to 2, 3, 5, 7.5, 10, 15, 20, 30, 50 KLb.
Variable inside diameter to specify : 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8', 3/4, 7/8, 1 1/4 ''.
Rated output : 2 mV/V.
Overload : 150% of capacity.
Non Linearity : 0.5%.
Material : Stainless steel.
Teflon Cable output.

Log in to your account to display prices
account_circleSend to a friend
LTH500: Compression Donut Load Cell - 2000 ... 50000 Lb

LTH500: Compression Donut Load Cell - 2000 ... 50000 Lb

Capacities : 0 to 2, 3, 5, 7.5, 10, 15, 20, 30, 50 KLb.
Variable inside diameter to specify : 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2, 9/16, 5/8', 3/4, 7/8, 1 1/4 ''.
Rated output : 2 mV/V.
Overload : 150% of capacity.
Non Linearity : 0.5%.
Material : Stainless steel.
Teflon Cable output.



Applications

> <

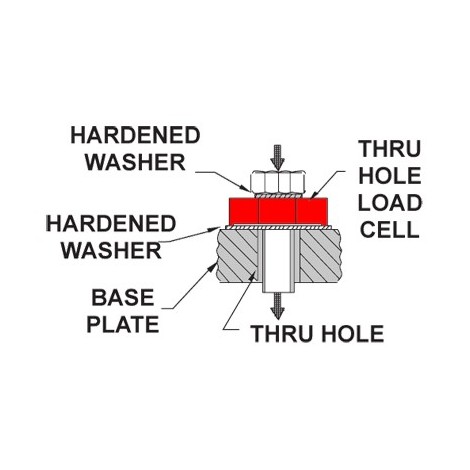

Model LTH500 is a high capacity compression Donut Load Cell built for Press, or Inline applications. The LTH500 Load Cell has a very robust Stainless Steel construction , and offer several I.D. range from 1/8” to 1 1/4”.

The LTH500 Donut Load Cell offers a Nonlinearity of ±0.5% and a Deflection of 0.002” nominal. The standard LTH500 Donut Load Cell comes with 5 points NIST calibration certificate and  can be modified or customized on demand.
