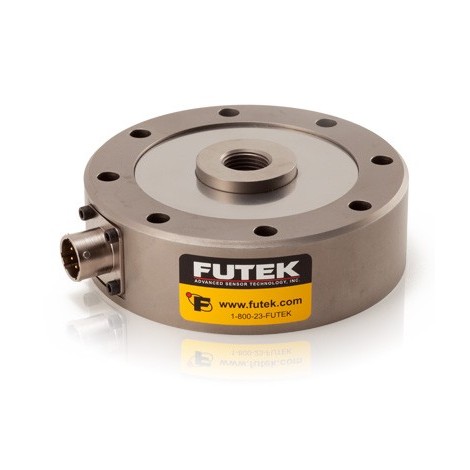

LCF450 -- LCF550 : Tension Compression Pancake Load Cell +/- 250 Lb .... +/- 400 000 Lb
- Tension and Compression Pancake Load Cell.
- Capacities :
- - LCF450 : +/- 250, 300, 500, 1000, 2000, 3000, 5000, 10 000 Lb.
- - LCF500 : +/- 20 000, 30 000, 50 000 Lb.
- - LCF550 : +/- 100 000 Lb.
- Rated output : ± 2 mV/V, ± 4 mV/V.
- Non Linearity : 0.1%, 0.2%.
- Material : Aluminium and Stainless steel.
- Connnector output.
Log in to your account to display prices
Login
Login
Applications
> <
Aircraft Structural Testing
Press fit force determination of an assembly
What is the clamping force in injection molding?
Shackle pin load cell
Dual Tank Level Controller
189 Crane Load Cell
342 Load Cell Torque Measurement
Pill Press Force Verification
Ultrasonic Welding Clamp Force
Prosthetic Hip Fatigue Testing
Package Drop Test Machine
Rocket Engine Thrust Stand
Plastic Injection Molding Force Feedback
Automotive Seat Durability Testing
Automation Container Filling
Medical Patient Lift
Portable Crane Weighing
Tank Dispensing
Silo Measurement
Material Force Testing

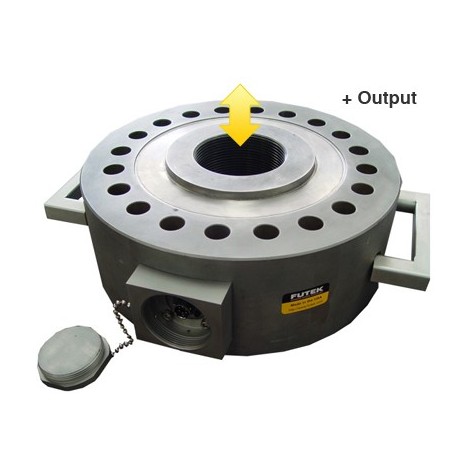

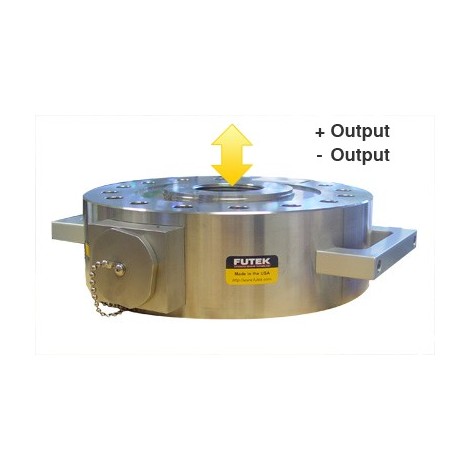

LCF450-- LCF700 are Pancake Load Cell designed for tension and compression applications, available in Anodized Aluminum for lower capacities and Stainless Steel for higher capacities with options such as Fatigue Rating, and Amplified Version.
The Pancake Load Cell offers high accuracy and low Deflection. The standard LCF450 -- LCF700 strain gauge Load Cell can be modified to meet your requirements.
LCF450 / LCF700
- Tension and Compression Pancake Load Cell.
- Capacities :
- - LCF450 : +/- 250, 300, 500, 1000, 2000, 3000, 5000, 10 000 Lb.
- - LCF500 : +/- 20 000, 30 000, 50 000 Lb.
- - LCF550 : +/- 100 000 Lb.
- Rated output : ± 2 mV/V, ± 4 mV/V.
- Non Linearity : 0.1%, 0.2%.
- Material : Aluminium and Stainless steel.
- Connnector output.
