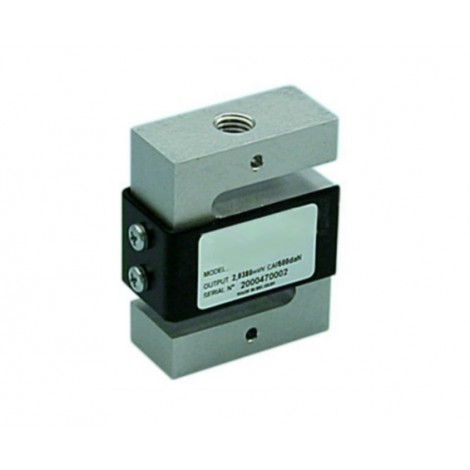

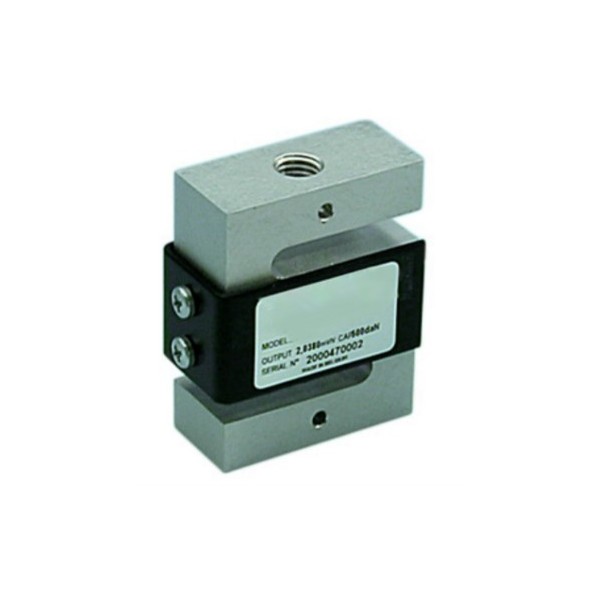

SM5424 : S Beam Load Cell from +/-10 Kg, ..., 1 Tonne
Tension & compression S Beam Load Cell.
Capacities : +/- 10, ..., 1000 daN.
Rated output : ± 2 mV/V.
Non Linearity : 0.1, 0.03, 0.02 %.
Protection IP65.
Material: Anodized aluminium alloy.
Available options : integrated amplifier output 10V or 4...20 mA, ATEX, high service temperature (150 °C).
Log in to your account to display prices
Login
Login
Applications
> <
342 Load Cell Torque Measurement
Automotive Touchscreen Haptic Feedback
Medical Valve Sensors: TAVR Fatigue Testing
Robotic Leg Rehabilitation Device
USB Insertion/Extraction Motorized Test
Wire Bond Testing
Spring Testing System
Medical Guidewire Test
Trackpad / Touchpad Test Stand
Catheter Force Measurement
Reliability Test Stand
Catheter Track Force Test
Multihead Weigher
Automation Container Filling
OEM Test Stand
Syringe Test Stand
Linear Test Stand
Wire Tension Measurement
DNA Synthesis
Behavioral Phenotyping
Medical Bag Weighing

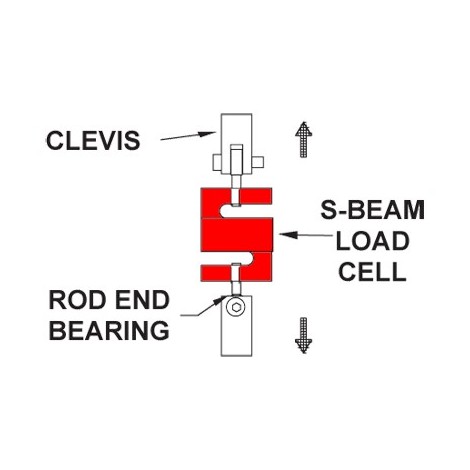

- The SM5424 is a tension compression S Beam Load Cell designed for use in platforms, silos, or scales. The Standard SM5424 S Beam Load Cell model has Female/Female threads, comes in Anodized Aluminum construction (10 Kg – 1000 Kg), and utilizes metal foil strain gauge technology.
- This Cell can be modified or customized to meet your requirements and most capacities are in our inventory, making them available for quick delivery.
SM5424
Tension & compression S Beam Load Cell.
Capacities : +/- 10, ..., 1000 daN.
Rated output : ± 2 mV/V.
Non Linearity : 0.1, 0.03, 0.02 %.
Protection IP65.
Material: Anodized aluminium alloy.
Available options : integrated amplifier output 10V or 4...20 mA, ATEX, high service temperature (150 °C).
