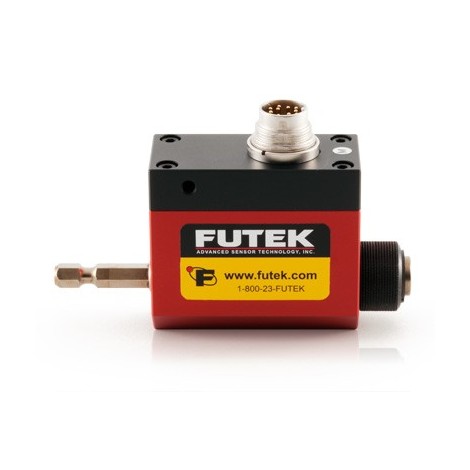

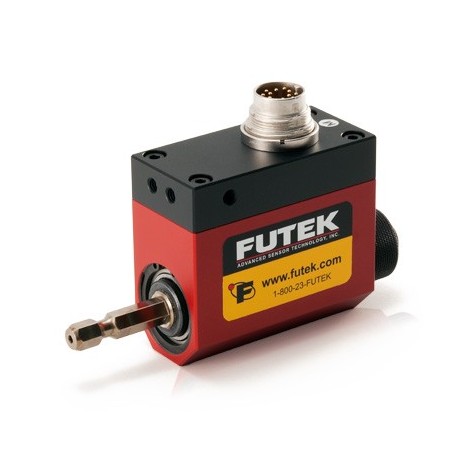

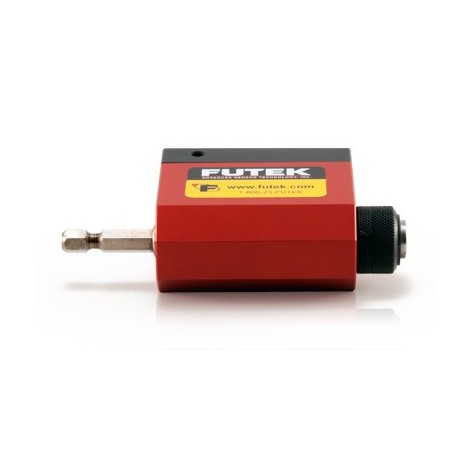

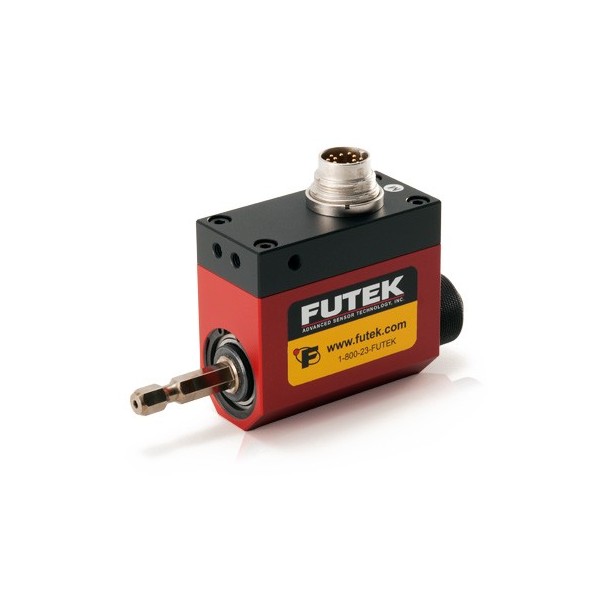

TRH605: Rotary Torque Sensor Non Contact Hex Drive with Encoder - +/- 0.5 ... +/- 18 Nm
Non-Contact Hex Drive Rotary Torque Sensor with Encoder.
Capacities : 0.5, 1, 2, 6, 12, 18 Nm.
Rated output : +/- 5 mV/V.
Encoder excitation: 5 VDC.
Encoder excitation: 5 VDC.
Non Linearity : 0.2%.
Encoder output: TTL.
Rotational Speed: 7000 RPM.
Log in to your account to display prices
Login
Login
Applications
> <
Electrical Motor Efficiency
Gym Workout Training Weight Sensors
Hinge Fatigue Testing
Stanford Solar Car Dyno
Catheter Torque Test
Industrial Robotic Automation
Nut Runner Force/Torque
Torque motor test stand
Power Tool Measurement
FUTEK’s Rotary Torque Sensor - Non Contact Hex Drive with Encoder offers a unique solution for torque auditing applications. The TRH605 Rotary Torque Sensor - Non Contact Hex Drive with Encoder is available in a wide capacity range and utilizes strain gauge technology.
TRH605
Non-Contact Hex Drive Rotary Torque Sensor with Encoder.
Capacities : 0.5, 1, 2, 6, 12, 18 Nm.
Rated output : +/- 5 mV/V.
Encoder excitation: 5 VDC.
Encoder excitation: 5 VDC.
Non Linearity : 0.2%.
Encoder output: TTL.
Rotational Speed: 7000 RPM.
