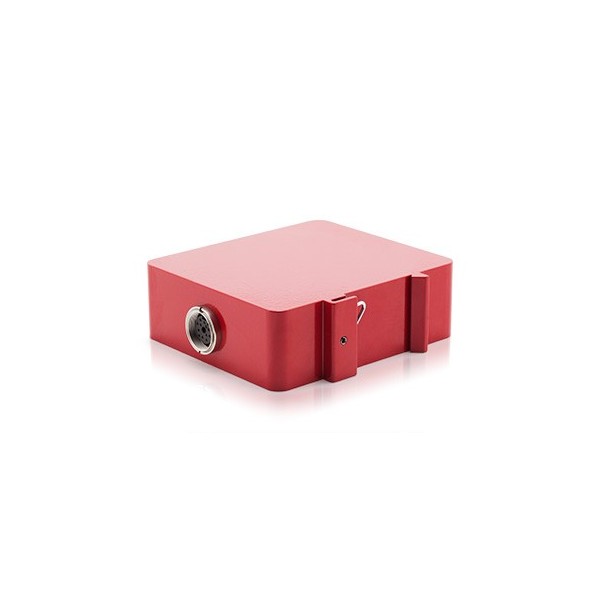

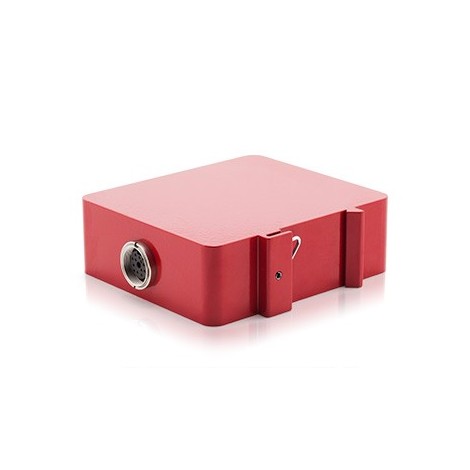

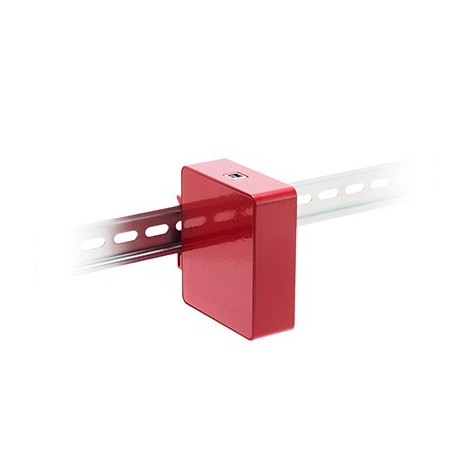

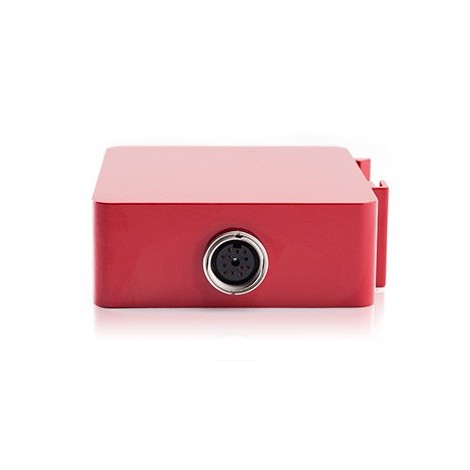

USB520 External USB Kit (Amplified/Non Amplified + Encoder Input).
- External USB Kit (Amplified/Non Amplified + Encoder Input).
- 5 to 4800 sample per second selectable rate.
- High accuracy (±0.001%).
- Input range up to ±400mV/V (Strain Gauge), ±10VDC, up to 30 mA (Amplified Input).
- Output for encoder purpose.
- Selectable 5, 9, 10, 12, 15, 18, 20 and 24 VDC for sensor power.
- Speed/Angle/Power Measurement.
Log in to your account to display prices
Login
Login
Applications
> <
Center of gravity measurement
Electrical Motor Efficiency
Robot Gripping Force Measurement
UAV Launcher Force
Medical Valve Sensors: TAVR Fatigue Testing
Package Drop Test Machine
Suspension System Performance Validation
Plastic Injection Molding Force Feedback
Hinge Fatigue Testing
Stanford Solar Car Dyno
Bag Sealer Validation
Robotic Leg Rehabilitation Device
USB Insertion/Extraction Motorized Test
Automotive Seat Durability Testing
Medical Guidewire Test
Wire Bond Testing
Spring Testing System
Wind Tunnel Testing
Catheter Torque Test
Trackpad / Touchpad Test Stand
Power Window Pinch Test
Laparoscopic Calibration
Arbor Press Verification
Reliability Test Stand
Landing Gear Drop Test
Catheter Track Force Test
Biomedical Research
Snow Shoes Testing
Portable Crane Weighing
Multihead Weigher
Automation Container Filling
Helicopter Cyclic Sensors
Batch Weighing
Industrial Robotic Automation
Medical Patient Lift
OEM Test Stand
Jet Parachute Deployment
Toggle Clamp
Syringe Test Stand
Tank Dispensing
Silo Measurement
Medical Bag Weighing
Linear Test Stand
Industrial Wire Tension Measurement
Hydraulic/Pneumatic Press Force
Bolt Fastening
Wire Tension Measurement
Robotic Tactile Sensing
DNA Synthesis
Bite Force Measurement Study
Behavioral Phenotyping
Material Force Testing
Torque motor test stand
Power Tool Measurement
Nut Runner Force/Torque

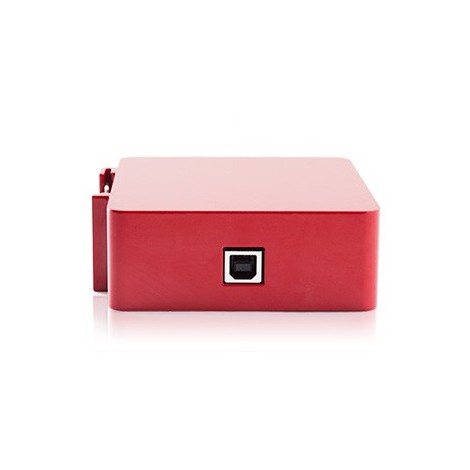

The new USB520 - External USB Kit (Amplified/Non Amplified + Encoder Input) module eliminates the need for power supply and display equipment. The module is supplied by PC power through a USB Cable, providing excitation voltage for the sensor. The analog output voltage of the sensor is then digitized and processed by a microprocessor using the integrated high resolution (24 bits) analogue to digital converter (ADC).
The on-board USB device allows the microprocessor to communicate with the PC by means of the USB link. The USB integration works hand in hand with SENSIT Test and Measurement software, which allows users to monitor the actual output of the sensor in real time. This is calculated based on the calibration values stored inside the on-board memory. The easy plug and play gives you the power to monitor the sensor output and enjoy measurement that is less affected by noise, temperature variation and excitation.
USB520
- External USB Kit (Amplified/Non Amplified + Encoder Input).
- 5 to 4800 sample per second selectable rate.
- High accuracy (±0.001%).
- Input range up to ±400mV/V (Strain Gauge), ±10VDC, up to 30 mA (Amplified Input).
- Output for encoder purpose.
- Selectable 5, 9, 10, 12, 15, 18, 20 and 24 VDC for sensor power.
- Speed/Angle/Power Measurement.
