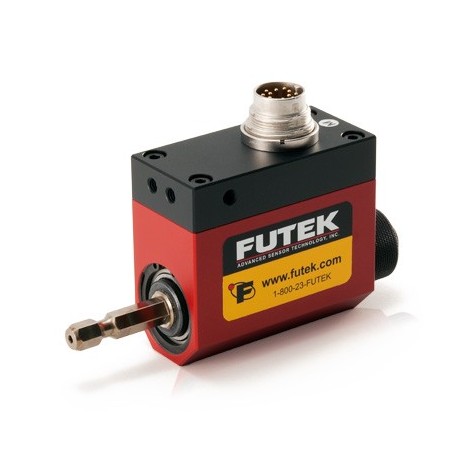

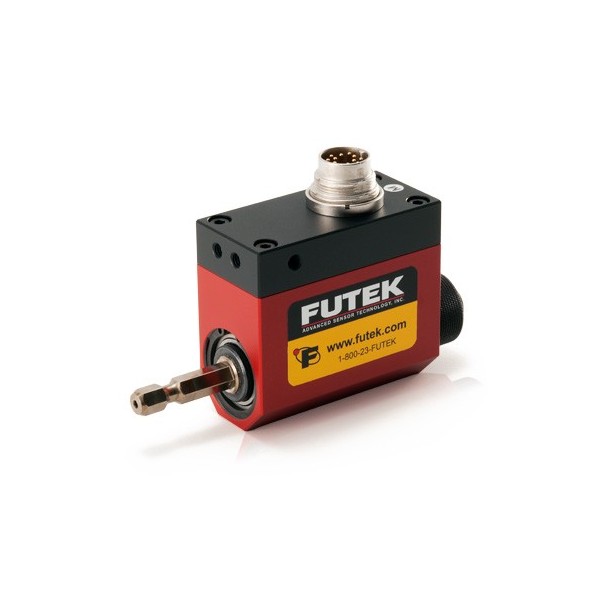

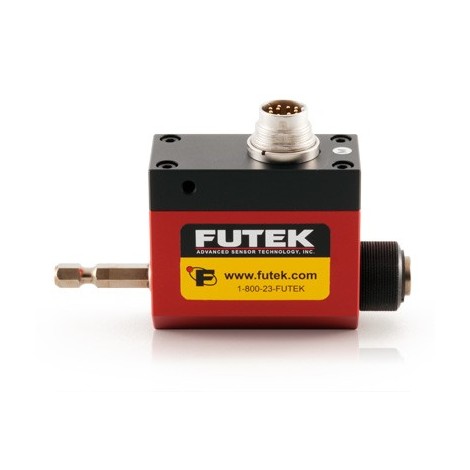

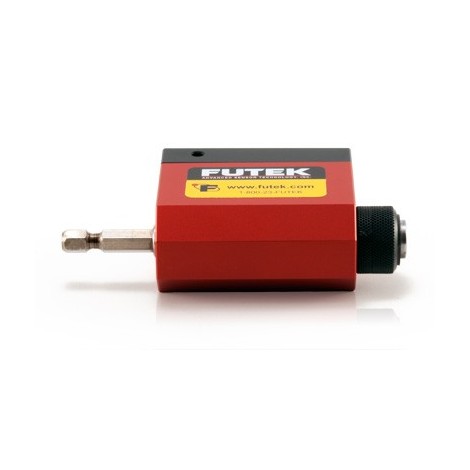

TRH300: Rotary Torque Sensor Hex Drive - +/- 2 ... +/- 20 Nm
- Hex Drive Rotary Torque Sensor.
- Capacities : 2, 6, 12, 20 Nm.
- Rated output : 1 mV/V (2Nm) & 2mV/V (6-20Nm).
- Non Linearity : 0.2%.
- Excitation: 5 to 11 VDC.
- Rotational Speed: 3000 RPM
Log in to your account to display prices
Login
Login
Applications
> <
Gym Workout Training Weight Sensors
Hinge Fatigue Testing
Stanford Solar Car Dyno
Catheter Torque Test
Industrial Robotic Automation
Nut Runner Force/Torque
Torque motor test stand
Power Tool Measurement
TRH300 - Rotary Torque Sensor - Hex Drive offers a unique solution for torque auditing applications. The TRH300 Rotary Torque Sensor - Hex Drive is available in a wide capacity range and utilizes strain gauge technology.
For those who are a looking for a complete system solution, FUTEK can provide both signal conditioned displays or our VCal Portable System. FUTEK’s VCal Portable System brings an easy-to-use system verification directly to the customer making it ideal for on-site verification and calibration of your products.
TRH300
- Hex Drive Rotary Torque Sensor.
- Capacities : 2, 6, 12, 20 Nm.
- Rated output : 1 mV/V (2Nm) & 2mV/V (6-20Nm).
- Non Linearity : 0.2%.
- Excitation: 5 to 11 VDC.
- Rotational Speed: 3000 RPM
