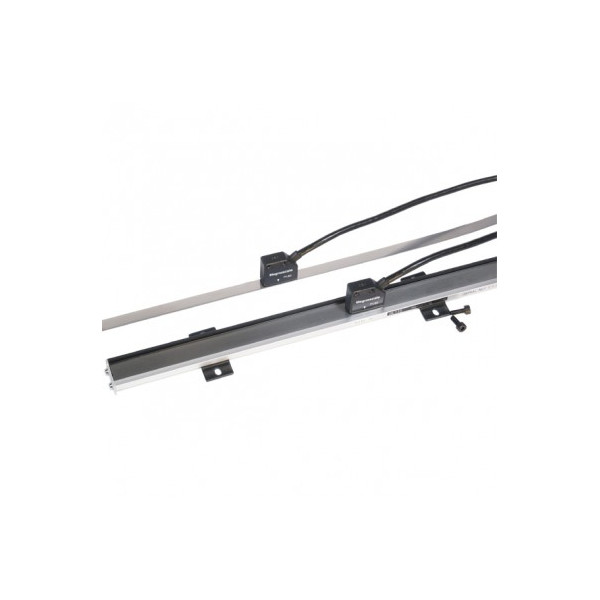

Reading head PL81 PL82 and digital magnetic scale Series SL110, SL130 - MAGNESCALE

- Accuracy up to 52 µm (with FS 200 mm)
- Resolution 10, 20, 25, 50, 100 μm selectable
- Output signal PL81: open collector
- Output signal PL82: A/B TTL-output (RS422)
- Displacement speed up to 300 m/min
- Protection class IP67 (Reading head)
- Working temperature 0...+45°C
- Interpolator integrated in reading head
- resistant against dirt, water, oil, vibrations  and shock
- SL110: Profile, extremely robust, up to 2000 mm  length
- SL130: flexible magnetic tape scale to glue on, up to  30.000 mm length

Log in to your account to display prices
account_circleSend to a friend

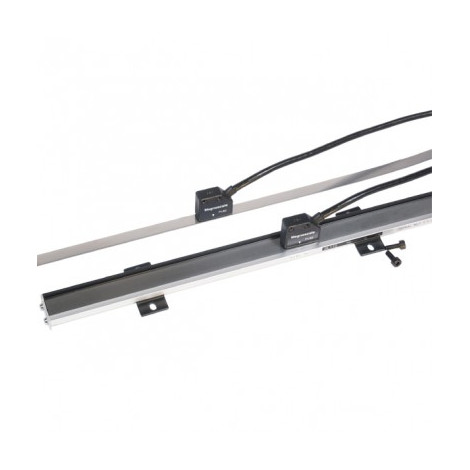

Reading head PL81 PL82  and digital magnetic scale Series SL110, SL130 - MAGNESCALE

Reading head PL81 PL82 and digital magnetic scale Series SL110, SL130 - MAGNESCALE

- Accuracy up to 52 µm (with FS 200 mm)
- Resolution 10, 20, 25, 50, 100 μm selectable
- Output signal PL81: open collector
- Output signal PL82: A/B TTL-output (RS422)
- Displacement speed up to 300 m/min
- Protection class IP67 (Reading head)
- Working temperature 0...+45°C
- Interpolator integrated in reading head
- resistant against dirt, water, oil, vibrations  and shock
- SL110: Profile, extremely robust, up to 2000 mm  length
- SL130: flexible magnetic tape scale to glue on, up to  30.000 mm length



Applications

> <
