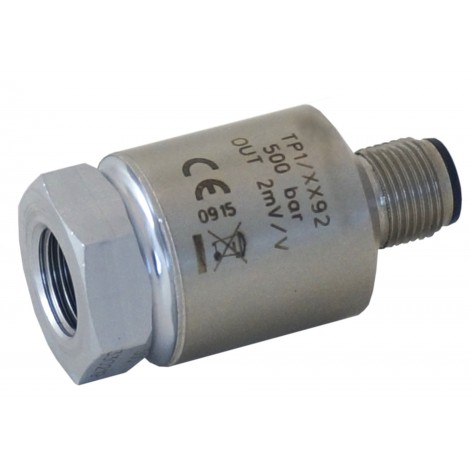

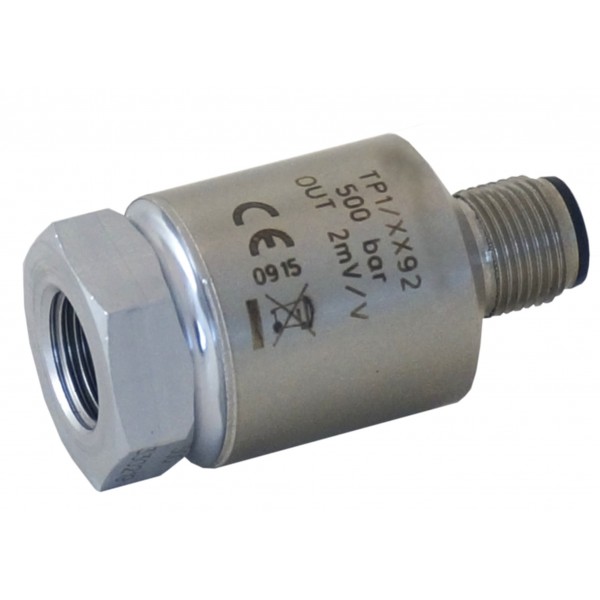

SM-TP1: pressure transducer - From 10, ..., 700 bars
Pressure transducers for RELATIVE and ABSOLUTE measures.
Nominal pressures from 10 bar to 700 bar.
Linearity and hysteresis 0,2 or 0,50%.
Output 2mV/V, 0,5-5,5 Volt.
Protection IP67.
Process coupling 1/4" GAS Female.
Log in to your account to display prices
Login
Login
Applications
> <
Supersonic Tunnel Pressure
189 Crane Load Cell
Differential Pressure Application
Desalination System Monitoring
The pressure transmitters SM-TP1 series are characterized by high reliability, long-term stability and high mechanical strength.
The sensitive part in contact with pressure, is entirely made of 17-4 PH stainless steel resistant to corrosion.
SM-TP1
Pressure transducers for RELATIVE and ABSOLUTE measures.
Nominal pressures from 10 bar to 700 bar.
Linearity and hysteresis 0,2 or 0,50%.
Output 2mV/V, 0,5-5,5 Volt.
Protection IP67.
Process coupling 1/4" GAS Female.
