LLB450: Miniature Load Cell (High Capacity) - 5000 Lb ... 10000 Lb
Load Button Load Cell.
Capacities : 0 to 5000, 10 000 Lb.
Rated output : 1.5 - 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
Conductor Braided Shielded Teflon Cable.
Log in to your account to display prices
Login
Login
Applications
> <
What Sensors Do Humanoid Robots Have ?
Sensors used in 3D Printers
Battery Manufacturing Automation and Force Sensors
186 Bearing Load Measurement
Gym Workout Training Weight Sensors
341 Vise Clamping Force Test
Bag Sealer Validation
Laparoscopic Calibration
Arbor Press Verification
Reliability Test Stand
Waste Load Measurement
Batch Weighing
Snow Shoes Testing
Robotic Tactile Sensing
Bite Force Measurement Study
Tube Expansion Measurement

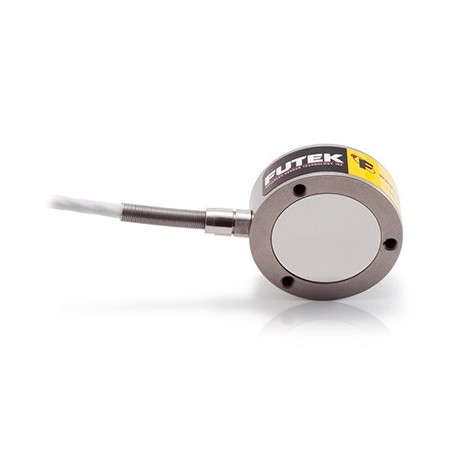

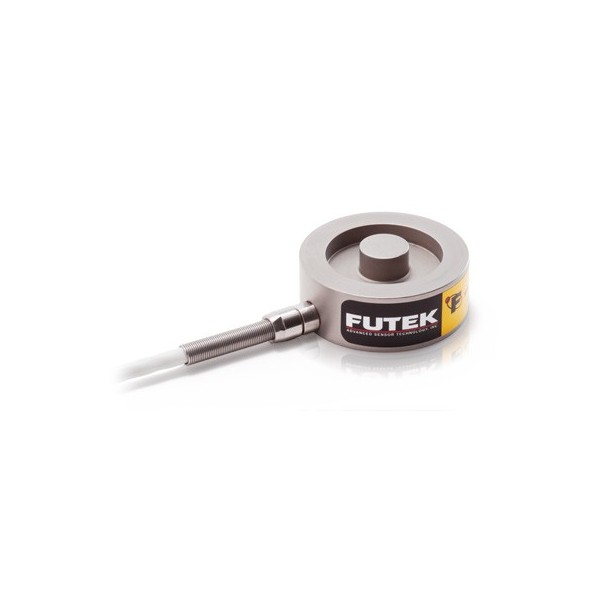

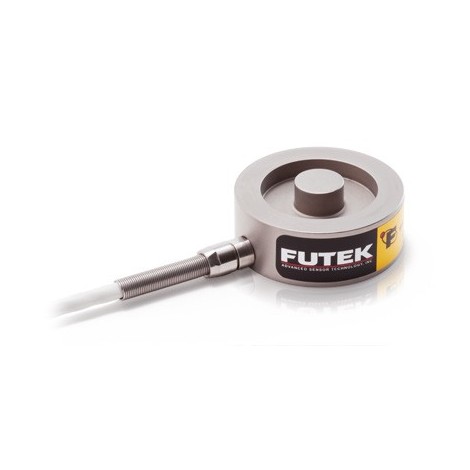

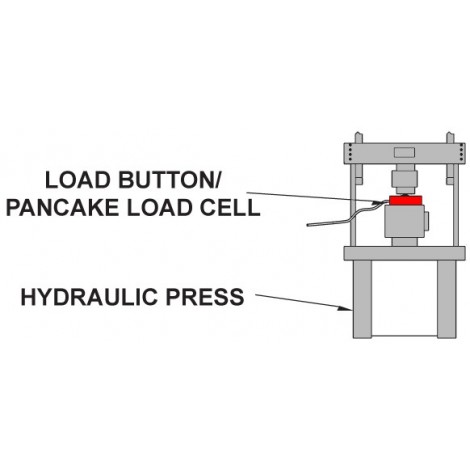

LLB450 is a Load Button Load Cell with Threaded Mounting Holes built for Press, or Inline compression applications. The standard LLB450 Load Button Load Cell model has a very robust construction available in 17-4 Stainless Steel, with a 1.50” outside diameter and a 10 feet long 24 AWG 4 conductor shielded Teflon cable. You will also find options for external matched output readily available.
Although Load Button Load Cells are traditionally not known for their high accuracy, FUTEK engineers have dispelled this concept by continuously improving the accuracy of this product. The Load Button Load Cell offers high accuracy. It has Nonlinearity of ±0.5% and Deflection of 0.003” nominal. The standard LLB450 Load Button Load Cell can be modified or customized to meet your requirements
LLB450
Load Button Load Cell.
Capacities : 0 to 5000, 10 000 Lb.
Rated output : 1.5 - 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
Conductor Braided Shielded Teflon Cable.
