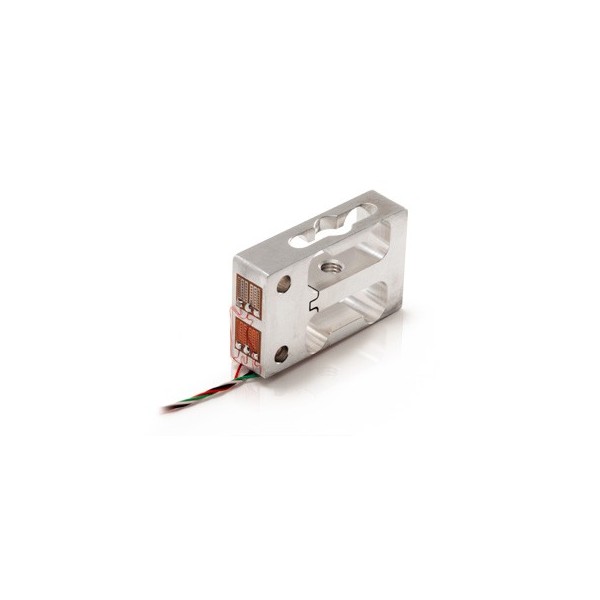

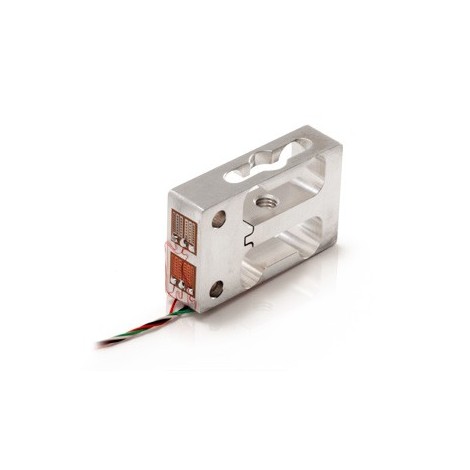

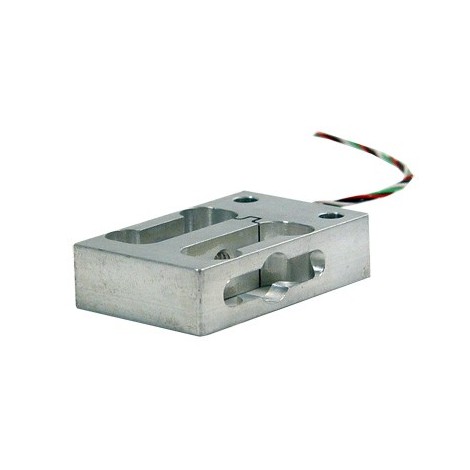

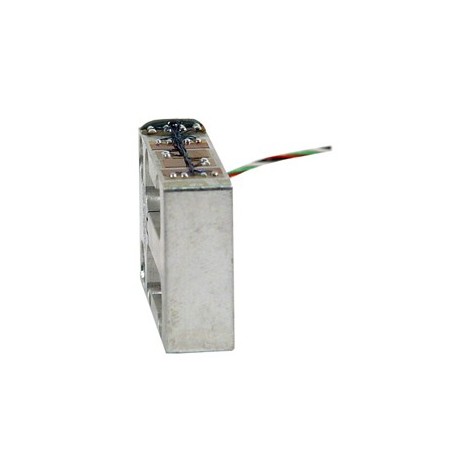

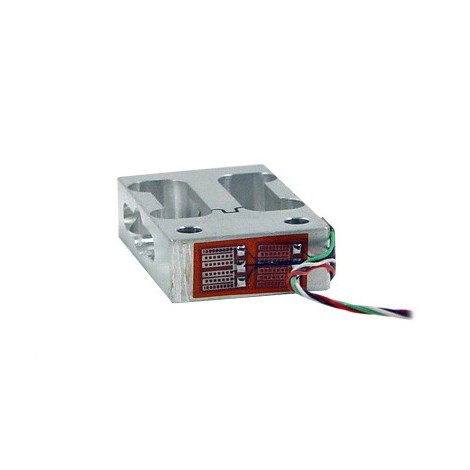

LSM250: Tension Compression Load Cell +/- 0.25 ... 1 Lb

Tension & Compression Parallelogram Load Cell.
Capacities : +/- 0.25 ... 1 Lb.
Rated output : ± 2 mV/V.
Non Linearity : 0.05%.
Safe Overload.
Material: Aluminum and Stainless Steel.

Log in to your account to display prices
account_circleSend to a friend
LSM250: Tension Compression Load Cell +/- 0.25 ... 1 Lb

LSM250: Tension Compression Load Cell +/- 0.25 ... 1 Lb

Tension & Compression Parallelogram Load Cell.
Capacities : +/- 0.25 ... 1 Lb.
Rated output : ± 2 mV/V.
Non Linearity : 0.05%.
Safe Overload.
Material: Aluminum and Stainless Steel.



Applications

> <

The LSM250 Precision Load Cell offers an impressive lightweight design with an easy side mounting feature making it ideal for OEM applications. Utilized in both Tension and Compression, the Compact Precision Load Cell has a length of 1.49”, width of 0.38” and with a height of 0.93” it is well suited for tight spaces. The LSM250 Precision Load Cell is offered in 17-4PH Stainless Steel (1/4 - 1 lb) and it has a 6” 29 AWG 4 color coded Teflon lead wire.
Although the model is specifically built for low capacity applications, a built in overload protection provides the unit over 10 times the capacity that could take place during installation.
