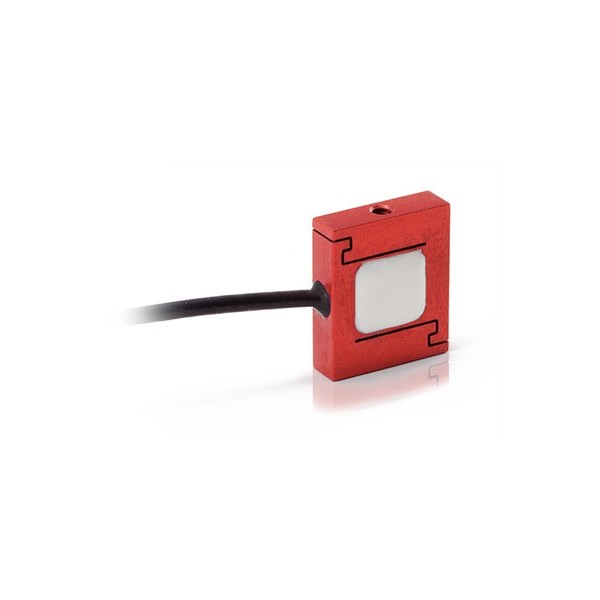

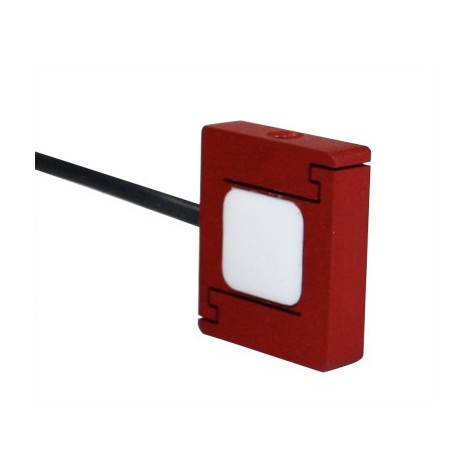

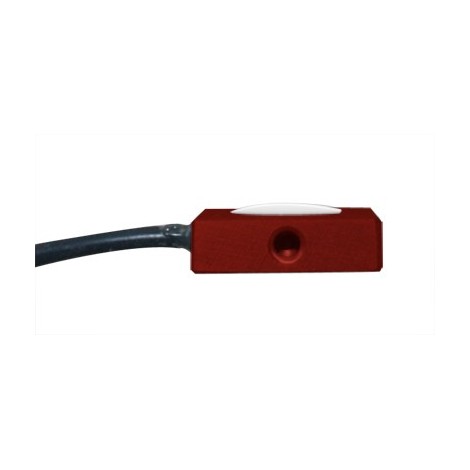

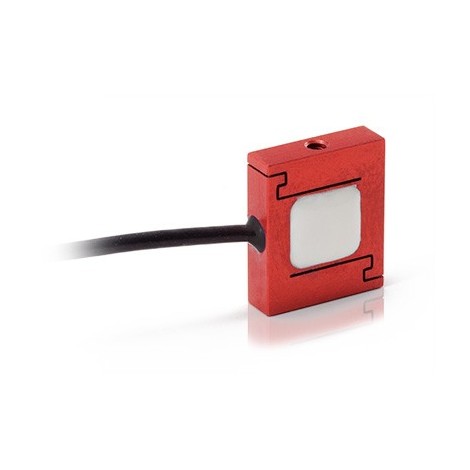

LSB210: S-Beam Load Cell Submersible Version
- S-Beam tension compression Load Cell Submersible.
- Capacities : 100 g, 250 g, 1 Lb, 2 Lb, 5 Lb, 10 Lb, 25 Lb, 50 Lb, 100 Lb.
- Rated output : 2 mV/V.
- Non Linearity :1, 2, 3%.
- Material : Aluminium (Up to 10 Lb) then stainless steel.
Log in to your account to display prices
Login
Login
Applications
> <
Center of gravity measurement
TAVR Valve Durability Testing
342 Load Cell Torque Measurement
Fluid Flow Rate Measurement
Exoskeleton for Paraplegics
Precision Wire Tensioner
Automotive Touchscreen Haptic Feedback
Medical Valve Sensors: TAVR Fatigue Testing
Robotic Leg Rehabilitation Device
Robotic Glove Rehabilitation Device
USB Insertion/Extraction Motorized Test
Medical Guidewire Test
Wire Bond Testing
Spring Testing System
Trackpad / Touchpad Test Stand
Catheter Force Measurement
Reliability Test Stand
Catheter Track Force Test
Multihead Weigher
Automation Container Filling
OEM Test Stand
Syringe Test Stand
Linear Test Stand
Wire Tension Measurement
DNA Synthesis
Behavioral Phenotyping
Medical Bag Weighing

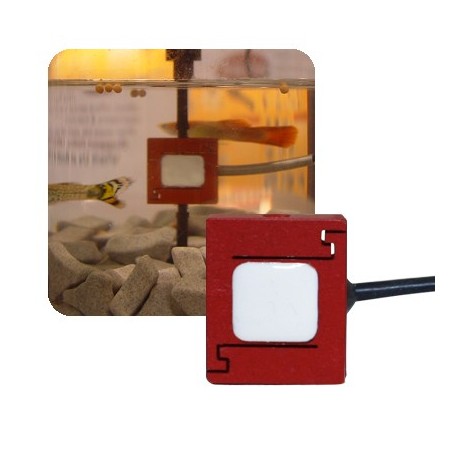

The LSB210 is a Submersible Jr. S-Beam Load Cell. This load cell is capable of servicing numerous applications industry wide where protection from liquids is required. This product offers a perfect mixture of size, accuracy and the assurance of an overload protection. The LSB210 Submersible Miniature S-Beam Load Cell is available in 100g to 100lbs (1N – 445N) capacities.
LSB210
- S-Beam tension compression Load Cell Submersible.
- Capacities : 100 g, 250 g, 1 Lb, 2 Lb, 5 Lb, 10 Lb, 25 Lb, 50 Lb, 100 Lb.
- Rated output : 2 mV/V.
- Non Linearity :1, 2, 3%.
- Material : Aluminium (Up to 10 Lb) then stainless steel.
