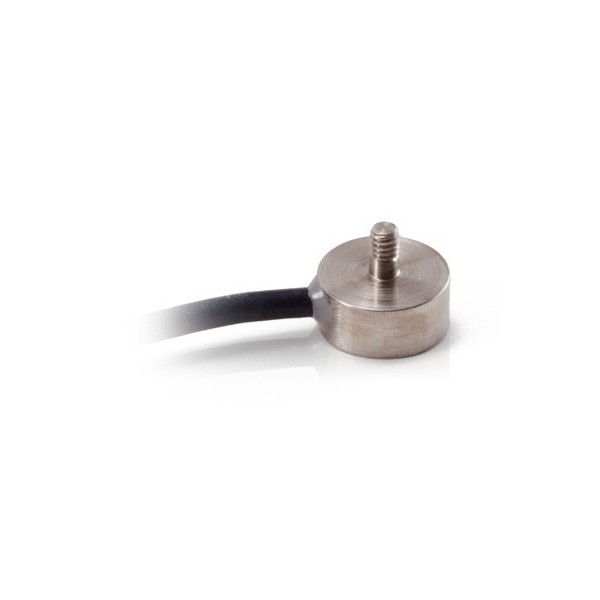

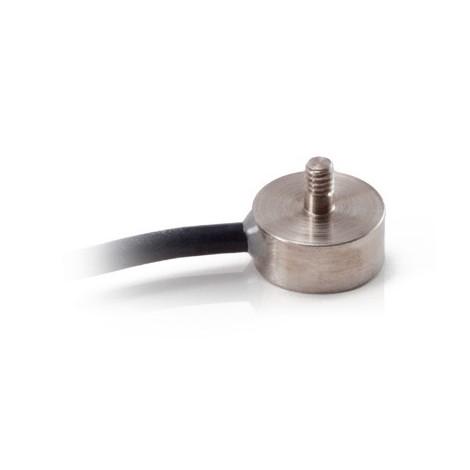

LLB210: Miniature Load Cell Button

Subminiature Threaded Load Button.
Capacities : 0 to 10, 25, 50 Lb.
Rated output : 1.5 - 2 mV/V.
Non Linearity : 0.5%.
Material : Stainless steel.
Cable output.

Add to quote

Send to a friend

Applications

> <

What Sensors Do Humanoid Robots Have ?

Sensors used in 3D Printers

Battery Manufacturing Automation and Force Sensors

186 Bearing Load Measurement

Gym Workout Training Weight Sensors

Bag Sealer Validation

Laparoscopic Calibration

Arbor Press Verification

Reliability Test Stand

Batch Weighing

Snow Shoes Testing

Robotic Tactile Sensing

Bite Force Measurement Study

Tube Expansion Measurement

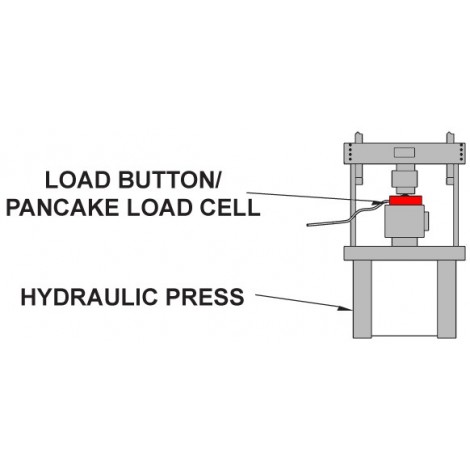

Model LLB210 is a Miniature Load Button (Threaded) built for Press, or Inline compression applications. The standard LLB210 Miniature Load Button (Threaded) model has a very robust construction available in 17-4 Stainless Steel, with a 0.38” outside diameter and a 10 feet long 29 AWG 4 conductor shielded Teflon cable. You will also find options for external matched output readily available.

Although Load Button Load Cells are traditionally not known for their high accuracy, FUTEK engineers have dispelled this concept by continuously improving the accuracy of this product. The Miniature Load Button (Threaded) offers high accuracy and high stiffness. It has Nonlinearity of ±0.5% and Deflection of 0.002” nominal.

Reference LLB210
